PI4B Mini Tower NAS Acce

PACKAGE CONTENT

Weight: 0.381 kg

PI4B Mini Tower NAS Acce x1

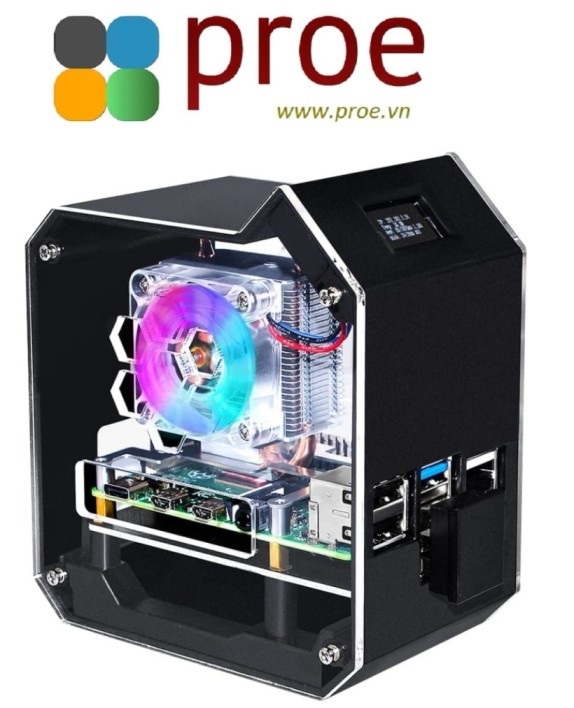

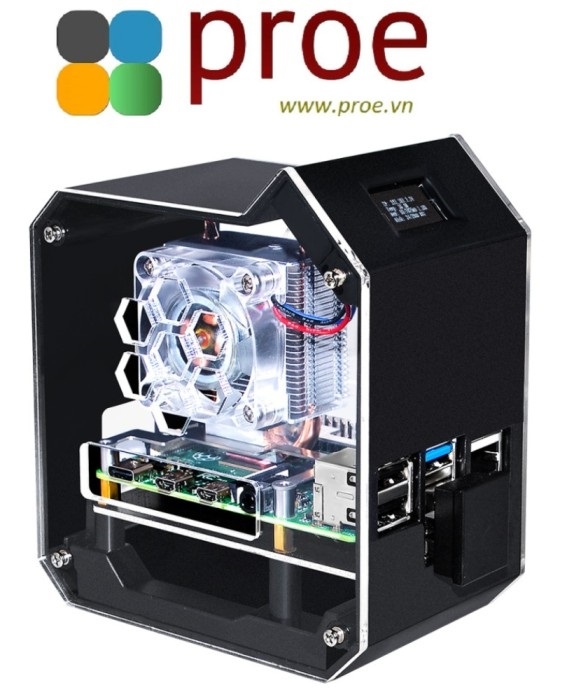

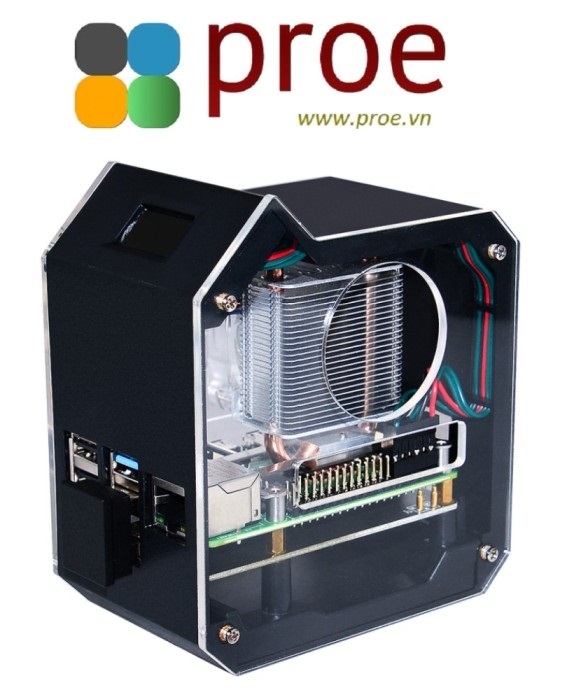

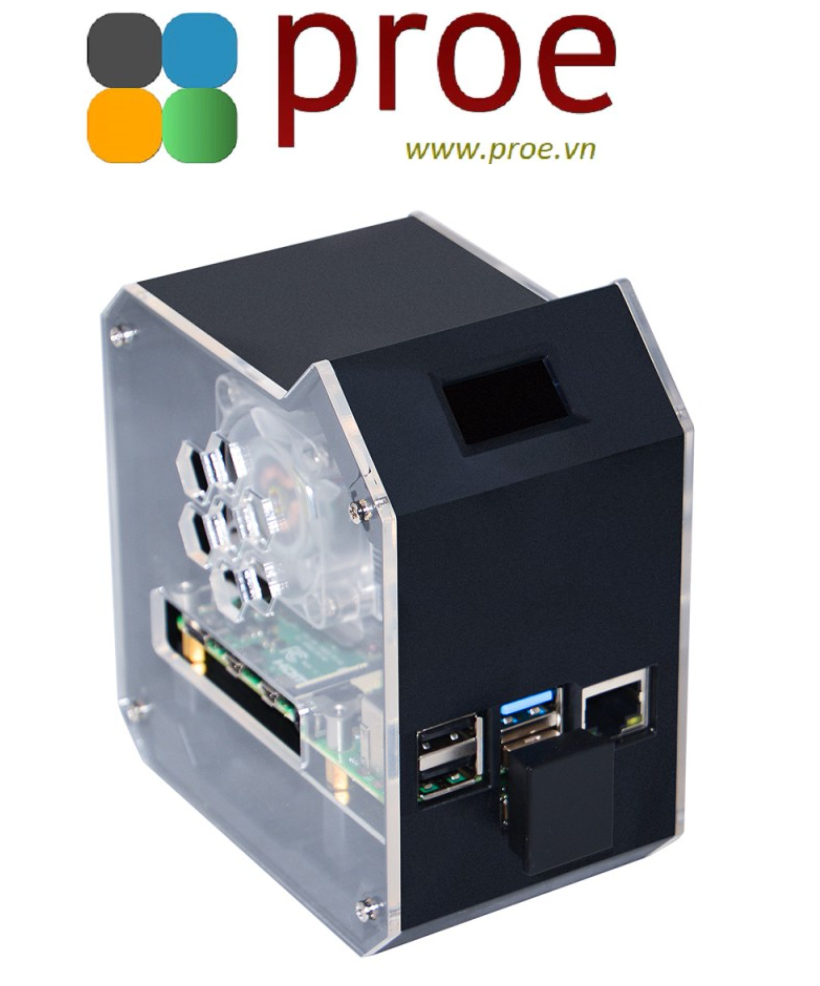

Mini Tower NAS Kit For Raspberry Pi 4B, Support Up To 2TB M.2 SATA SSD, Strong Heat Dissipation, OLED Screen Display

Dedicated Mini Tower NAS Kit for Raspberry Pi 4B, including M.2 SATA SSD Expansion Board, ICE Tower Cooler, Mini Tower Case, 0.96inch OLED, and GPIO Edge Extension header. It can perfectly match your Raspberry Pi 4B and can be assembled into a mini and good looking Desktop NAS, supports up to 2TB M.2 NGFF SSD, with an excellent cooling system, OLED screen, cool RGB LED light, speed-adjustable PWM fan, and 40PIN GPIO extension header.

* Raspberry Pi 4B is NOT included.

Features At A Glance

• Only compatible with Raspberry Pi 4B
• ABS material case and two transparent acrylic side panels
• With 0.96 inch OLED screen already mounted on the case, 28 x 64 pixels, default I2C address: 0x3C
• M.2 SATA SSD 2280/2260/2240 mass storage adapter board, supports up to 2TB M.2 SATA SSD

* specific driver is required for the RGB light on fan and LED light on OLED screen driver board, and OLED screen needs to be enabled to display information.
M.2 SATA SSD 2280 mass storage device should be purchase separately, and the expansion board dose NOT support NVME SSD.

M.2 SATA SSD Expansion Board
Expand The Mass Storage For Your Pi

5mm Copper Tube
Super Heat Dissipation

Display System Information On OLED

0.96″ OLED With RGB LED

More Details

Front Side

Selection Guide

How To Install

Resources & Services

WIKI: www.waveshare.com/wiki/PI4B_Mini_Tower_NAS_Acce
