Low-Profile CPU Cooling Fan for Raspberry Pi 4B/3B+/3B, with Aluminum Alloy Bracket

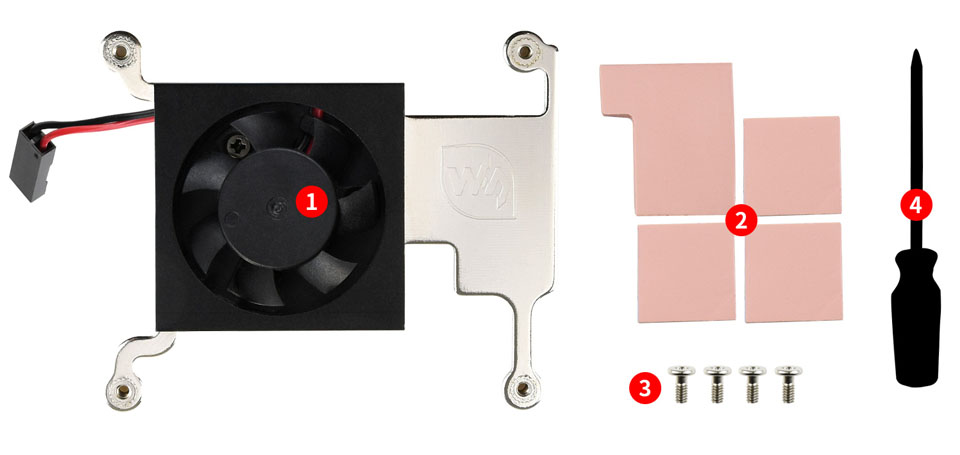

PACKAGE CONTENT

Weight: 0.054 kg

1. PI-FAN-3007 x1
2. Silicone thermal tape x4
3. Screw x4
4. Screwdriver x1

DESCRIPTION

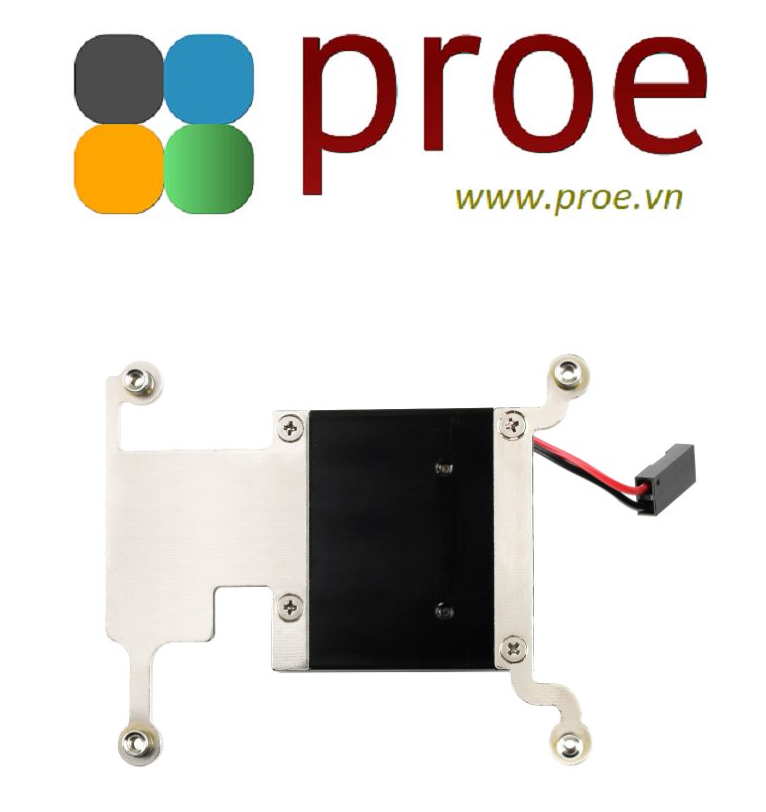

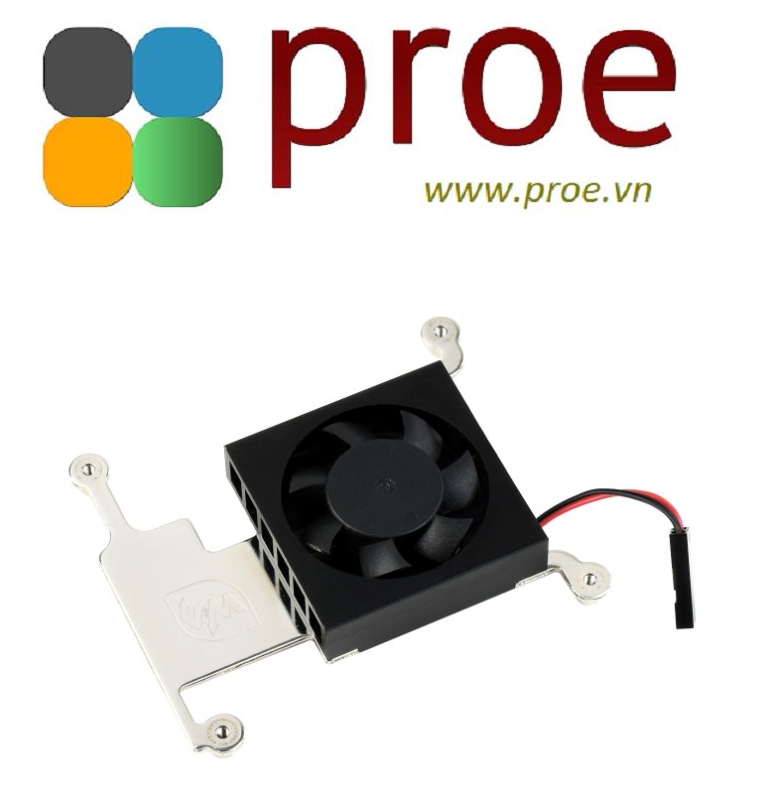

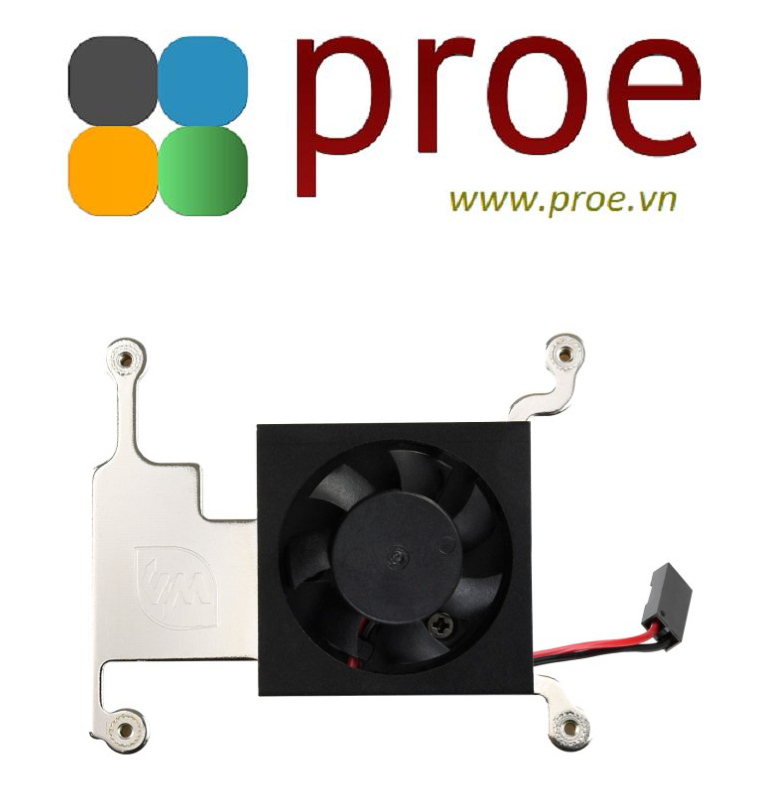

Low-Profile CPU Cooling Fan For Raspberry Pi 4B/3B+/3B, With Aluminum Alloy Bracket

CPU COOLING FAN FOR RASPBERRY PI

Low Noise, Better Cooling

Specifications

SUPPORTED PI	Raspberry Pi 4B/3B+/3B
POWER SUPPLY	DC 5V input (can be powered from Raspberry Pi)
STRUCTURE	Low-profile, aluminum alloy heat-sinking bracket
RATED POWER	0.1W@5V, 0.02A
FAN	3007 fan, 8000±10%RPM

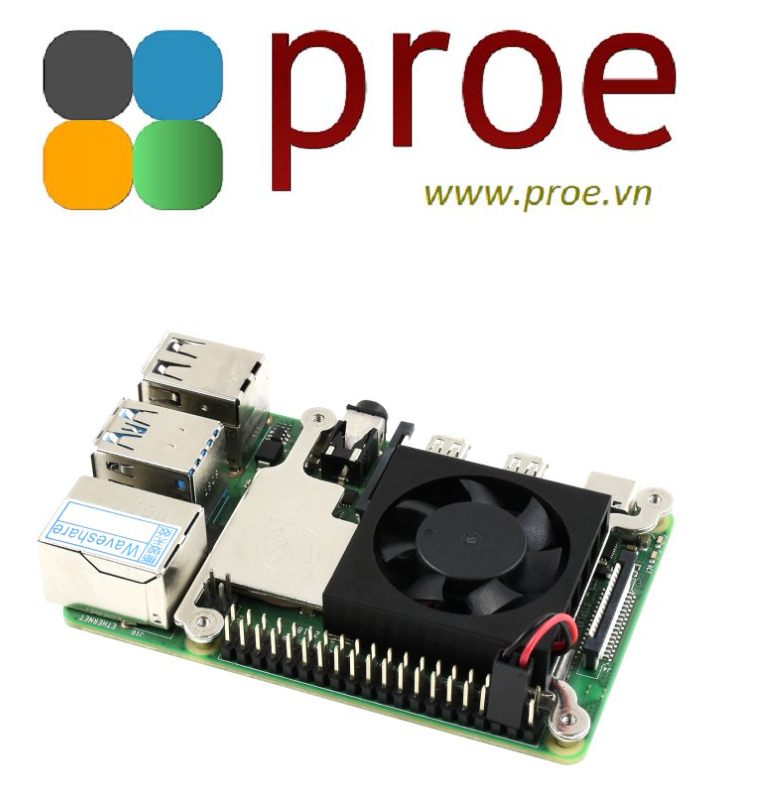

Setup Example

Cooling The Raspberry Pi 4B (Left) And Raspberry Pi 3B+/3B (Right)

Raspberry Pi 4B Cooling Solution Comparing

Outline Dimensions

Resources & Services

Wiki: PI-FAN-3007
