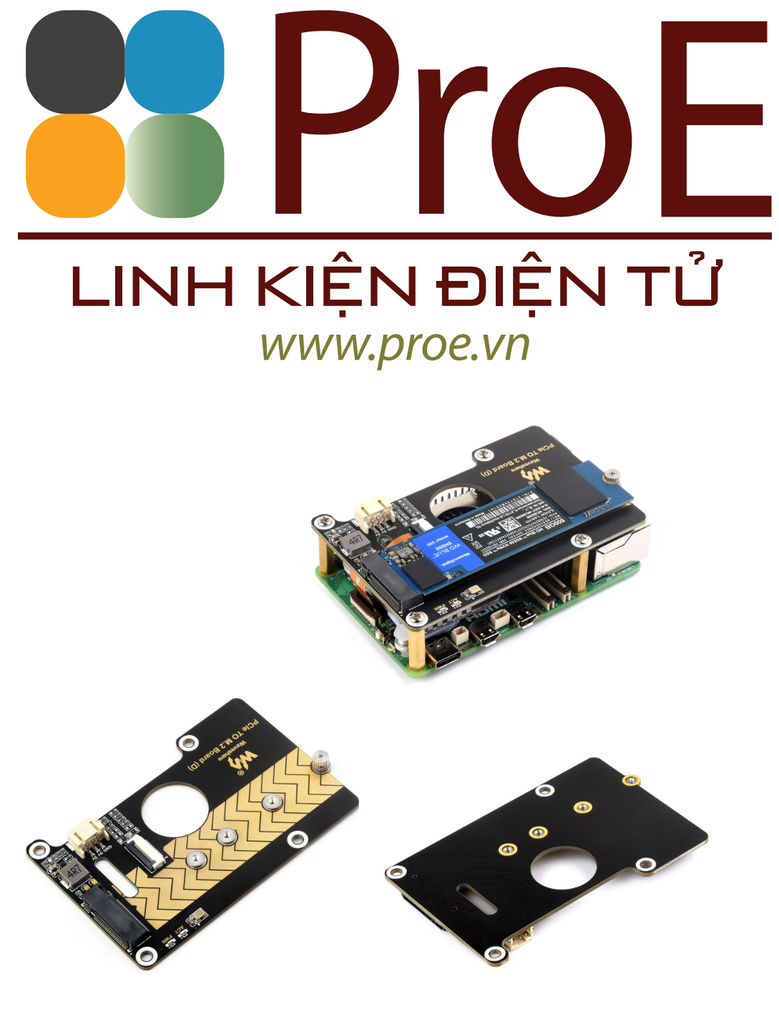

PCIe TO M.2 Board (D)

PACKAGE CONTENT

Weight: 0.032 kg

1. PCIe TO M.2 Board (D) x1
2. 16P-Cable-40mm x1
3. Standoff pack x1

1

2

3

PCIe To M.2 Adapter Board (D) For Raspberry Pi 5, Compatible With 2280 / 2260 / 2242 / 2230 Size NVMe Protocol M.2 SSD, 8Gbps Data Rate, High-Speed Reading/Writing, Raspberry Pi 5 NVMe

PCIe TO M.2 Board (D)

Designed for Raspberry Pi 5

Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency

Connecting To PI5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

NVMe Solid State Drives Support

Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

NVMe Drive Slot Support

Note: Only supports the NVMe Protocol Solid State Drives.

Adopts Anti-Oxidation Immersion Gold Process

Improves Reading/Writing Speed Of Your Pi

Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi , Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive.

* for reference only, please refer to the Package Content for detailed part list

Two Power Supply Methods

Supports Power Supply Via PCIe Cable Or 3PIN Cable

* Note: uses PCIe cable for power supply by default, you can add 3PIN cable in cases of insufficient power

Onboard Dual LED Indicators

Easy To Monitor The Working Status

How To Install

* for reference only, please refer to the Package Content for detailed part list

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIe_TO_M.2_Board_(D)
