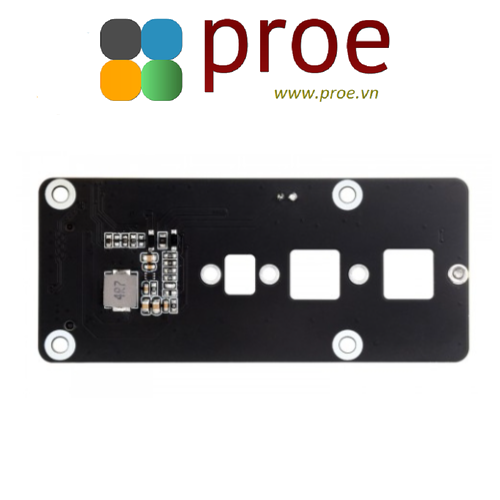

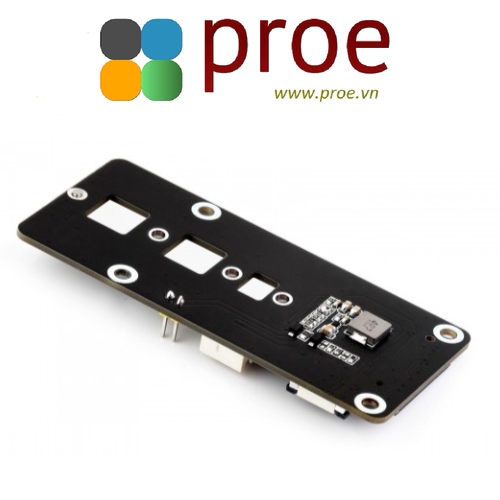

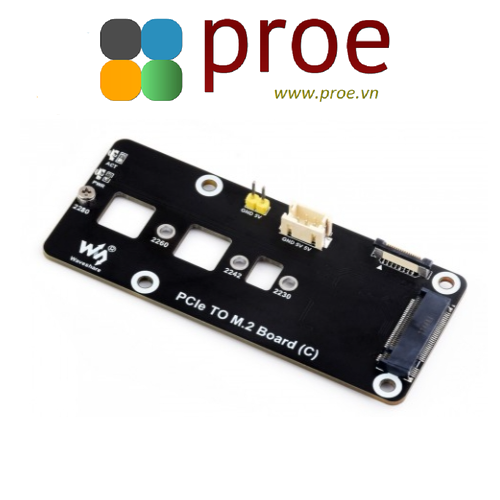

PCIe To M.2 Adapter Board (C) for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

Wiki: www.waveshare.com/wiki/PCIe_TO_M.2_Board_(C)

PACKAGE CONTENT

Weight: 0.017 kg

1. PCIe TO M.2 Board (C) x1
2. Transparent acrylic mounting plate x1
3. PH2.0 3PIN cable ~5cm x1
4. PCIe-Cable-50mm x1
5. Standoff pack x1

DESCRIPTION

PCIe To M.2 Adapter Board (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, With Transparent Acrylic Mounting Plate, Side-Mounting Solution

PCIe To M.2 Board (C)

Designed for Raspberry Pi 5

Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency

Connecting To PI5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

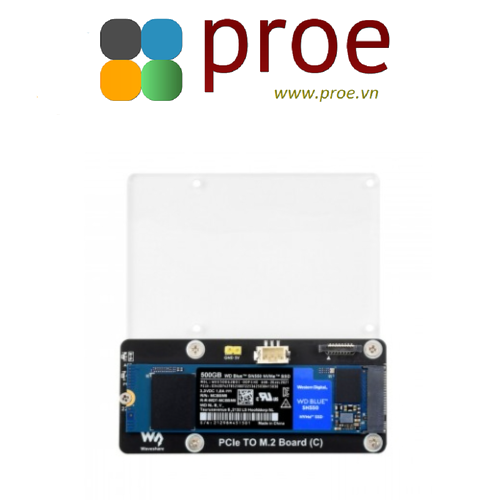

Comes With Transparent Acrylic
Mounting Plate

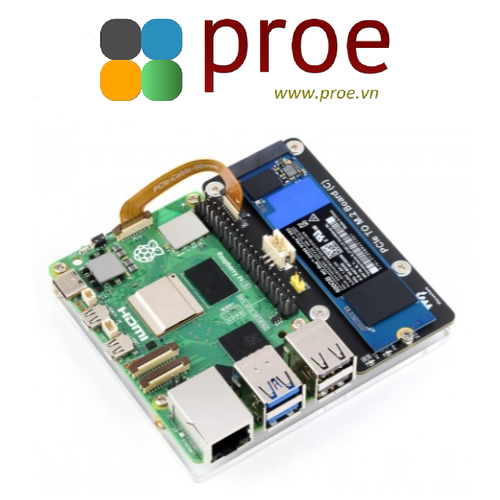

Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

NVMe Drive Protocol Support

Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

Multiple Power Supply Methods

Supports Power Supply Via PCIe Cable Or 3PIN Cable

* Note: uses PCIe cable for power supply by default, you can add 3PIN cable in cases of insufficient power

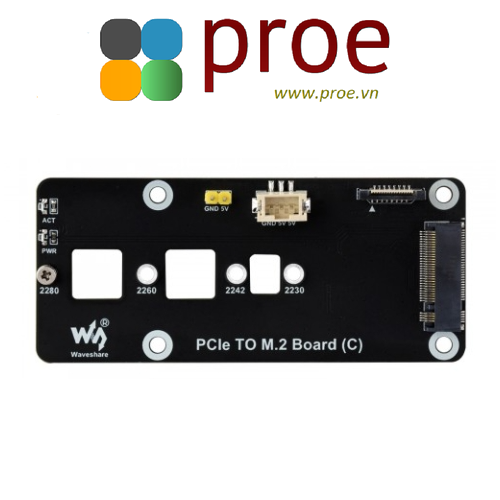

Onboard Dual LED Indicators

Easy To Monitor The Working Status

Outline Dimensions

Resources & Services
