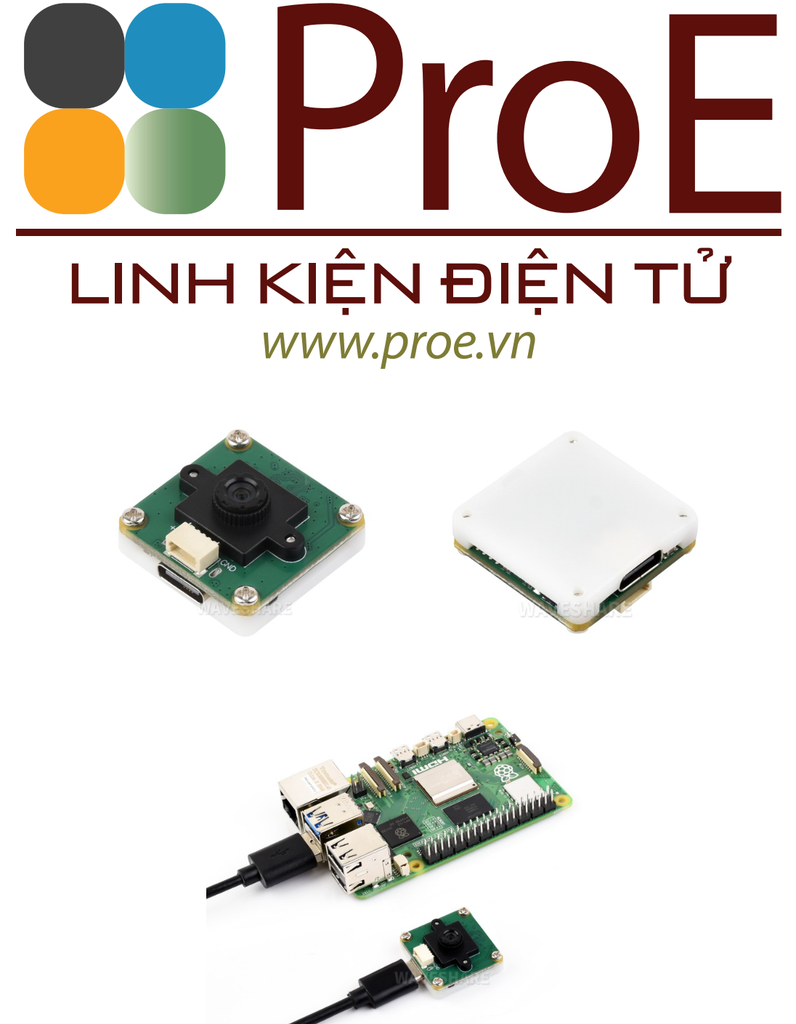

OV9281 1MP USB Camera (A)

Weight: 0.018 kg

1. OV9281 1MP USB Camera (A) x1
2. SH1.0 4PIN dual plug cable x1

1

2

OV9281 1MP Mono USB Camera (A), Supports 120FPS High Frame Rate Recording, Global Shutter for Clearer Imaging

OV9281 1MP Mono USB camera

1MP | Global Shutter | 120° FOV | 120 FPS Support

Specifications

Pixels	1MP (mono)
Sensor	OV9281
Interface	USB2.0 Type-C
Camera	Sensor size	1/4 inch
	Aperture (F)	2.2
	Focal length (EFL)	1.65mm
	Field of view (FOV)	120°
	Distortion	<10%
	Focusing	Fixed-focus
	Mount	M12
CONSTRUCTION	without IR Filter
Image	Format support	MJPG, YVY2
	Static image resolution	1280 × 720
	Video recording	120 FPS 1280 × 720 120 FPS 800 × 600 120 FPS 640 × 480
	Dynamic range	52dB
	SNR	46dB
Operating voltage	5V ± 5%
operating temperature	0°C ~ 50°C
Module size	25.00 × 25.00 (mm)



Connecting with USB cable

Connecting to Raspberry Pi 5



Connecting to Jetson Orin kit



Connecting to RDK X5 Development Board

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included



Global shutter, more clear imaging

the global shutter eliminates jello-effect while shooting fast moving objects
more suitable for high frame rate capturing

High Frame Rate Recording

Supports 120 FPS high frame rate recording to capture every dynamic scene detail

Pinout Definition

Onboard two types of connectors

Connecting via USB Type-C port



Connecting via 1.0mm pitch 4PIN connector



Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/OV9281_1MP_USB_Camera_(A)
