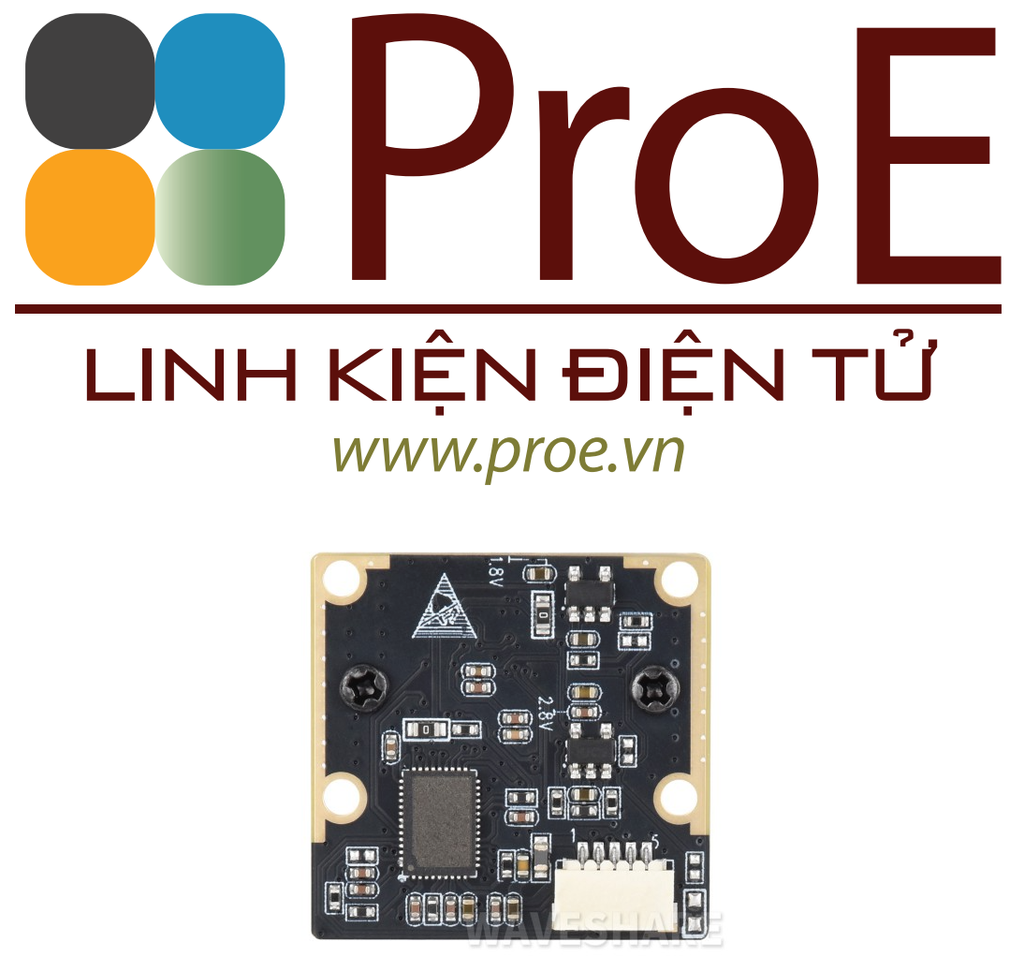

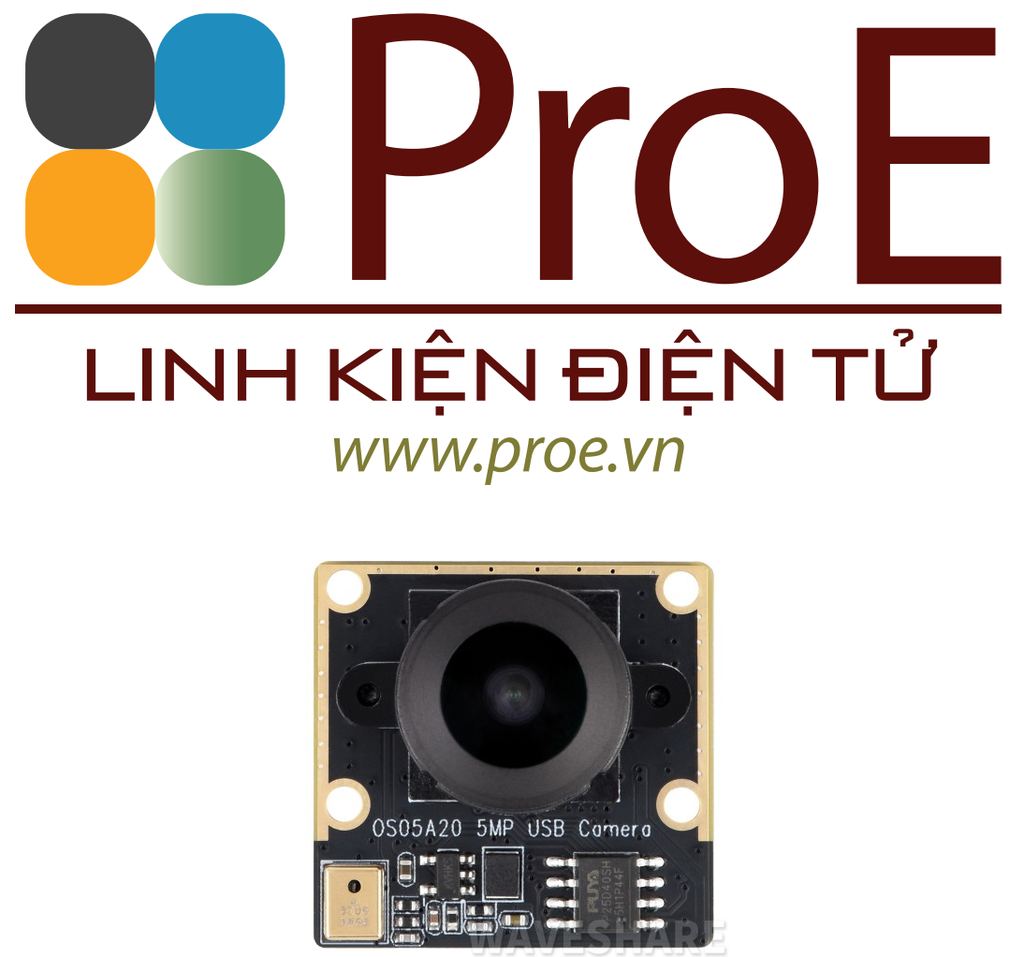

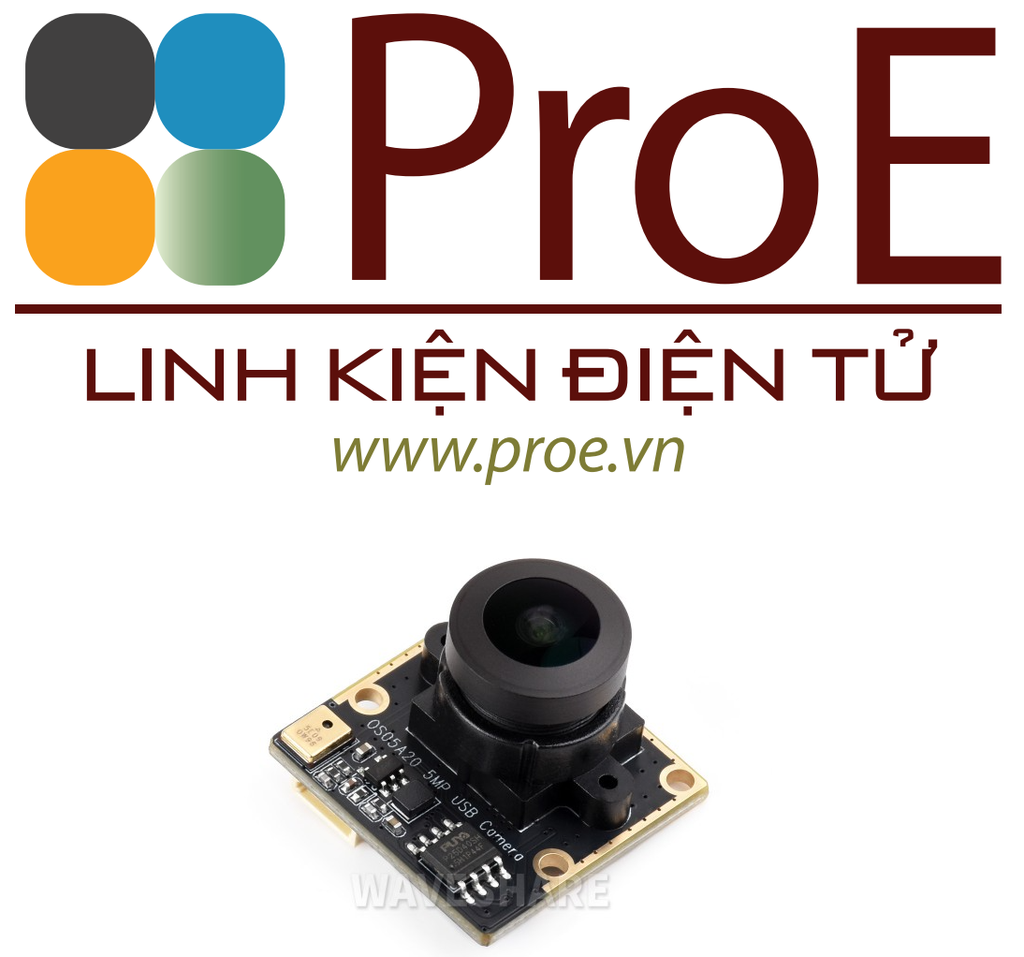

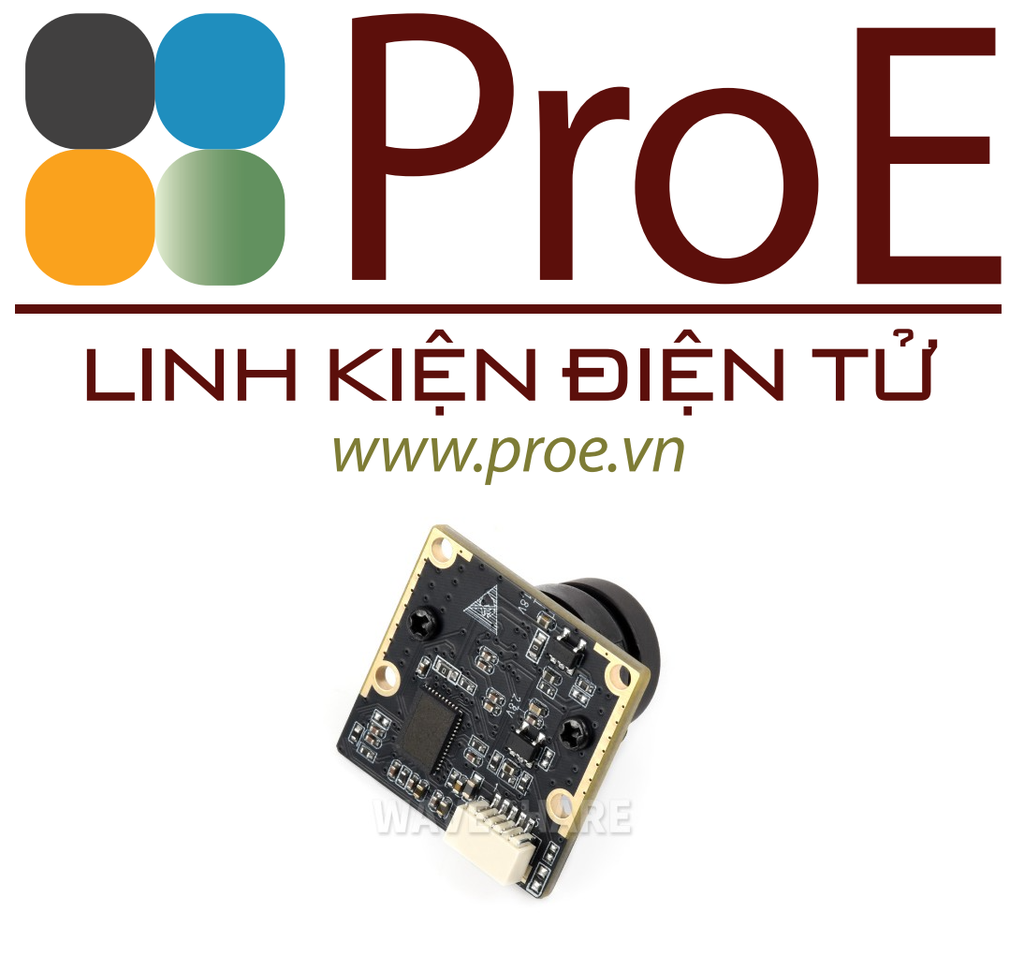

OS05A20 5MP USB Camera (B)
- Mã sản phẩm: 35566
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
1.550.000₫
Wiki: docs.waveshare.com/OS05A20_5MP_USB_Camera
OS05A20 5MP USB Camera (B) x1
OS05A20 5MP USB Camera Module Type B, Supports USB2.0 Type-C Port, Onboard Single Microphone, 175° Wide-Angle Lens
5MP USB camera module
OS05A20 sensor, USB2.0 port, 175° wide-angle Lens
Specifications
| Pixels | 5MP | |
|---|---|---|
| Sensor | OS05A20 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/2.7inch |
| Aperture (F) | 2.0 | |
| Focal length (EFL) | 3.65mm | |
| Field of view (FOV) | 175°(D) × 151.9°(H) × 83.6°(V) | |
| Distortion | <-32% | |
| Focusing | Fixed-focus | |
| Mount | M12 | |
| Shutter Mode | Rolling shutter | |
| Image | Format support | MJPG |
| Static image resolution | 2592 × 1944 | |
| Video recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| Dynamic range | 74dB | |
| Operating voltage | 5V ± 5% | |
| operating temperature | -10°C ~ 60°C | |
| Module size | 25 × 24 (mm) | |

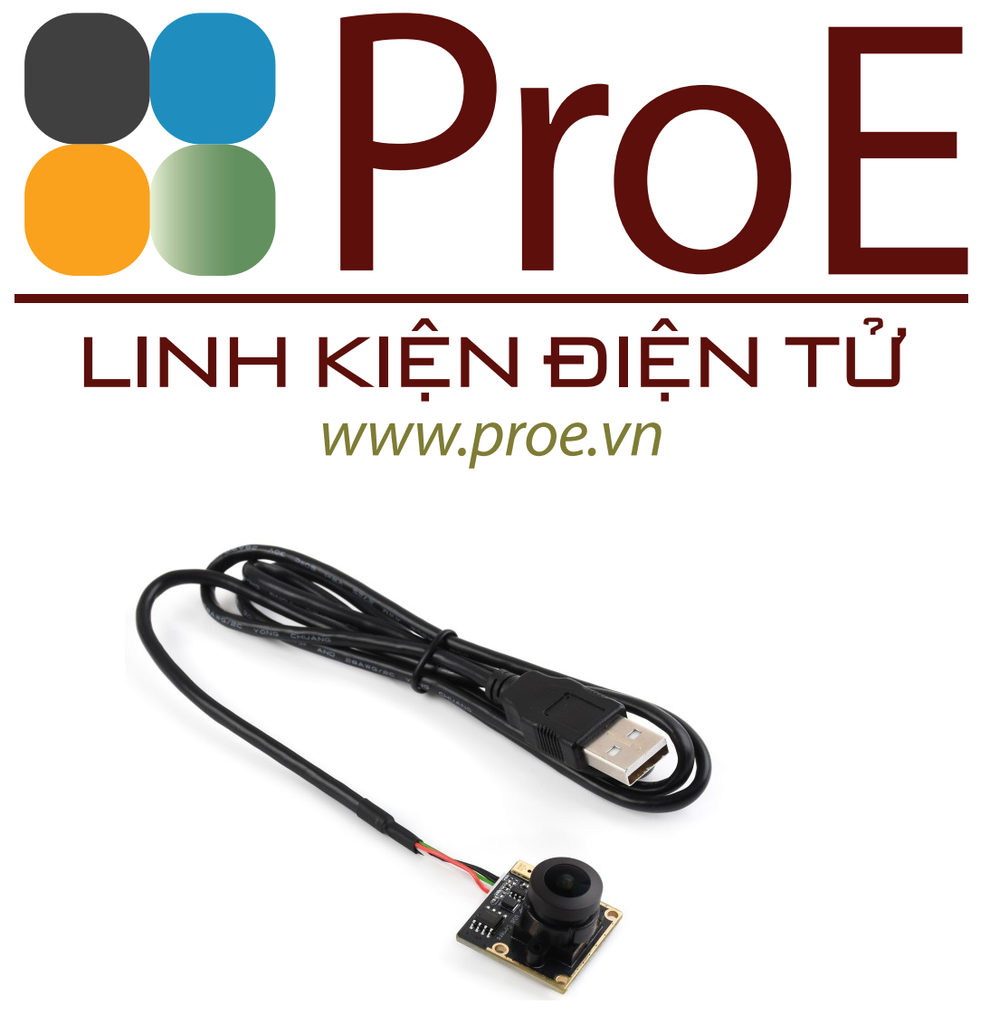

Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
* for reference only, the Raspberry Pi 5 and Jetson Orin kit are NOT included
5MP High resolution
Supports 30 FPS output, suitable for capturing details
Better Low-light sensitivity
Provides a better imaging effect in low light condition
Wide Dynamic Range
Supports Dual-Exposure On-Chip HDR for maintaining image details and quality in high contrast scenes
* The above pictures are the simulated effect for demonstrating the expected performance of OS05A20 camera under various conditions, for reference only, please refer to actual effect.
175° Wide FOV
Ultra-Wide Angle for Large-Scale Scenes
Onboard Microphone
Onboard single microphone, supporting simultaneous audio recording
Pinout Definition
Outline dimensions
