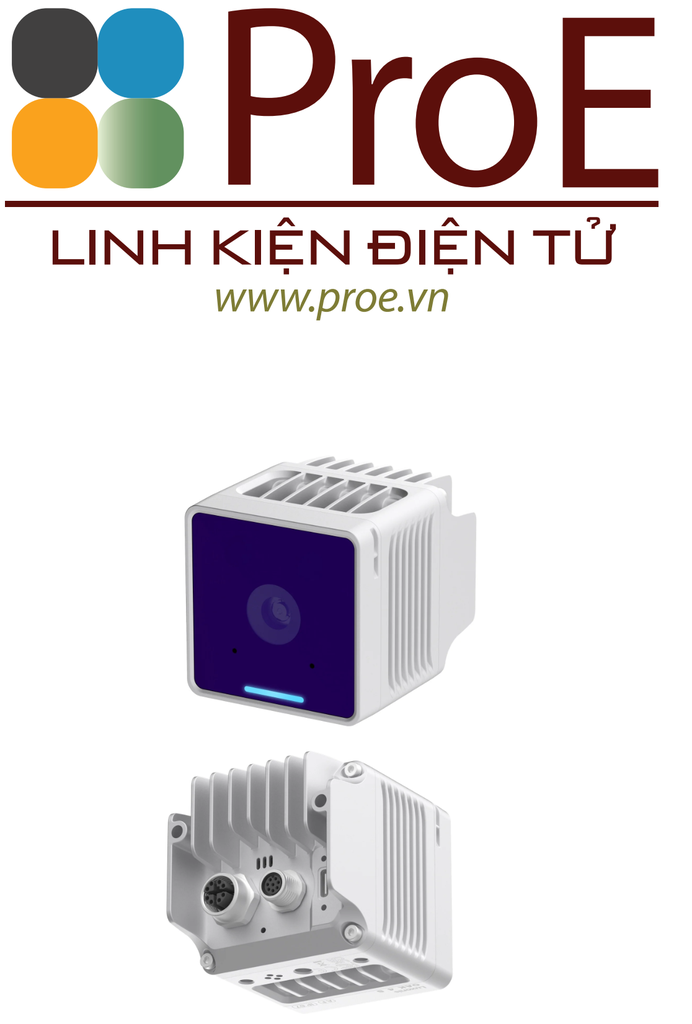

OAK 4 S

OAK 4 S 48MP Edge AI Inference Camera, Provides 48 TOPS (INT8) And 12 TOPS (FP16) Of Edge AI Computing Power

OAK 4 S is our single lens solution for high-speed edge inference in a tiny package.  A true standalone device running Luxonis OS, the OAK 4 S combines an elegant design, industrial grade materials, and industry leading compute in a single, compact unit.

• 8-core CPU, 8GB RAM, 128GB of storage
• 48 TOPS for AI inferencing
• 48MP RGB camera
• Microphone
• Both USB3 and PoE for power and communication
• Status LED
• IP67 Rating
• Running Linux based Luxonis OS
• 9-axis IMU

OAK 4 S is the ultimate edge inference camera in a compact design that packs a punch. This standalone device is perfect for robotic vision and automated systems, combining a high-resolution color camera with on-device Neural Network inferencing and Computer Vision capabilities.

Key features:

RVC4 on-board features:

• 8-core ARM CPU (QC Snapdragon 8-series), 8GB RAM, 128GB of storage
• Operated by Luxonis OS, based on Linux kernel 5.15
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• AI: 48 TOPS (INT8) and 12 TOPS (FP16) operations
• Object tracking: 2D tracking with ObjectTracker node

Specifications:

• Power consumption: up to 25W
• Housing:
  - Industrial grade aluminum with Front Gorilla Glass
  - Water resistance enclosure with IP67 rating

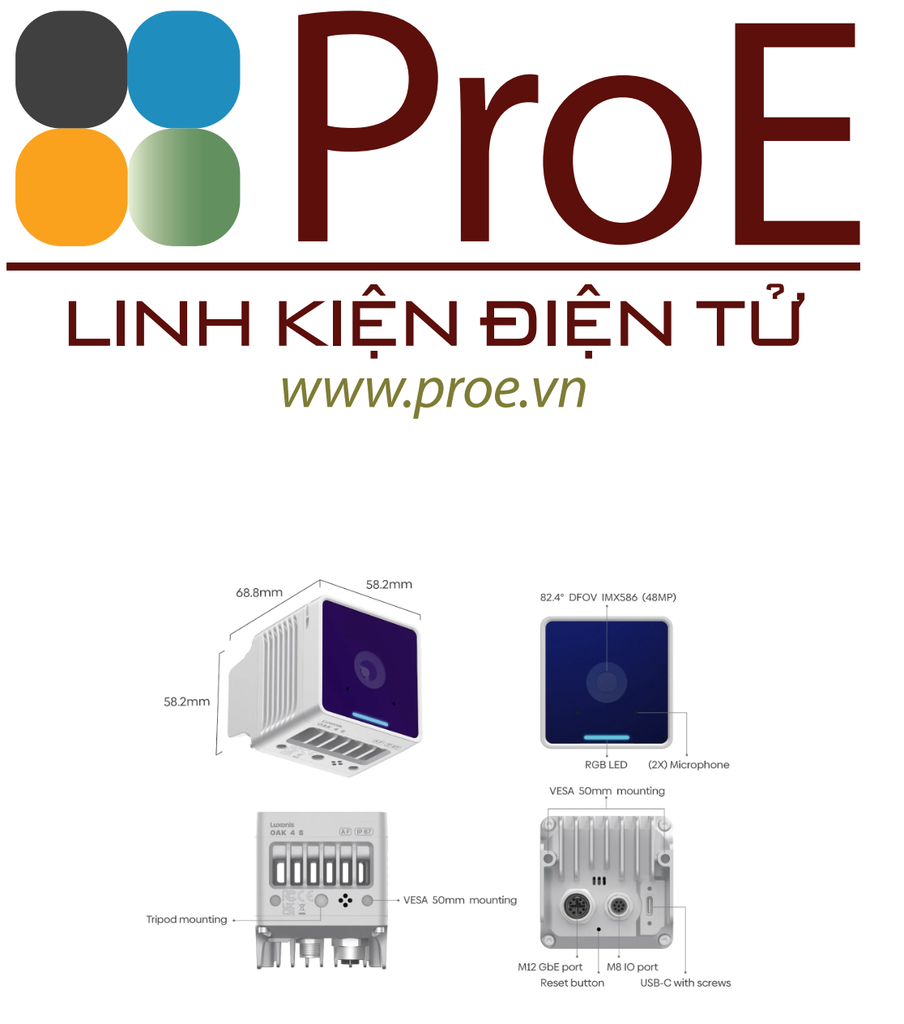

• Mounts:
  - 1/4" tripod mount
  - M4 mounting points at distance 40mm on back and bottom cover
• Dimensions: 58 x 58 x 71 mm
• Weight:
  - 325 g

Camera Specifications

OAK 4 S uses 48MP sensor (IMX586) as the main RGB camera.

Sensor specification:


Connectivity

Power-over-Ethernet (PoE)

The base board offers full 802.3at, Class 3 PoE compliance with 2.5GBASE-T speeds (up to 2.5Gbps, depending on the network infrastructure). A PoE switch is recommended to power the device and utilize the full potential of PoE connectivity.

M12 PoE connector is used for power and 2.5GBit data transfer. Additionally, there's an M8 connector for IO connectivity; USB2 (D+, D-), camera IOs (FSIN, STROBE), power, and 2x GPIO (can be used for UART). Cap for M8 is included when connector is not used to ensure water resistance.

Camera also offers USB-C (USB 3.2 Gen2, 10 Gbps) as an option for power and connectivity.

You can also combine both approaches.

Operating characteristics

Water resistance

This camera is shipped with IP67 rated enclosure.

Power consumption
1.5 to 25W
Operating temperature
-20C to 50C
Vibration tolerances
EN 60068-2-6:2008 and ISO 15998:2008 Clause 7.2.3 Table 1

The package contains:

• OAK 4 S
• M12 plug to RJ45 cable, 2m
