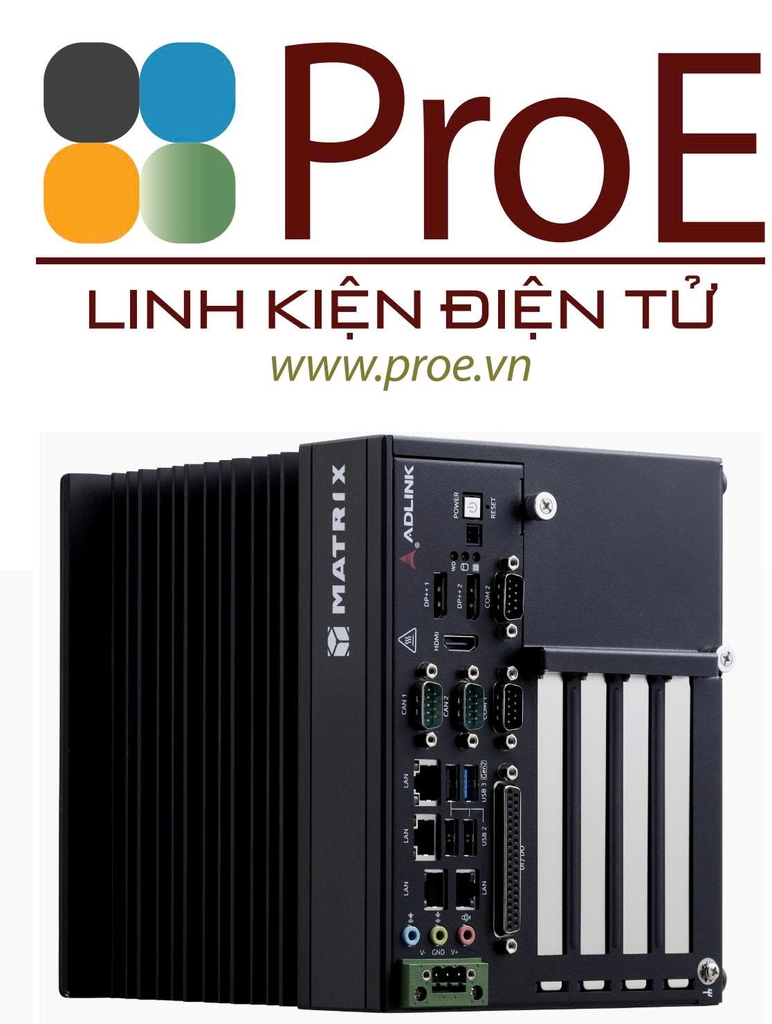

Expandable Fanless Embedded Computers
Expandable Industrial Computer with Intel® N and Atom® x series

Key Features

• Intel® Processor N series and Atom x series
• DDR5 4800 MHz memory up to 16G
• Wide-temp operation from -20°C to 60°C (0.6m/s Air Flow)
• Varity expansion slot : 1x M.2 B-Key, E-Ky, M-Key and 3x PCIe (For 3340)
• Three display port : 1x HDMI, 2x DP
• Isolation communication port for RS-232/422/485, CAN
• Isolated Digital input and output
• TPM2.0 on board

Intel® latest ADL-N cost-performance embedded Fanless system, DDR5 SO-DIMM, various IO interface for different industrial applications, including Isolation COM port & DIO, 4x GbE LAN, M.2 expansion slot for general application.

Ordering Information

• MXC-3301/M8G

  N97, 1x 2.5" SATA, 1x DDR5 8GB , 2x DP, 1x HDMI , 3x 2.5GbE, 4x COM, 1x USB 3, 3x USB 2, 2x Isolation RS-232/485,2x isolation CAN, 8x isolated DI and DO, TPM2.0, M.2 (B,E,M)

• MXC-3341/M8G

  MXC-334x Series 3 expansion slots, N97, 1x 2.5" SATA, 1x DDR5 8GB , 2x DP, 1x HDMI , 3x 2.5GbE, 4x COM, 1x USB 3, 3x USB 2, 2x Isolation RS-232/485,2x isolation CAN, 8x isolated DI and DO, TPM2.0, M.2 (B,E,M), 1x PCIe x8, 2x PCIe x4

Datasheet
