Mini Uninterruptible Power Supply module, Supports charging And Power output at the same time, 5V 2.5A Output

PACKAGE CONTENT

Weight: 0.023 kg

UPS Module Mini x1

Mini Uninterruptible Power Supply Module, Supports Charging And Power Output At The Same Time, 5V 2.5A Output

Mini Uninterruptible Power Supply Module

Supports Charging And Power Output At The Same Time, Stable 5V Output

Features At A Glance

• Mini UPS expansion board for easy soldering or integration into mobile robots and industrial control equipments
• I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
• Onboard multiple function pins, provides two charging and discharging methods via pads and pin headers
• Multiple battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
• Onboard 5V regulator, up to 2.5A continuous output current
• Onboard warning indicators, easy to check if the battery is connected correctly and charging status
• Comes with online development resources and manual

Specifications

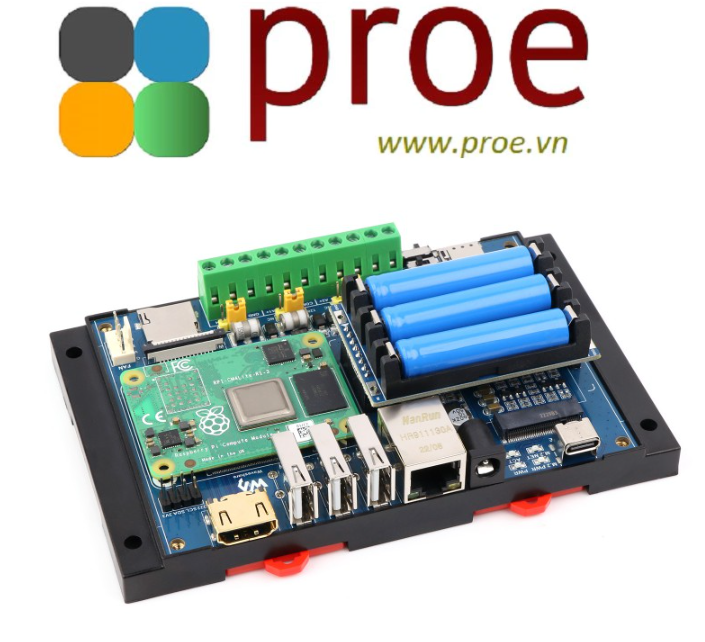

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

* for reference only, the CM4, CM4 base board, TF card and 10440 batteries are NOT included

Real Time Monitoring

Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C Interface

for reference only, please refer to the part list for detailed package content

Safe And Stable Circuit Design

Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse
Along With The Equalizing Charge Feature, More Safe And Stable

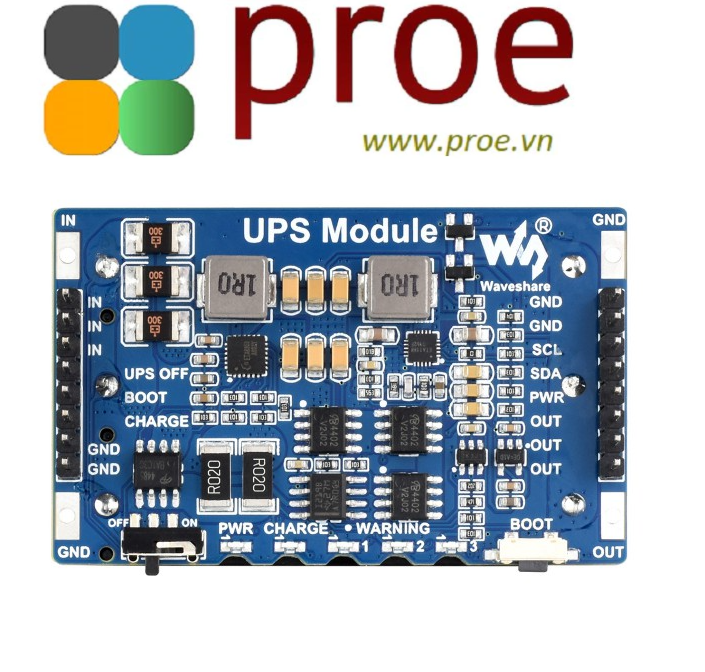

What's On Board

1. ETA1188
   5V voltage regulator
2. ETA6953
   Battery charge/discharge chip
3. INA219
   Voltage/current monitoring chip
4. S8261
   Battery protection chip
5. RT9193
   3.3V voltage regulator
6. AO4402
   Battery protection MOS tube
7. UPS ON/OFF switch
   Control UPS output

8. Boot button
   Batteries activation
9. Power indicator
   Lights up when the UPS switch is turned on
10. Charge indicator
    Light up: when batteries are charging
    Blinking: when batteries are abnormal or no battery connected
    Light off: when charging completed or not charging
11. Reverse warning indicators
    will light up if the related battery is reversely connected
12. Charging pad
    5V 3A
13. UPS output pad
    5V 2.5A
14. Multi-functional pin headers

Pinout Definition

Note: When using pin headers for charging and discharging, it is recommended to connect all input and output pins for 2.5A output current to reduce pin stress

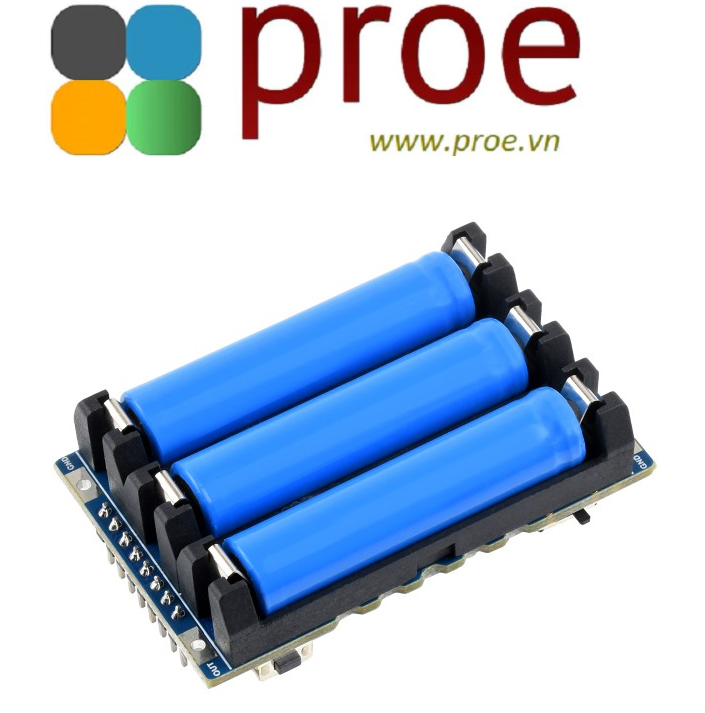

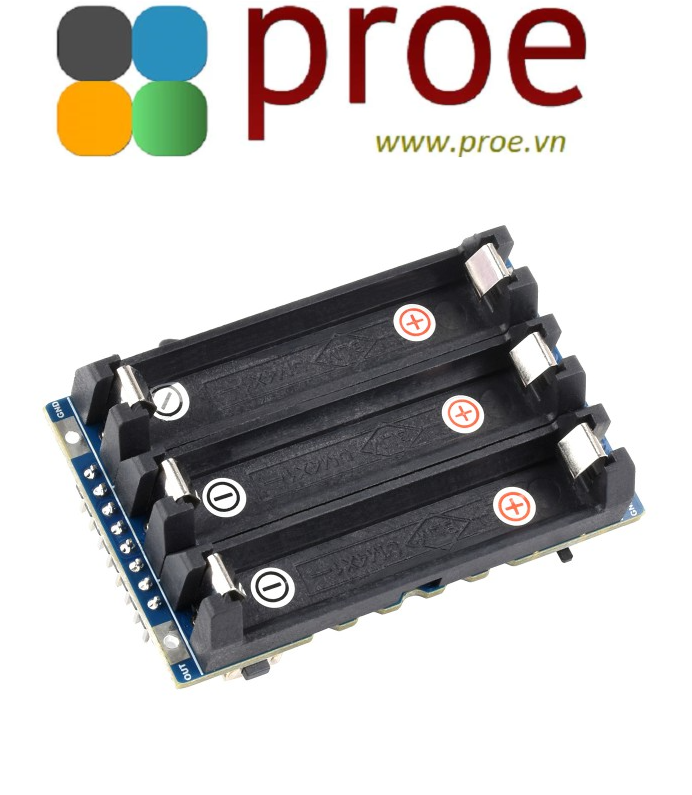

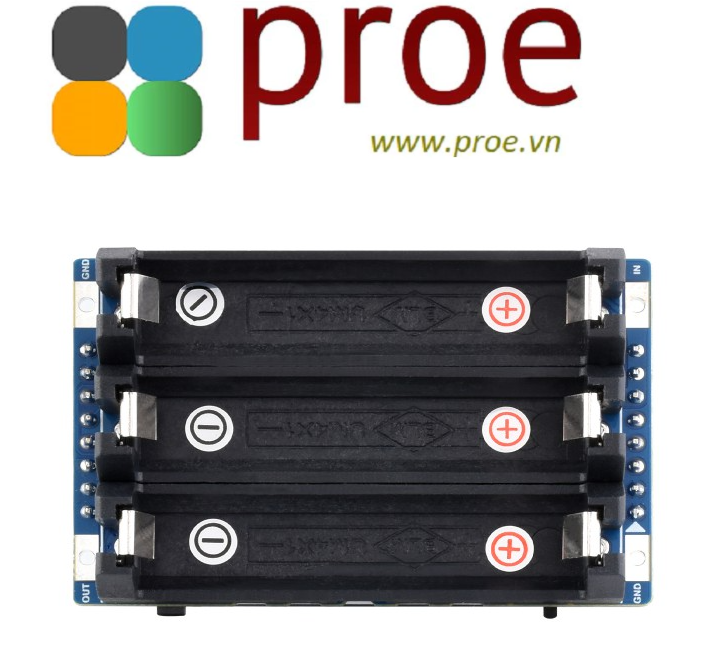

Product Show

Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/UPS_Module_Mini

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

SAFETY CAUTIONS

• Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
• Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
• Do not mix use old batteries with new ones, avoid using batteries of different brands.
• When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
• Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
• Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
