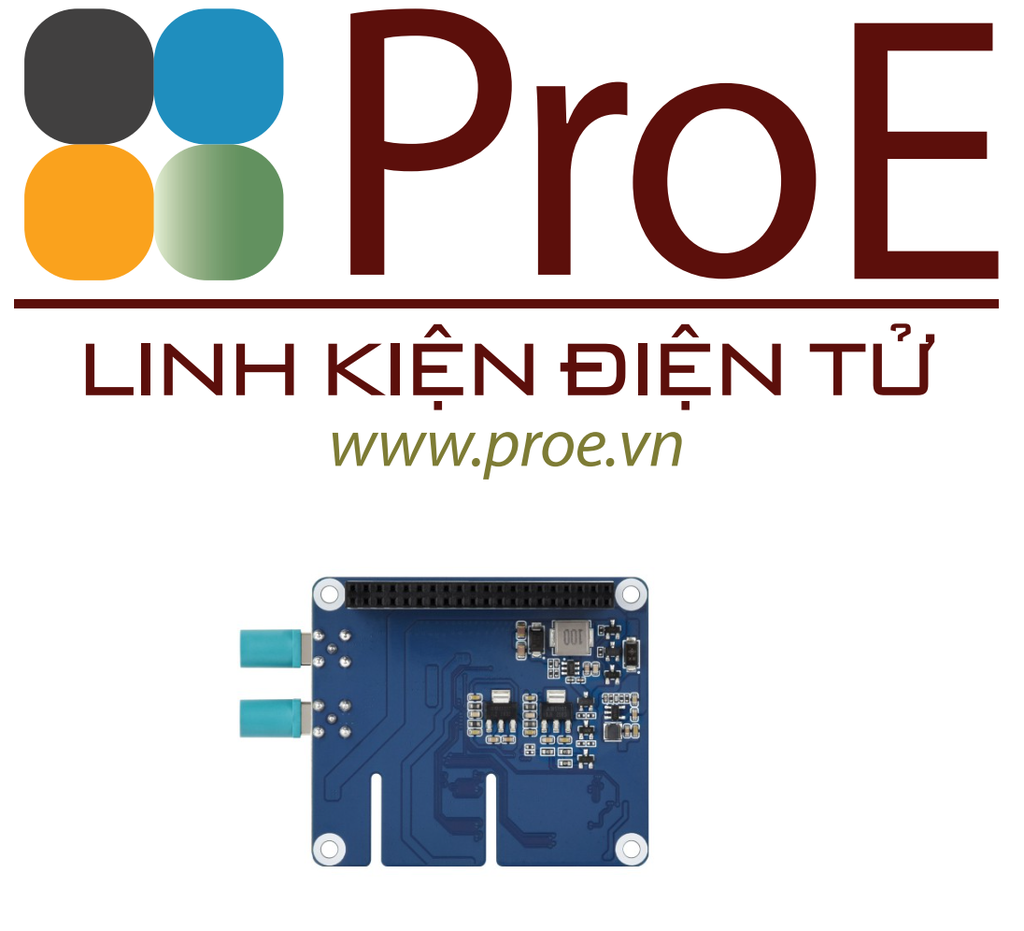

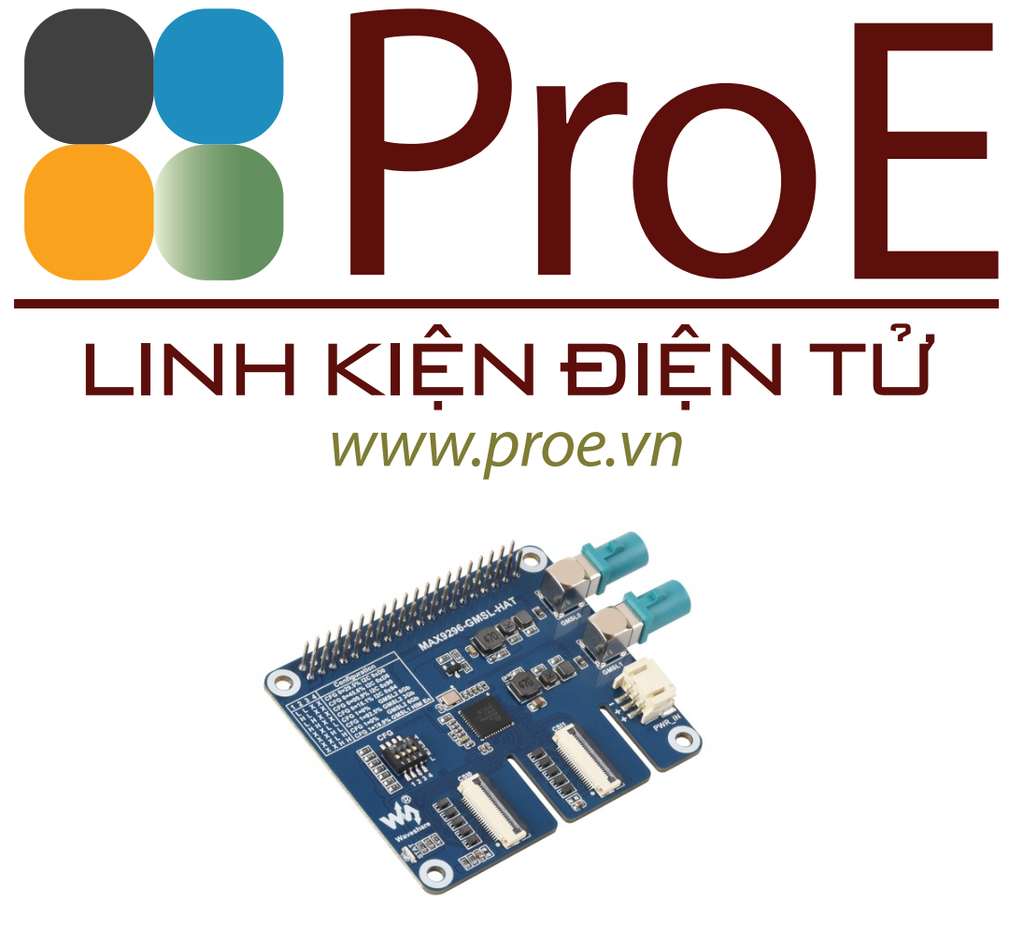

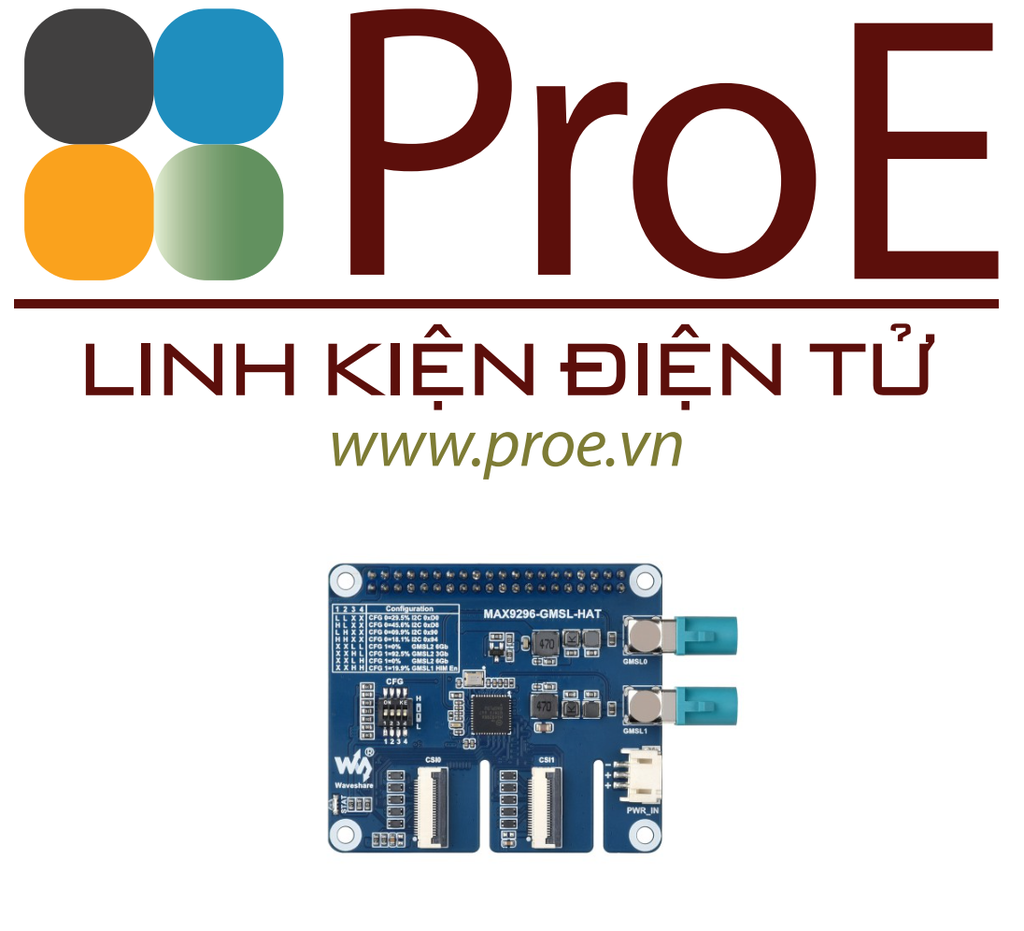

MAX9296-GMSL-HAT

Weight: 0.041 kg

1. MAX9296-GMSL-HAT x1
2. FFC 22PIN cable ~100mm x1
3. PH2.0 3PIN cable x1
4. Screws pack x1

1

2

3

4

2-Ch GMSL camera HAT, Equipped With MAX9296A Deserializer, High-Speed And Low-Latency Serial Transmission, Compatible With Raspberry Pi 5 and Jetson Orin NX/Nano

2-ch GMSL Camera HAT

MAX9296A deserializer, Compatible With Raspberry Pi 5 and Jetson Orin NX/Nano

Features

The MAX9296-GMSL-HAT is a GMSL camera HAT that allows up to two GMSL cameras to be connected to the host board such as Raspberry Pi 5, Jetson Orin Nano and Jetson Orin NX. Compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration. Adopts MAX9296A chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.

GMSL (Gigabit Multimedia Serial Link) is a high-speed serial transmission technology designed for high-bandwidth multimedia data transmission, with the advantages of long-distance, low-delay, high anti-interference and simple wiring. It is mainly used in automotive electronics and industrial applications, and is capable of transmitting high-definition video, audio, and data signals over one cable. By using coaxial or twisted-pair cables, GMSL can achieve long-distance signal transmission.

Key features include:

• Supports simultaneous access to two GMSL cameras
• Adopts MAX9296A deserializer solution
• Supports Raspberry Pi 5, Jetson Orin Nano, and Jetson Orin NX

Specifications

What’s On Board

GMSL camera support

Application Scenarios

Robotic Autonomous Driving

Car Surround View

Driver Assistance and Vision Fusion

Electronic Rear-View Mirror

Unmanned Smart Factory Production

Smart City

Application Example

* for reference only, the Raspberry Pi 5 and GMSL cameras are NOT included,
please check the Package Content for the detailed part list.

Outline dimensions

Resources & Services

Wiki: docs.waveshare.com/MAX9296-GMSL-HAT
