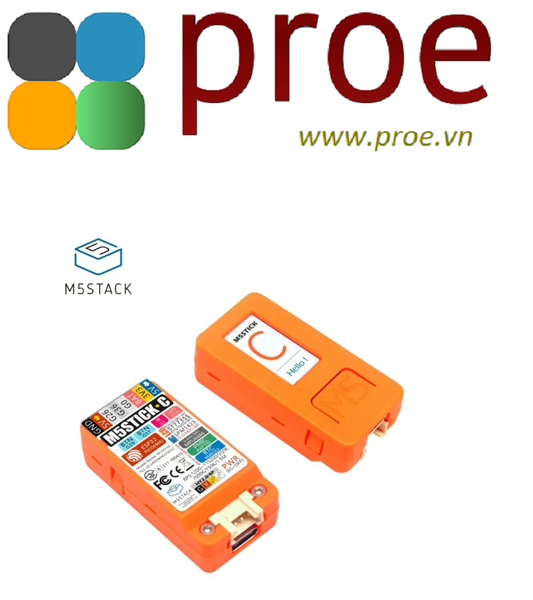

M5StickC Watch Kit M5StickC Watch Kit, Wearable ESP32 IoT Development Kit

M5StickC Watch Kit, Wearable IoT Development Kit, Powered by ESP32

Overview

The M5StickC Watch Kit is a mini M5Stack, powered by ESP32. It is a wearable, easy-to-use, open source, IoT development board.

What can it do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.

Hardware: The camera is powered by ESP32 module which integrates WiFi and Bluetooth function. It also features hardware resources like 0.96" colorful LCD, 6-axis IMU, microphone, battery, recharge circuit, and so on.

Software: M5StickC supports MicroPython, Arduino, and UIFlow (graphic programming) development, combined with the provided SDK, it is easy to develop your unique IoT application.

Features

• Powered by ESP32 module, supports WiFi and Bluetooth 4.2
• 0.96" true color LCD, 80×160 pixels
• 6-axis IMU, with 3-axis gyroscope and 3-axis accelerometer
• Digital mini high SNR microphone
• Onboard button, IR transmitter, and LED, for human-machine interaction
• Power management chip, for battery charging/discharging management
• 80mAh Li-po battery, allows short term operation
• USB Type-C port, for power input, battery charging, or debugging
• Onboard expansion interface, supports external sensors
• Supports MicroPython, Arduino, and UIFlow (graphic programming) development
• Small form factor, comes with watch strap and mount holder, wearable
• Comes with development resources and manual (SDK and tutorials)

Applications

• Internet of Things
• Smart home
• Maker education
• Wearable devices

Development Resources

Docs: https://docs.m5stack.com/#/zh_CN/quick_start/m5stickc/m5stickc_quick_start
