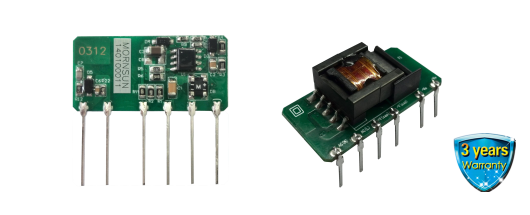

LS03-15B05SR2S 5V 3W AC/DC Power Supply

INTRODUCTION
LS03-15BxxSR2S(-F) series is a high efficiency green power modules provided by Mornsun. The features of this series are: Accept either AC or
DC input, wide input voltage, high efficiency, low power consumption, safety isolation etc. All models are particularly suitable for the
applications such as industrial, electric power, instrumentation, smart home which do not have high requirement on EMC.EMC application
circuit must be added if the products need to be applied to EMC harsh environment .

FEATURES
 Input voltage range: 85 - 264VAC/70 - 400VDC
 Output short circuit, over-current protection
 High efficiency, high power density
 Isolation voltage: 3KVAC
 Operating temperature range: -40℃ to +85℃
 Open frame, compact size
 Flexible design of peripheral circuit reduces layout problems
 IEC60950, UL60950, EN60950 approval
