LCD1602 I2C Module

PACKAGE CONTENT

Weight: 0.038 kg

1. LCD1602 RGB Module x1
2. PH2.0 4PIN wire x1

1

2

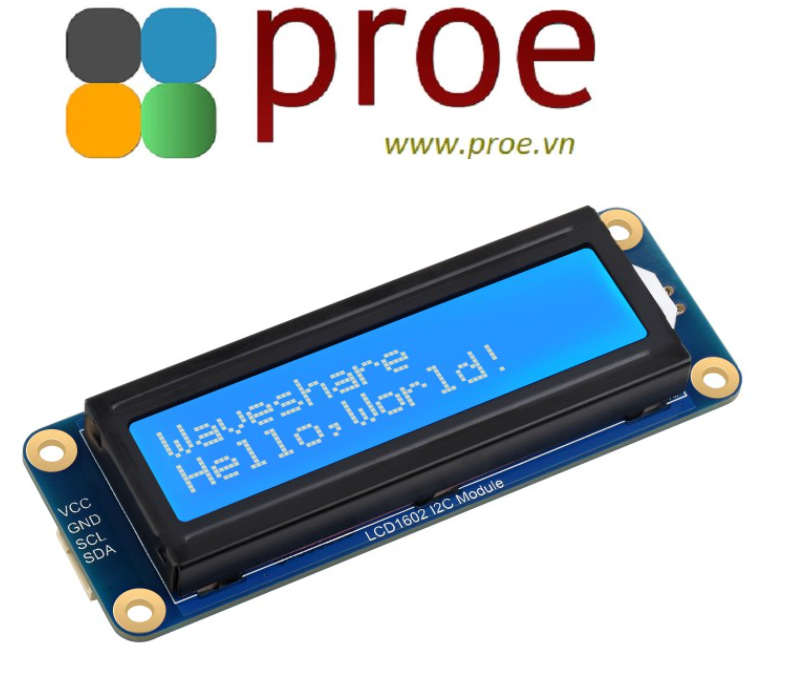

LCD1602 I2C Module, White Color With Blue Background, 16x2 Characters LCD, 3.3V/5V

LCD1602 I2C Module

White Color With Blue Background, I2C Communication, 3.3V/5V Compatible

Supports Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32 and Arduino...

• Characters16 × 2
•
• InterfaceI2C
•
• Display PanelChar LCD
•
• Display effectWhite on Blue
•
• LCD ControllerAiP31068

Features At A Glance

• Incorporates character LCD panel LCD1602
• I2C control interface, only two signal pins are required, saving the IO resource
• Compatible with 3.3V/5V operating voltage
• Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

Specifications

Compatible With Multiple Platforms

Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
And User Manuals, Easier To Develop And Integrate, And Better Expansibility

I2C Control Interface

Only Two Signal Pins Are Required, Saving The IO Resource

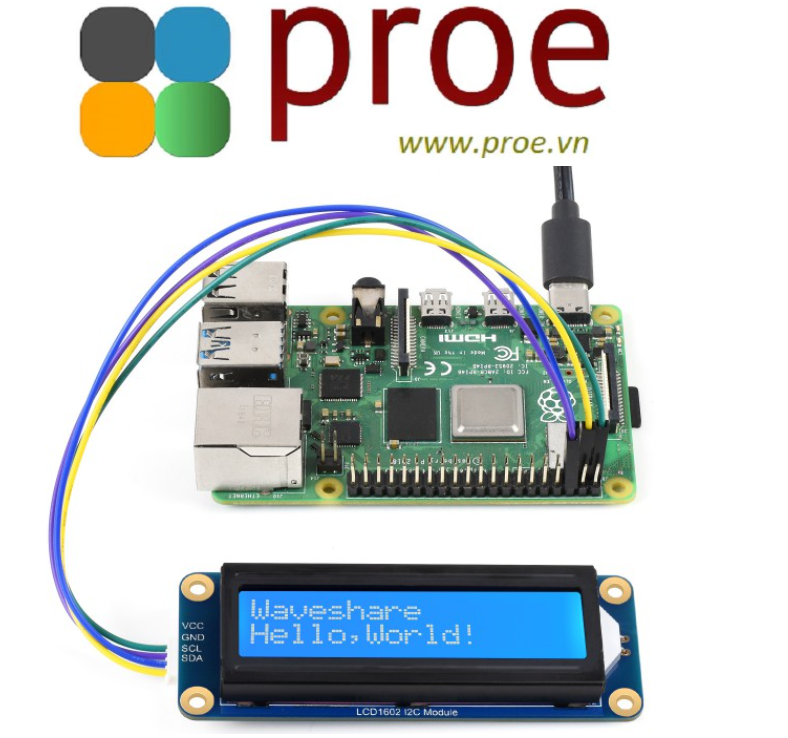

Demonstration

for reference only, Raspberry Pi Pico is NOT included.

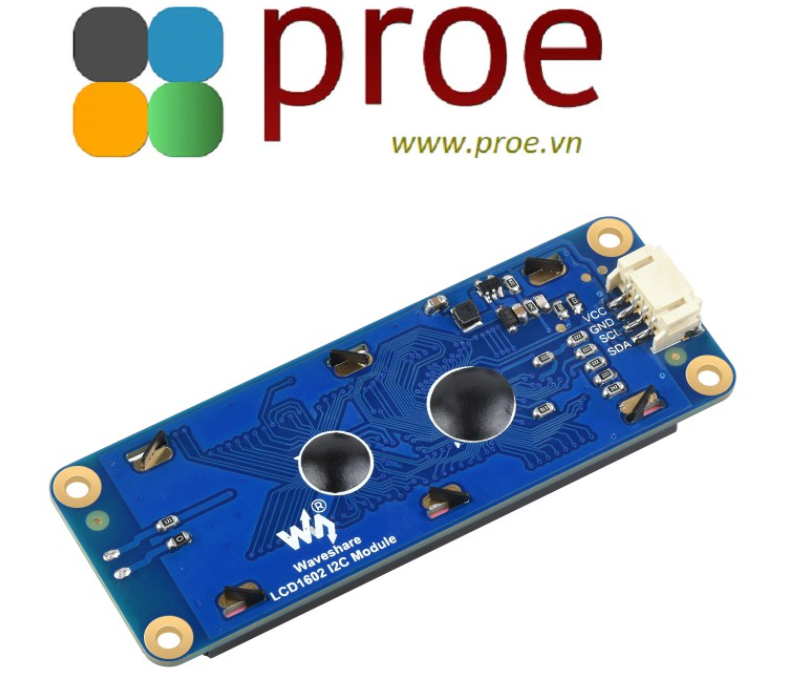

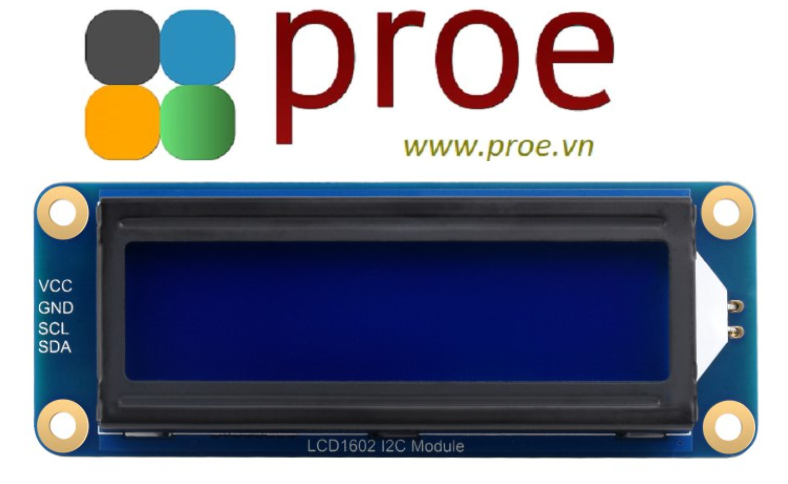

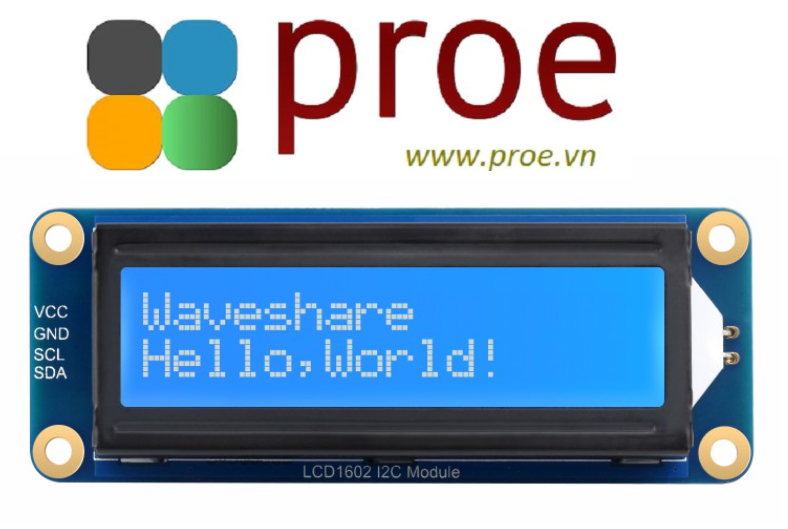

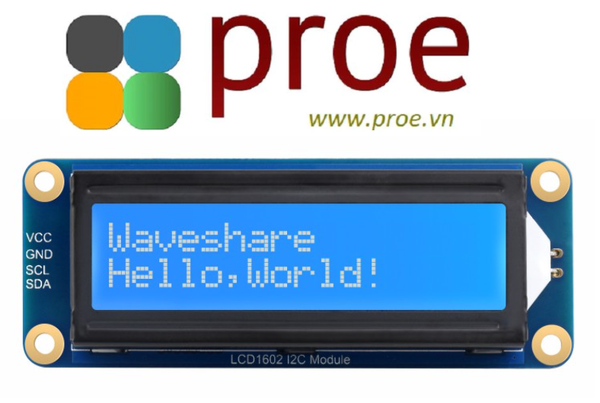

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/LCD1602_I2C_Module
