LC29H Series Dual-band GPS Module for Raspberry Pi, Dual-band L1+L5 Positioning Technology, Optional RTK Function

WIKI: www.waveshare.com/wiki/LC29H(XX)_GPS/RTK_HAT

PACKAGE CONTENT

Weight: 0.126 kg

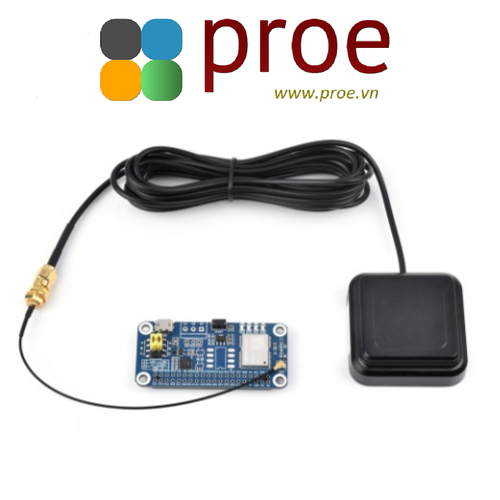

1. OPTIONS LC29H GPS HAT x1
2. 2x20PIN female header x1
3. GPS External Antenna (D) x1
4. IPEX 1 to SMA cable ~17cm x1
5. Screws pack x1

DESCRIPTION

LC29H Series Dual-Band GPS Module For Raspberry Pi, Dual-Band L1+L5 Positioning Technology, Optional RTK Function, GNSS Expansion Board, With GNSS Active Positioning Antenna

Raspberry Pi Dual-Band RTK
Centimeter-Level Positioning GPS Module

Dual-Band L1+L5 | RTK Centimeter-Level Accuracy | Raw Observation Data Output

Features At A Glance

The LC29H series can track L1+L5 dual-frequency and multi-GNSS signals, reducing multipath effects in urban canyons and improving positioning accuracy while maintaining low power consumption. With built-in LNA and SAW filter to achieve high sensitivity and strong anti-interference capability. Adopts dual-band positioning and RTK technology to meet the need of centimeter-level high-precision positioning. Ideal for real-time tracking systems and sharing economy applications, helping to develop applications such as drones, smart farm machinery, shared two-wheelers, etc.

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports simultaneous tracking of L1+L5 dual-band satellite signals, reducing multipath effects in urban canyons and improving positioning accuracy
• Supports concurrent receiving of multi-GNSS systems (GPS, BDS, GLONASS, Galileo and QZSS) while maintaining low power consumption


• LC29H(AA) GPS HAT with the following features:
  • Supports positioning augmentation systems (WAAS, EGNOS, MSAS and GAGAN) to improve the positioning performance of service areas
  • Supports EASY technology, to realize the positioning using stored information such as ephemeris and almanac data when there is no signal, and improve the positioning and time to first fix


• LC29H(DA) GPS/RTK HAT with the following features:
  • Supports fast convergence dual-band RTK centimeter-level positioning, suitable for high-precision positioning of terminal devices


• LC29H(BS) GPS/RTK HAT with the following features:
  • Supports GNSS raw observation and correction data output, suitable for establishing RTK base station


• Built-in low noise amplifier and acoustic surface filter to realize -165dBm high sensitivity and enhance anti-interference performance
• Supports multi-frequency active interference cancellation, effectively suppressing or eliminating narrowband signal (WiFi/2/3/4/5G) interference to ensure navigation accuracy
• A-GNSS (Assisted GNSS) support, reducing the time to first fix (TTFF) with cold start when powered on to 5 seconds
• Support QGNSS software, easy to set various module functions
• Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
• Onboard 4 LED indicators for module operating status
• Comes with online development resources and manual (Python examples for Raspberry Pi/Jetson Nano)

Version Options

LC29H(AA) GPS HAT
Supports positioning augmentation system and EASY technology

LC29H(DA) GPS/RTK HAT
Supports RTK Rover to realize high-precision centimeter-level positioning

LC29H(BS) GPS/RTK HAT
Supports RTK Base, can establish a base station to transmit correction data

Specifications

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards

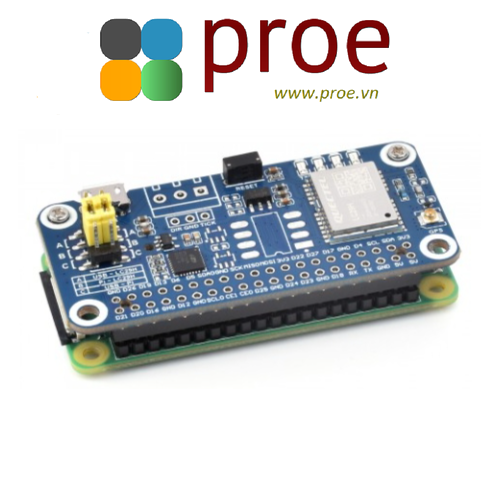

Working With Raspberry Pi Zero

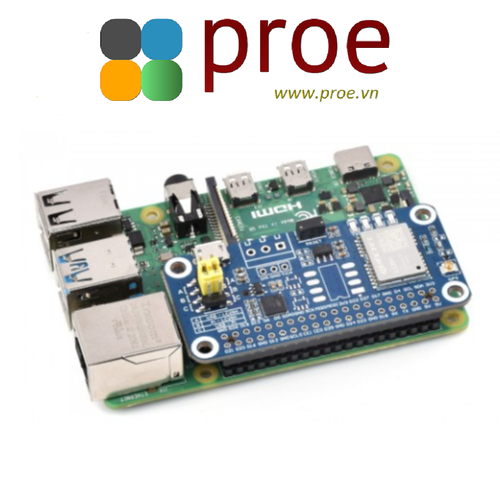

Working with Raspberry Pi 4B

* for reference only, the Raspberry Pi boards are NOT included.

Dual-Band L1+L5 Positioning Technology

Supports Simultaneous Tracking Of L1+L5 Dual-Band Satellite Signals
Reducing Multipath Effects In Urban Canyons And Improving Positioning Accuracy

RTK Mobile Station, RTK Base Station
Centimeter Positioning

The LC29H(BS) Module Is Used As An RTK Base Station, While The LC29H(DA) Module Is Used As An RTK Mobile Station

By setting up continuous running reference stations on the ground known fixed coordinates using the LC29H (BS) module, or by paid RTK base station enhanced services, transmitting GNSS calibration value to LC29H (DA) terminals which uploading rough positioning data, the terminals, with errors like multipath refraction, is able to calculate error value in real time, for centimeter-level positioning in seconds.

Concurrent Reception Of Multi-GNSS Systems

Supports GPS, BDS, GLONASS, Galileo, QZSS
And Still Retains Low Power Consumption

Supports Multi-Frequency Active
Interference Cancellation

Effectively Suppressing Or Eliminating Narrowband Signal (WiFi/2/3/4/5G) Interference To Ensure Navigation Accuracy

Assisted GNSS Support

Reducing The Time To First Fix (TTFF) With Cold Start When Powered On To 5 Seconds

Applications

Ideal For Real-Time Tracking Systems And Sharing Economy Applications, Helping To Develop Applications Such As Drones, Smart Farm Machinery, Shared Two-Wheelers, Etc.

What's On Board

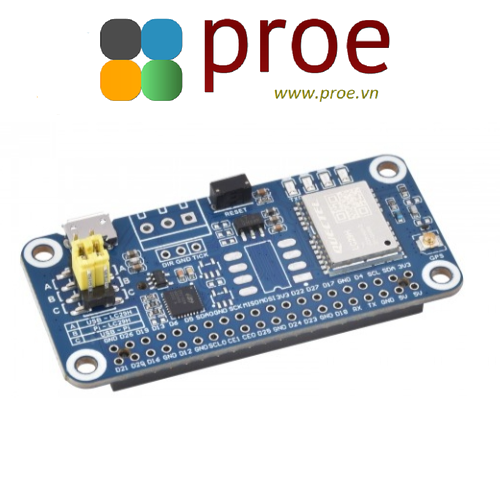

1. LC29H module
2. RT9166A-28PXL
   5V to 2.8V LDO chip
3. CP2102N
   USB to UART chip
4. Raspberry Pi 40PIN GPIO header
   for connecting with Raspberry Pi
5. UART selection jumper
   A: control the LC29H via USB to UART
   B: control the LC29H via Raspberry Pi
   C: access Raspberry Pi via USB to UART
6. IPEX 1 connector
   LC29H module antenna connector
7. Micro USB interface

8. RT9193-33PB
   5V to 3.3V LDO chip
9. RESET button
   reset the LC29H module
10. Status Indicators
    PWR: Power Indicator
    RXD/TXD: UART transceiver indicator
    PPS: GPS status indicator
11. NDC7002N
    I2C voltage translator

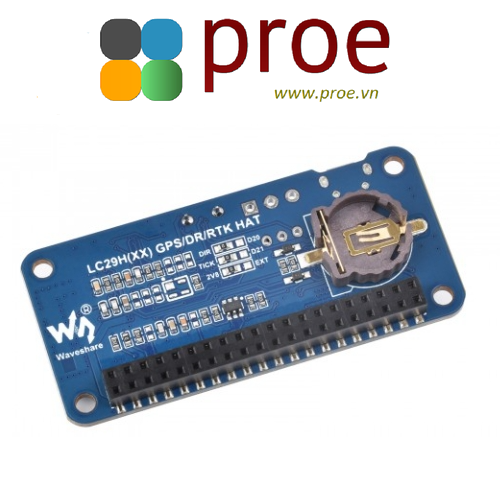

12. ML1220 Battery holder
    supports ML1220 rechargeable cell, for preserving ephemeris information and hot start
