Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card

Wiki: www.waveshare.com/wiki/USB-CAN-FD

PACKAGE CONTENT

Weight: 0.231 kg

1. USB-CAN-FD x1
2. USB type A plug to type B plug cable x1
3. 4pin cable x1
4. Screwdriver x1

DESCRIPTION

Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card, CAN/CAN FD Protocol Data Analyzer

Industrial Grade CAN FD Bus Adapter

Supports high-speed CAN FD and CAN2.0A/B data communication

Features At A Glance

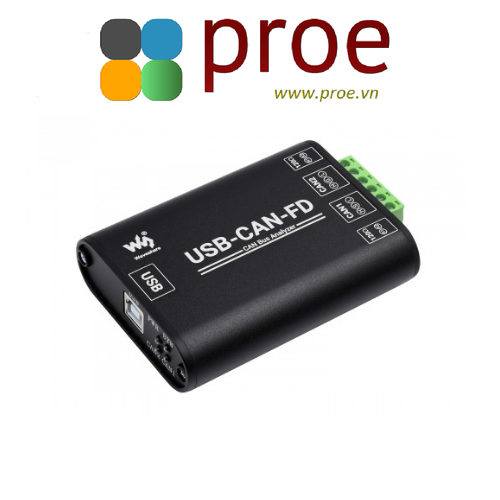

The USB-CAN-FD is an industrial-grade high-performance USB to CAN FD adapter, CAN/CAN-FD bus communication interface card, and CAN/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Supports Windows XP/7/8/10/11 system, comes with drivers, CAN FD Tools related software, secondary development examples, and tutorials.

It can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of CAN/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN/CAN FD bus communication.

Specifications

Supports Protocol Conversion
Between USB And CAN/CAN FD Bus

Onboard High-Speed USB2.0 Interface And 2-Ch CAN/CAN FD Bus Interfaces, Support Bi-Directional Transmission, Can Work Independently Without Interfering With Each Other

Programmable Baud Rate, Automatic Detection

CAN Baud Rate Is Configurable In The Range Of 100Kbps~5Mbps
Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool

Supports Decoding And Analyzing For
Multiple CAN Protocols

Supports CAN 2.0A, CAN 2.0B, ISO11898-1, And CAN FD Protocol Specification V.1.0, Supports Standard And Extended Frames

Supports Multi Development Environments

Provides Examples For Secondary Development Projects On Various Mainstream Development Platforms: C#, VC, Delphi, Qt, LabVIEW, Python/Python-Can

High-Performance Hardware Solution

Adopts Microchip Original Controller And 32-Bit MIPS M4K® Core, Up To 80MHz Frequency. High Performance, Stable And Reliable

With Electrical Isolation And Multiple
Protection Circuits

Adopts High-Speed Signal Isolators, DC-DC Dual Power Isolation, USB, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability

One PC With Multiple Devices

Supports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.

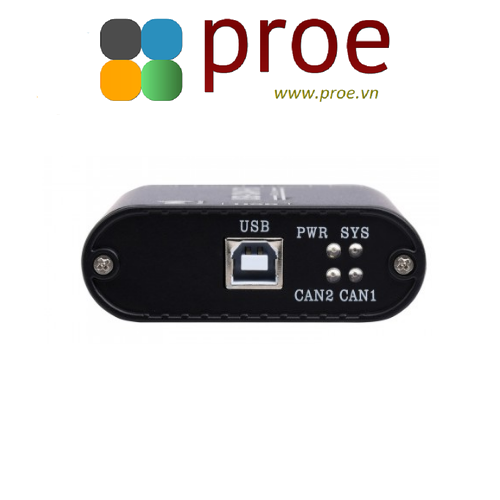

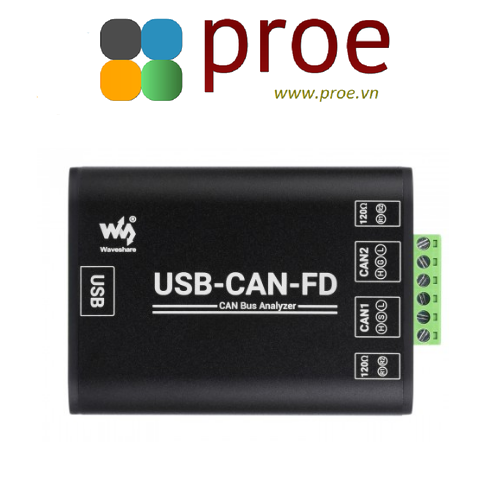

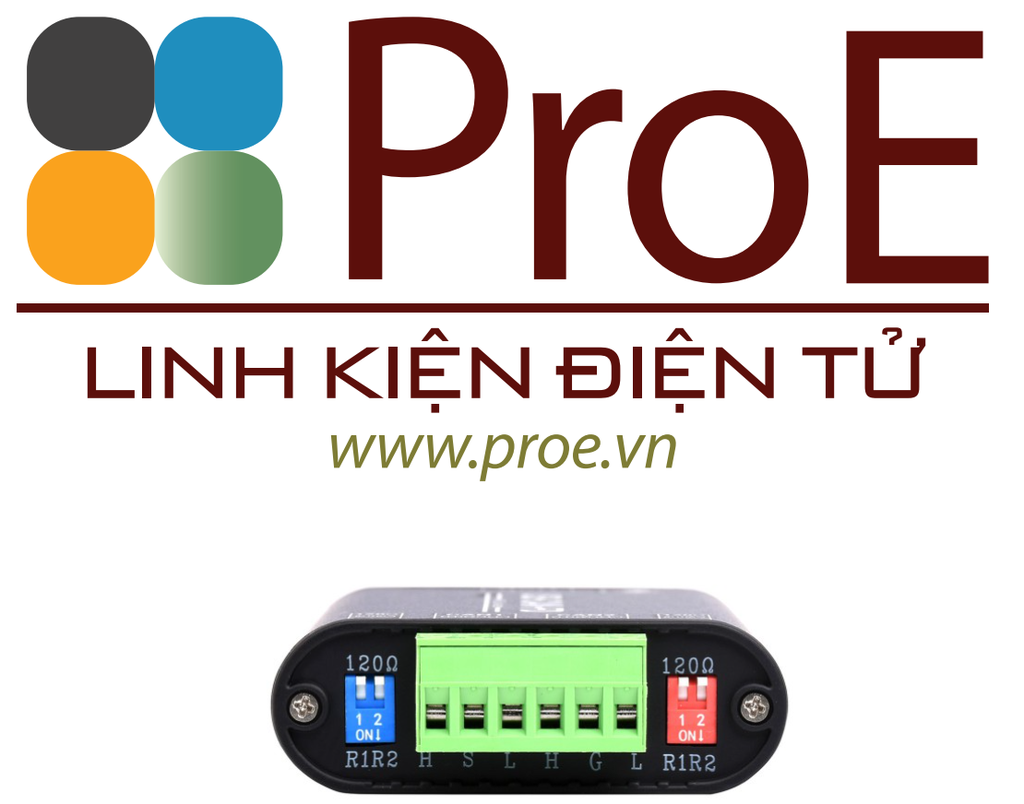

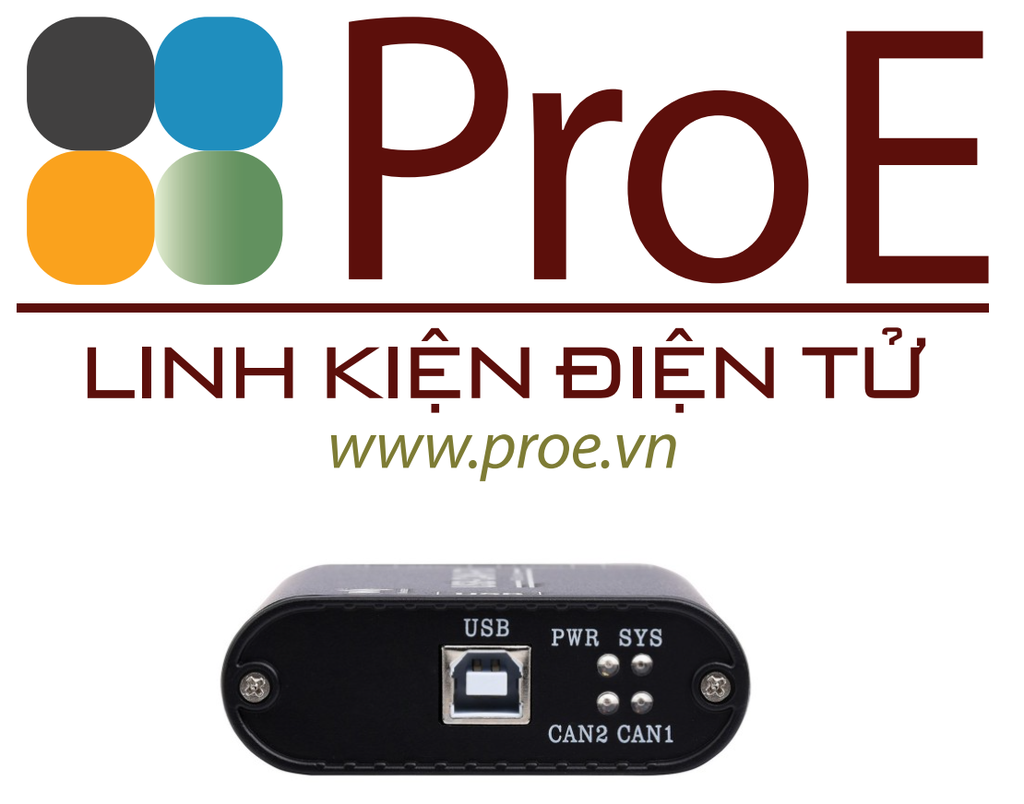

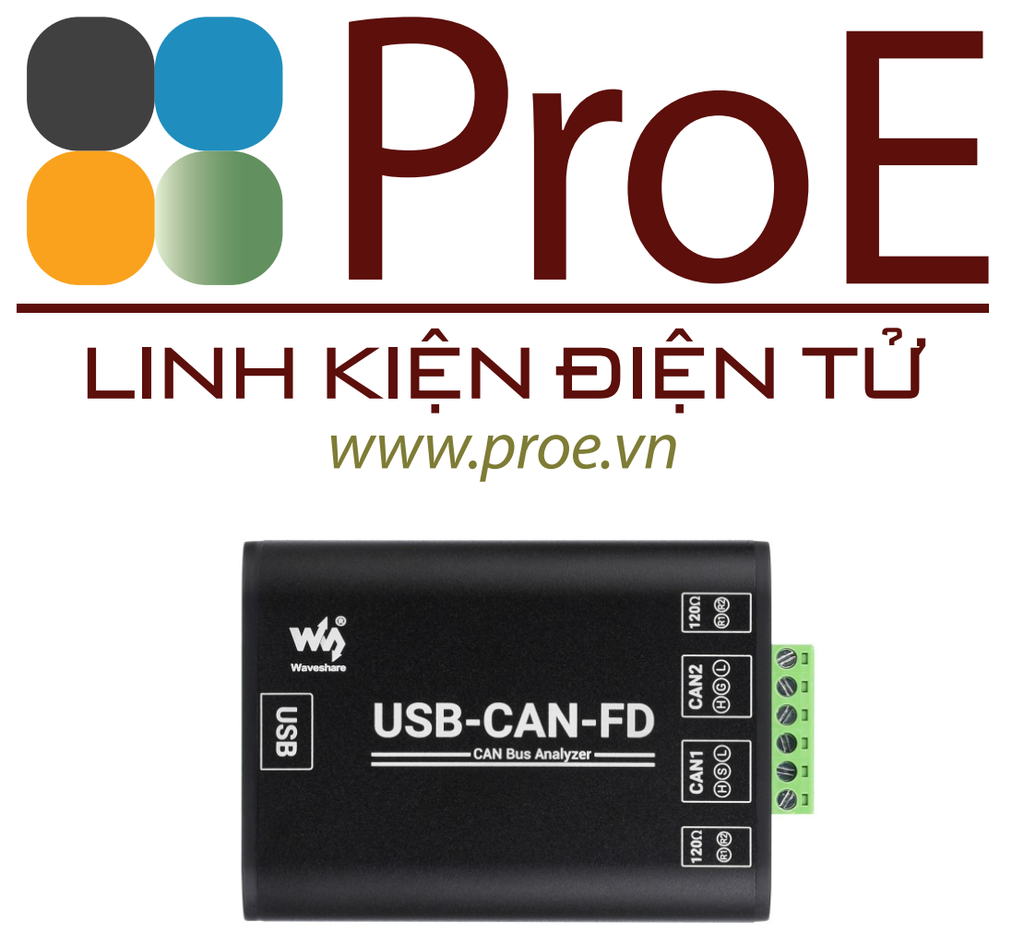

Interface Introduction

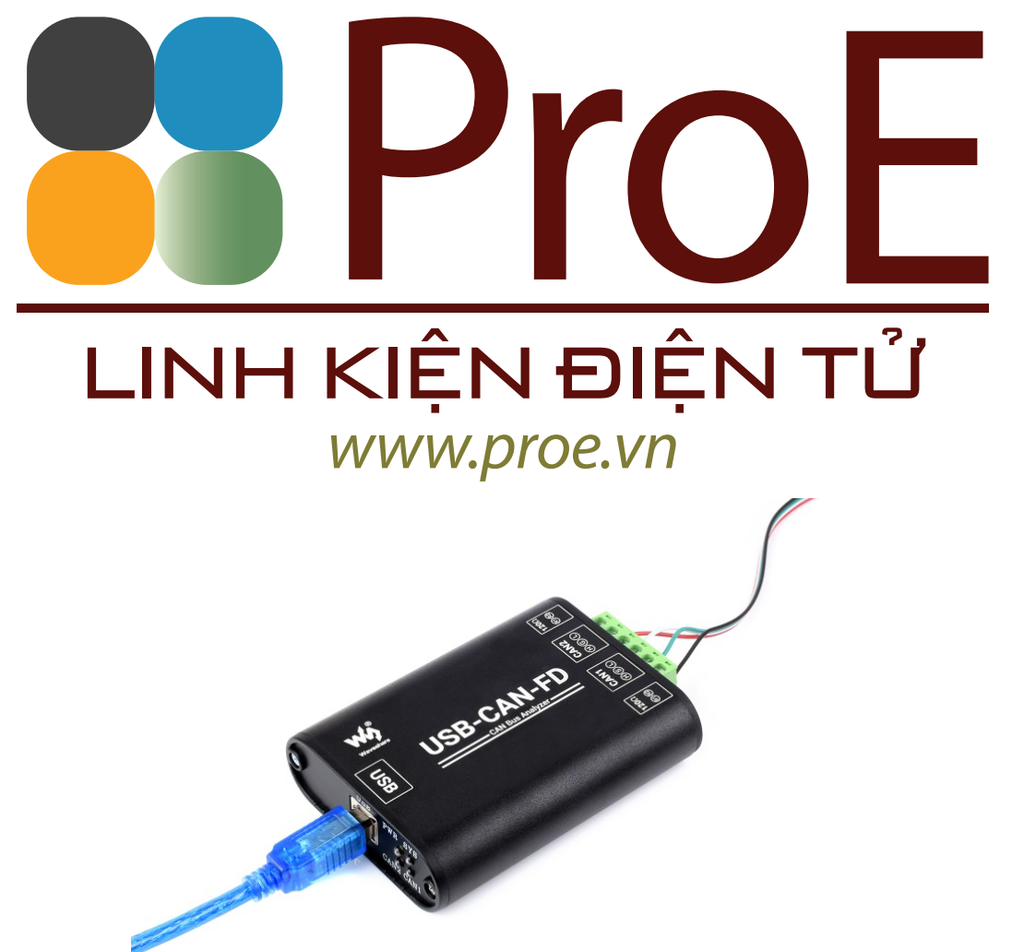

Application Scenarios

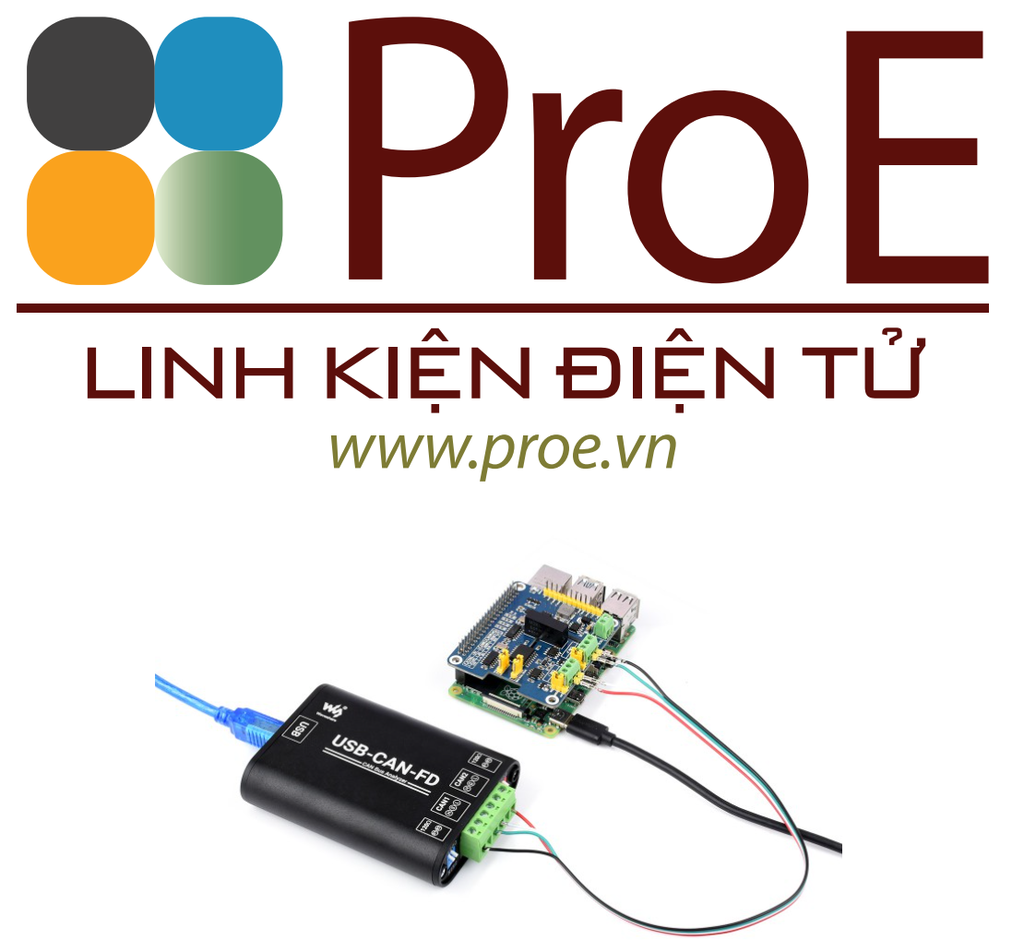

Application Example

* for reference only, the Raspberry Pi 4B and 2-CH CAN FD HAT are Not included.

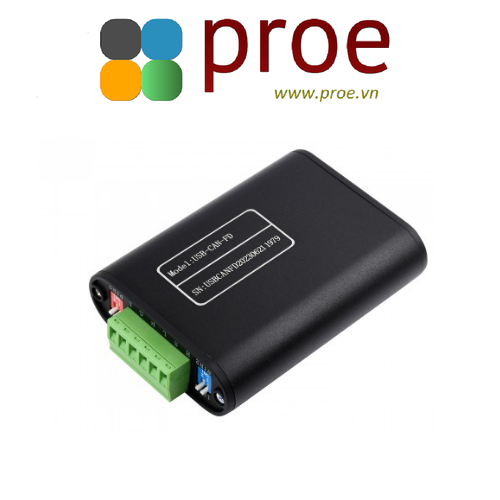

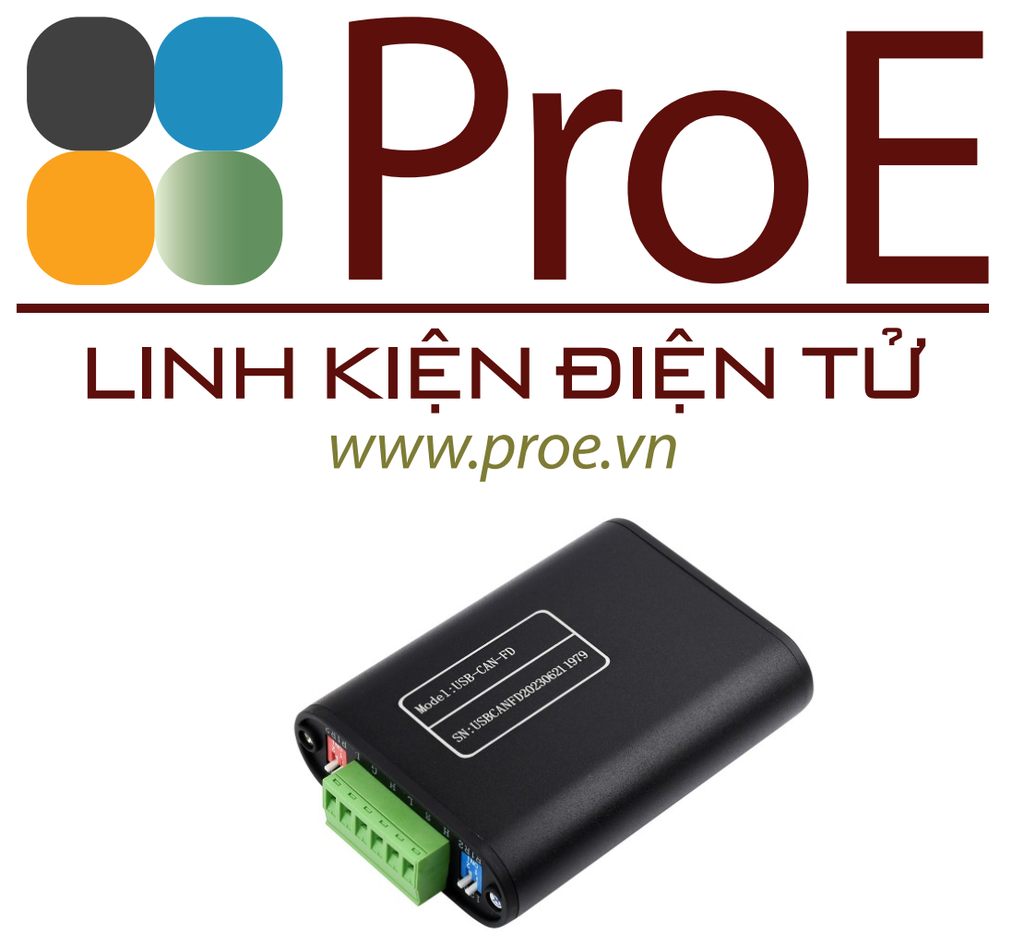

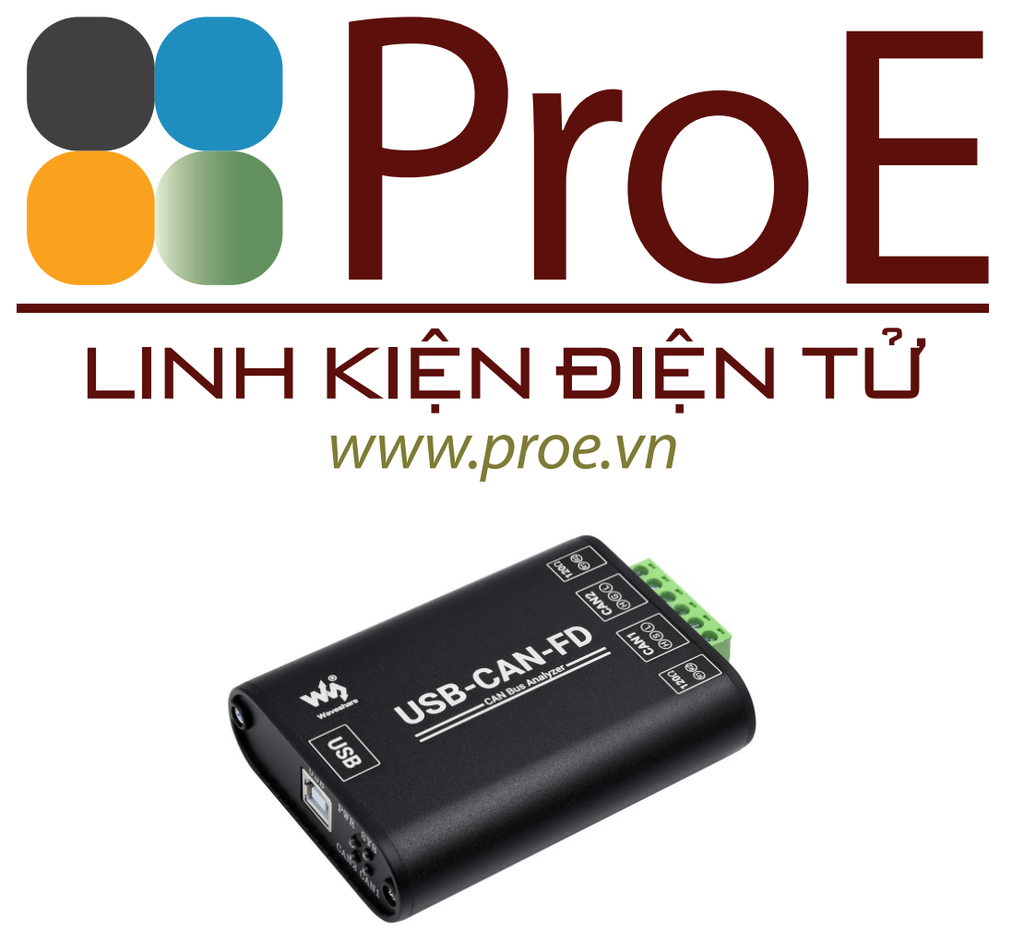

Product Show

Outline Dimensions
