IMX219-77 Camera

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-77_Camera

IMX219-77 Camera Features

• Supports NVIDIA Jetson Nano Developer Kit
• 8 Megapixels
• Sensor: Sony IMX219
• Resolution: 3280 × 2464
• Lens specifications:
  • CMOS size: 1/4inch
  • Aperture (F): 2.0
  • Focal Length: 2.96mm

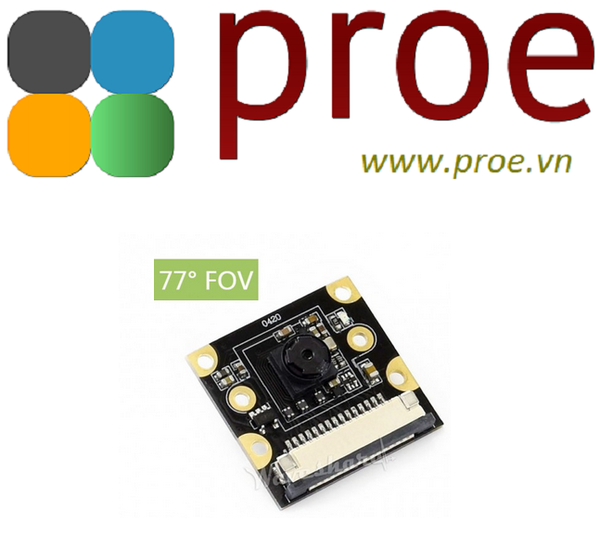

  • Angle of View (diagonal): 77 degree
  • Distortion: < 1%
  • Lens dimensions: 6.5mm × 6.5mm
• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
• Dimension: 25mm × 24mm

Applications

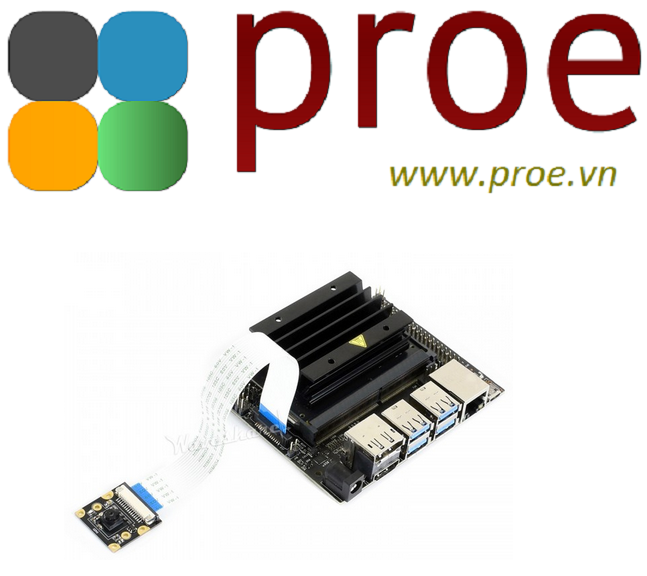

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

• Face recognition
• Road mark detection
• License plate recognition
