High Quality Camera For CM3 / CM3+ / Jetson Nano, 12.3MP IMX477 Sensor, Supports C / CS Lenses

  • Mã sản phẩm: IMX477 12.3MP Camera
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.850.000₫
PACKAGE CONTENT

Weight: 0.027 kg

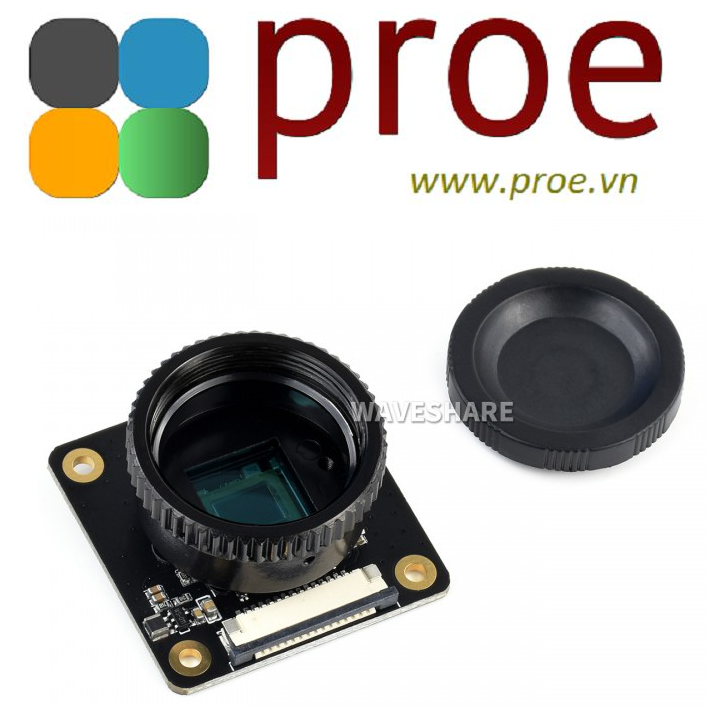

  1. IMX477 12.3MP Camera main unit
  2. C-CS adapter
  3. Dust cap
  4. FFC ribbon

DESCRIPTION


High Quality Camera For Raspberry Pi Compute Module / Jetson Nano, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- And CS-Mount Lenses

HIGH QUALITY 12.3MP CAMERA

High Resolution High Sensitivity IMX477 Sensor

Supports CM3 / CM3 Lite / CM3+ / CM3+ Lite / Jetson Nano

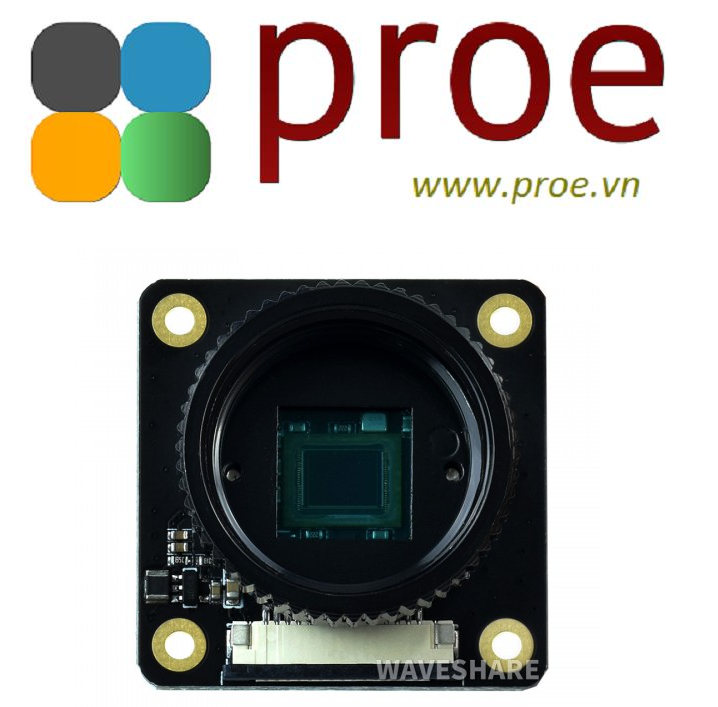

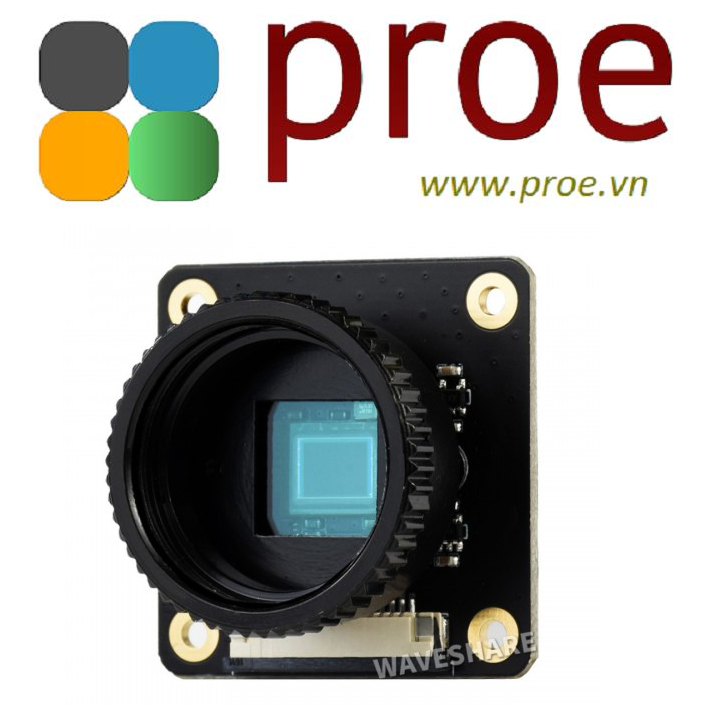

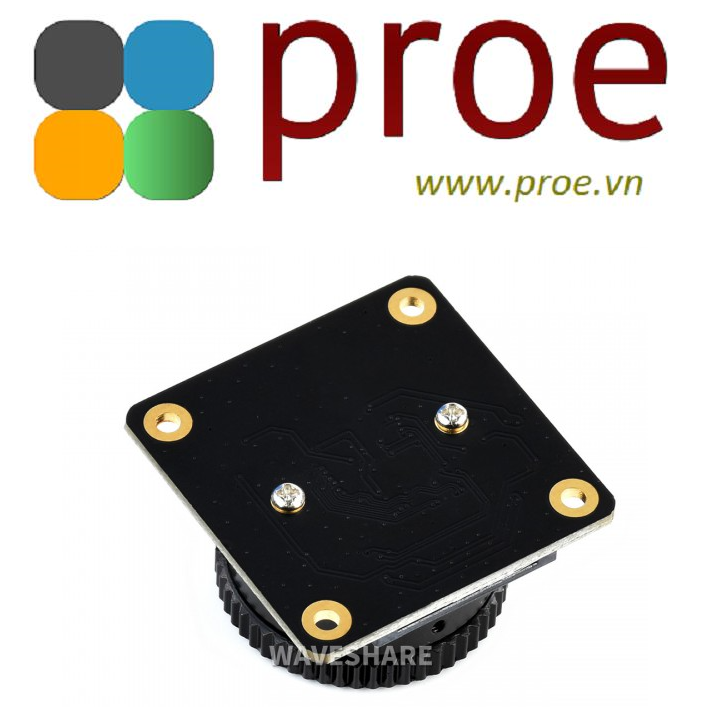

The IMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.

The IMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

Specifications

SENSOR Sony IMX477R
12.3MP, 4056 (H) × 3040 (V)
7.9mm CMOS diagonal size
1.55µm (H) × 1.55µm (V) pixel size
OUTPUT RAW12 / 10 / 8, COMP8
BACK FOCUS Adjustable
LENS SUPPORT C-mount / CS-mount (C-CS adapter included)
IR CUT FILTER Integrated

Higher Resolution, Better Imaging Effect

Compared To 8MP Of Normal Raspberry Camera, This High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect

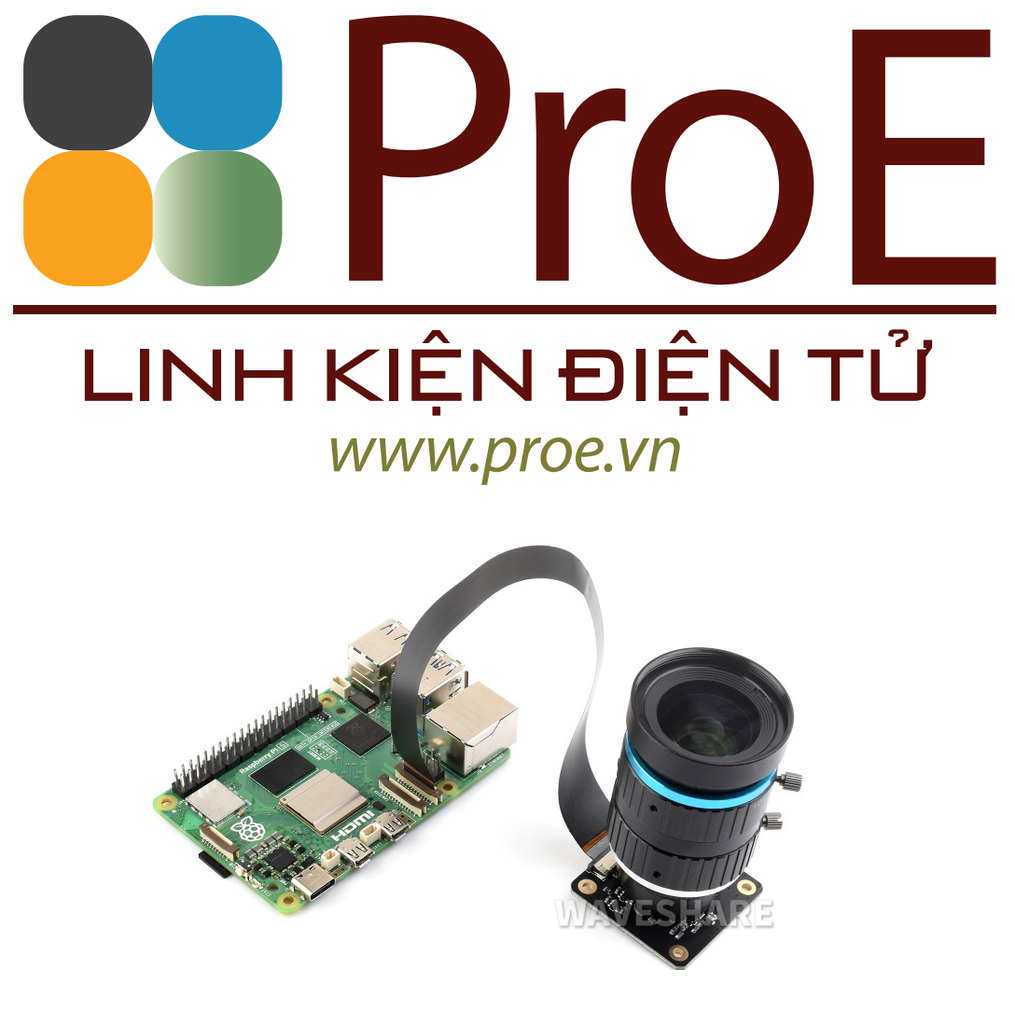

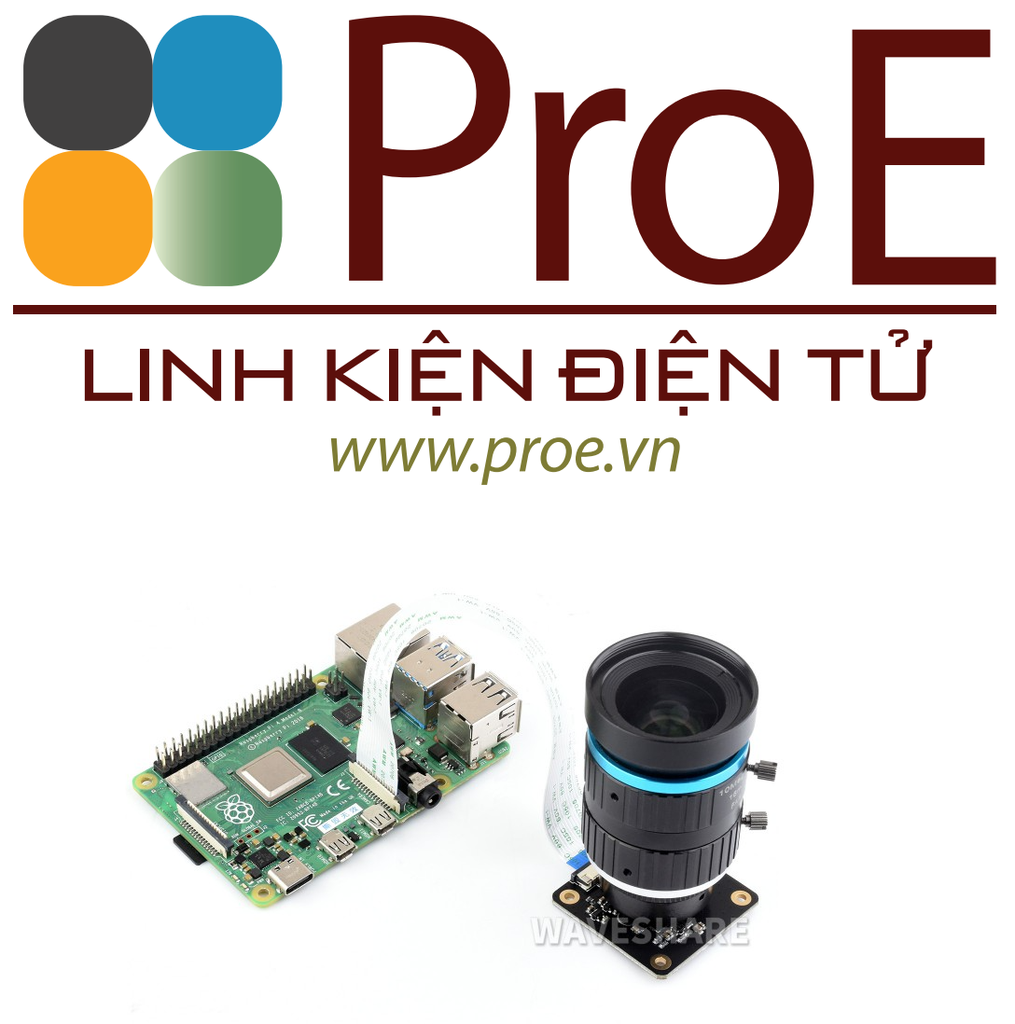

With Mounted Lens

C-Mount 16mm Telephoto Lens (C-CS Adapter Required)

CS-Mount 6mm Wide Angle Lens (C-CS Adapter Should Be Removed)

Lens Selection


6mm Wide Angle Lens

16mm Telephoto Lens

25mm Telephoto Lens

35mm Telephoto Lens

8-50mm Zoom Lens
IMAGE FORMAT 1/2" 1" 2/3" 1" 1/2.3"
FOCAL LENGTH 6mm 16mm 25mm 35mm 8-50mm
APERTURE F1.2 F1.4-16 F1.4-16 F1.7-16 F1.4
MOUNT CS-mount C-mount
ANGLE OF VIEW 63° 1"      44.6° × 33.6°
2/3"      30.0° × 23.2°
1/1.8"      24.7° × 18.6°
1/2"      21.8° ×16.4°
2/3" 20.2° × 15.1°
1/1.8" 16.5° × 12.4°
1/2" 14.5° × 10.5°
1" 20.9° × 15.8°
2/3" 14.4° × 10.8°
1/2" 10.5° × 7.9°
45°-5.35°
BACK FOCUS 7.53mm 17.53mm
OPTICAL LENGTH - 67.53mm - - -
DISTORTION - 1"(-0.7%)
1/2"(-0.5%)
1/3"(-0.15%)
0.05% 0.35% -
M.O.D. 0.20m 0.20m 0.25m 0.30m 0.20m
DIMENSIONS Φ30.00 × 34.00mm Φ39.00 × 50.00mm Φ34.00 × 34.00mm Φ35.00 × 34.00mm Φ40.00×68.30mm
OPERATION Manual aperture adjustment
WEIGHT 53g 133.7g 82g 78g 148g

Working With Compute Module

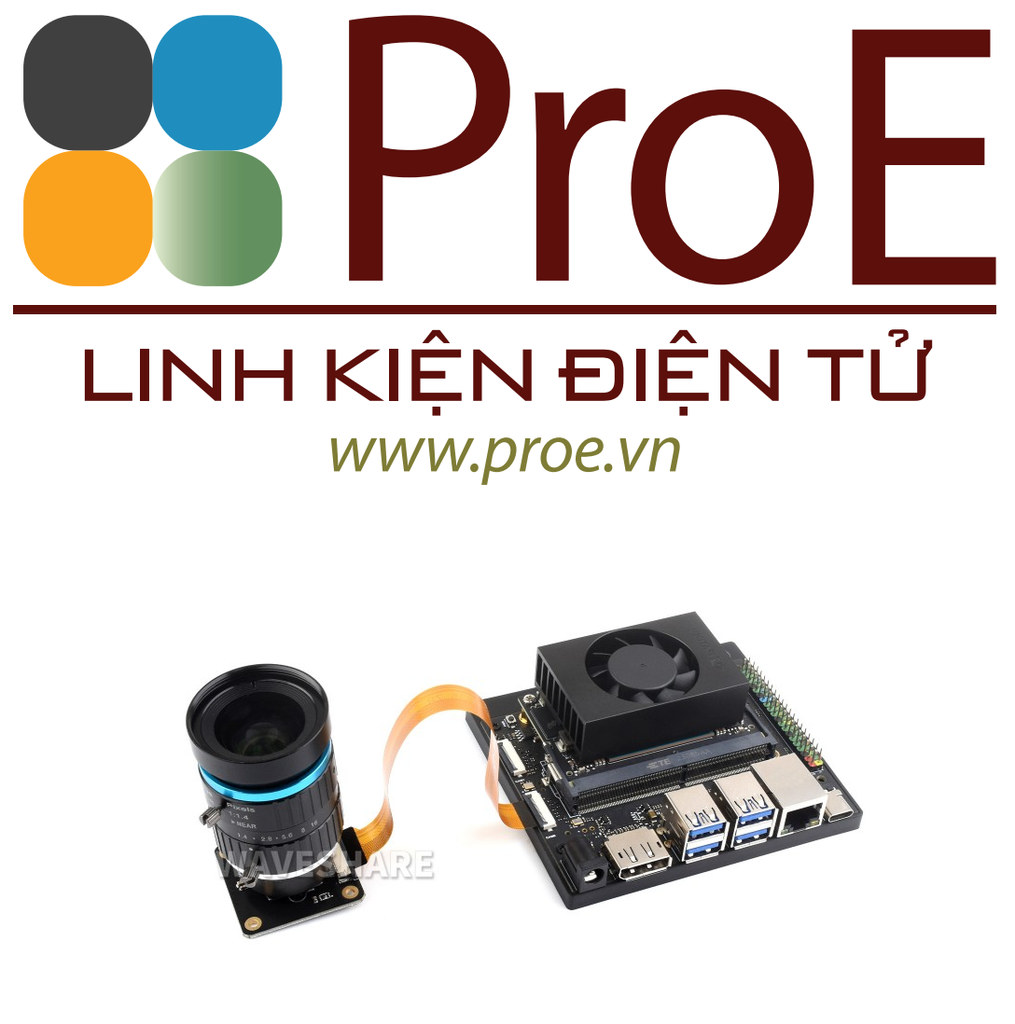

Working With Jetson Nano

  • Raspberry Pi Compute Module, Jetson Nano, and lenses in the photos are NOT included.
  • Specific driver is required for Jetson Nano to use the IMX477 camera.

Resources & Services

Wiki: IMX477_12.3MP_Camera
