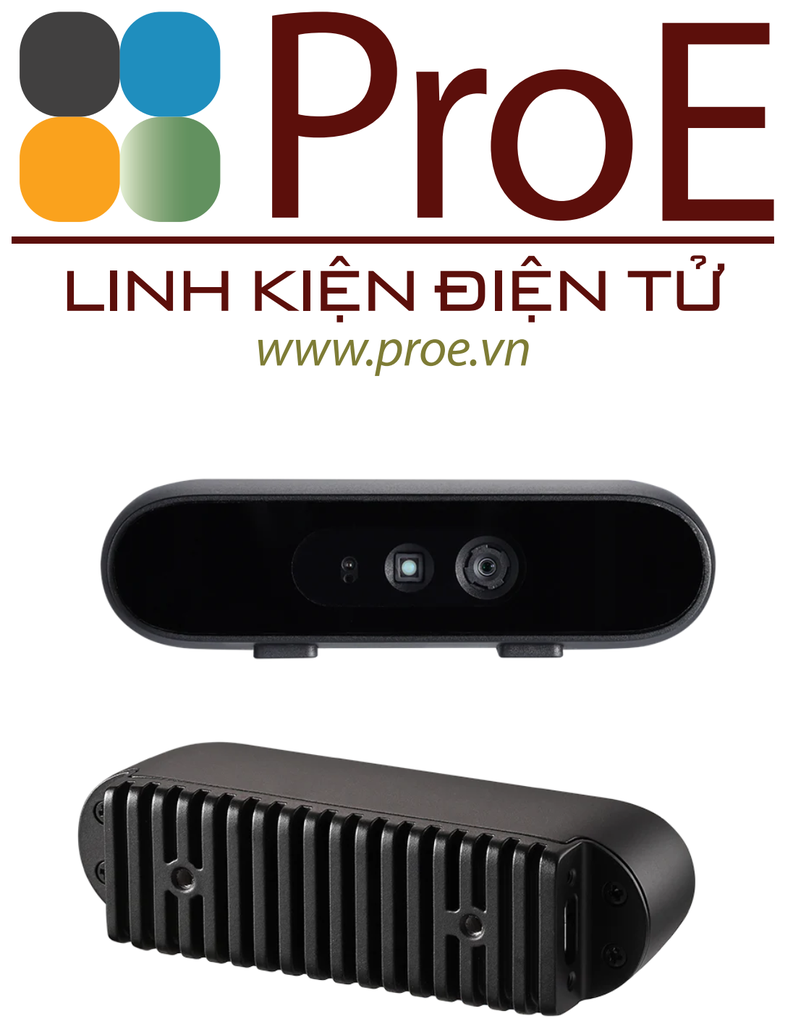

Gemini 336

Orbbec Gemini 336 is the latest addition to Orbbec's Gemini 330 series.
Building on the exceptional depth performance and quality of the Gemini 335, the Gemini 336 enhances active infrared imaging by filtering out the visible light spectrum. This improvement ensures stable and precise imaging even in challenging lighting conditions, such as indoor reflective surfaces causing glare, brightly-lit scenes with shadows, and strong outdoor lighting.

Operating EnvironmentIndoor / Outdoor

Depth TechnologyActive & Passive Stereo

Depth Range0.10 - 20m+

Ideal Range0.26 – 3.0m

IMUSupported

Camera DriverUVC

SDKOrbbec SDK

Baseline50 mm

Spatial Precision≤ 1.5% (1280 x 800 @ 2m & 90% x 90% ROI)

Depth FoV90° x 65° @ 2m (1280 x 800）

Depth Resolution and Frame RateUp to 1280 x 800 @ 30fps

Depth Shutter TypeGlobal Shutter

RGB FoV86° x 55°

RGB Resolution and Frame RateUp to 1920 x 1080 @ 30fps

RGB Image FormatYUYV & MJPEG

RGB Shutter TypeRolling Shutter

Power supplyDC 5V & ≥ 1.5A

Power Consumption＜ 3W

IR Filter CoverIR-Pass

ConnectorUSB 3.0 & USB 2.0 Type-C

ProtectionIP5X

Multi-device Sync port8-pin

Operating Temperature-10 - 45℃

Weight99g

Dimensions (W*H*D)90 mm x 25 mm x 30.7 mm

InstallationBottom 1x 1/4-20 UNC, Max Torque 4.0 N.m; Back 2x M3, Max Torque 0.4 N.m
