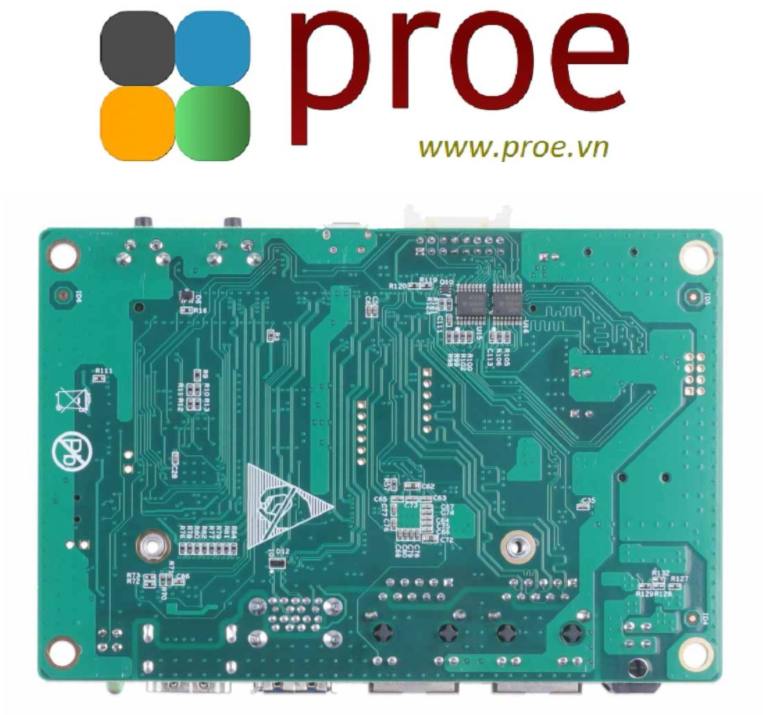

EX1-Dual ethernet ports Carrier Board for Jetson Nano/Xavier NX/TX2 NX with dual ethernet ports, SIM card slot, and Rich Pins (I2C, UART, GPIO

  • Mã sản phẩm: 102110645 EX1-Dual
  • Nhà sản xuất: Seeed Technology Limited
  • Website hỗ trợ: https://www.proe.vn
4.900.000₫

PRODUCT DETAILS

Note

  • The carrier board is specially designed for working with Jetson NanoXavier NX / TX2 NX modules and we will not include them inside.

  • We will not include RTC 3V battery (CR12220).

  • We will not include a power cord.

Features

  • 5V  power jack

  • TF card slot

  • Micro HDMI

  • Dual Gigabit Ethernet Ports: RJ45 Connector

  • Power, recovery and reset button

  • Power light Indicator

Description

EX1-Dual ethernet ports is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing Micro SD card slot, Micro HDMI, Gigabit Ethernet, USB3.0, USB2.0,  GPIOs, I2C and PWM Fan. Buttons and Light indicator onboard help developers quickly start their projects.

Basically, it works with an NVIDIA Jetson Nano /NVIDIA Xavier NX / NVIDIA Jetson TX2 NX module to achieve graphic AI applications. To be more specific, with the NVIDIA module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It is suitable for intelligent edge devices such as urban smart parking lot management, robots, drones, smart cameras, and portable medical equipment. Also, it is good for portrait tracking and suspicious object detection in special fields. After learning and training, it can be deployed to image terminal guidance, underwater facility inspection and rescue, etc. With the NVIDIA module and functional extension carrier board, people can quickly build efficient and high-performance video analysis applications and realize the rapid development and deployment of high-performance video recognition.

Application

  • Quick start

  • Project evaluation

  • Learning

  • Computer Vision

  • Drone

Specifications

EX1-Dual ethernet ports Connector Summary:

Connector

Description

HDMI Port

1* HDMI Connector

USB 3.0 Type A

1*USB 3.0 Type-A Connector

Ethernet

1*RJ45 Gigabit Ethernet Connector (10/100/1000)

FAN Connector

1*Picoblade Header

Multifunctional port

16 PIN

NVIDIA Jetson Nano/NX/TX2 NX connector

1* SODIMM connector, 260-pin

USB 2.0

1*USB 2.0 connector

USB Micro Type B

1*USB Micro B, RA Female

5V Power Jack

5V

Note

  • If you want to enter recovery mode, follow the below instruction:
  1. Connect the module to the board and the power on,
  2. Press and hold the’REC/RST’ button for 5-10s and release,
  3. Connect to the host machine via Micro USB on carrier board.



Comparison among EX series carrier board

Feature EX1 carrier board EX2-TX2 carrier board  EX1-Dual ethernet ports carrier board
Module Compatibility  NVIDIA® Jetson™ Nano/NX/TX2 NX  NVIDIA® Jetson™ TX series  NVIDIA® Jetson™ Nano/NX/TX2 NX
So-DIMM 260 Pin 400 Pin 260 Pin
PCB Size / Overall Size 100mm*80mm 86mm*60mm 119mm*80mm
Display   1* Micro HDMI 1* Micro HDMI 1*HDMI
CSI Camera 1*CSI / /
Ethernet 1x Gigabit Ethernet
(10/100/1000M)
1x Gigabit Ethernet
(10/100/1000M)
2x Gigabit Ethernet
(10/100/1000M)
USB 4* USB 3.0 Type A
(Integrated USB 2.0);
2* USB 3.0 Type A
(Integrated USB 2.0);
1* USB 3.0 Type A
(Integrated USB 2.0);
1* USB 2.0
(4 Pin connector)
  1* USB 2.0
1* USB Micro B 1* USB Micro B 1* USB Micro B
SATA / 1 SATA /
M.2 Key M 1*M.2 Key M / /
M.2 Key E / / /
mPCL 1* mPCIe 1* mPCIe /
TF_Card / 1* TF_Card 1* TF_Card
SIM 1* Sim card slot 1* Sim card slot /
USB WIFI Mode 1*USB 2.0 Wifi (Pre-installed ) / /
FAN 1* FAN(5V PWM) 1* FAN(5V PWM) 1* FAN(5V PWM)
CAN 1* CAN 2* CAN /
Multifunctional port 1* 24-Pin 1* 26-Pin 1* 16-Pin
Other multifunctional port 10 Pin (I2C, I2S, GPIOs) 422(UART 5 Pin) /
RTC / / Battery not included
Supercapacitor 1* Supercapacitor 1* Supercapacitor /
Power  DC 12V/5V DC 12V DC 5V
Other Power 1* 4 Pin POE 1* 2 Pin SATA 5V Power /
Operating Temperature -40° to +85° -45° to +85° -45° to +85°


Hardware Overview

Part List

1 x EX1-Dual ethernet ports Carrier Board

1 x 5V Power adapter (cord not included)

ECCN/HTS

HSCODE 8471504090
UPC

LEARN AND DOCUMENTS

Documentations

EX1-Dual ethernet ports Pin Description. pdf
