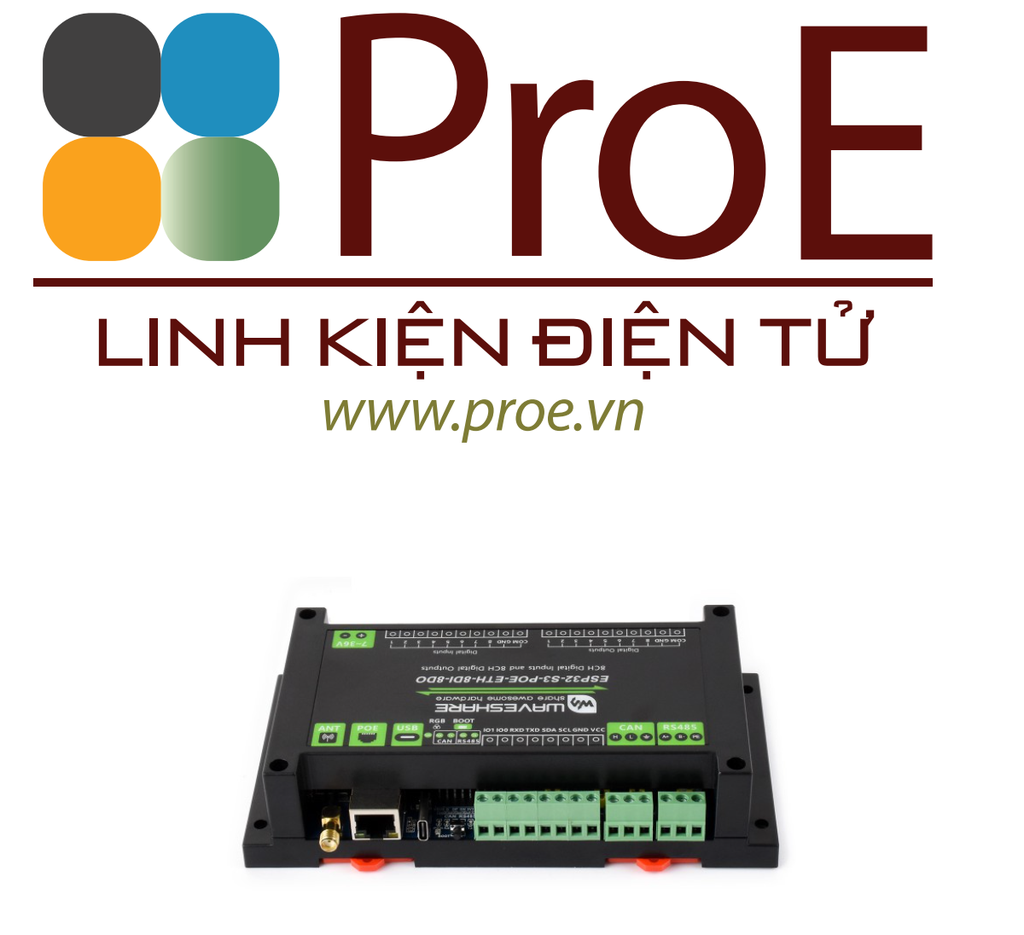

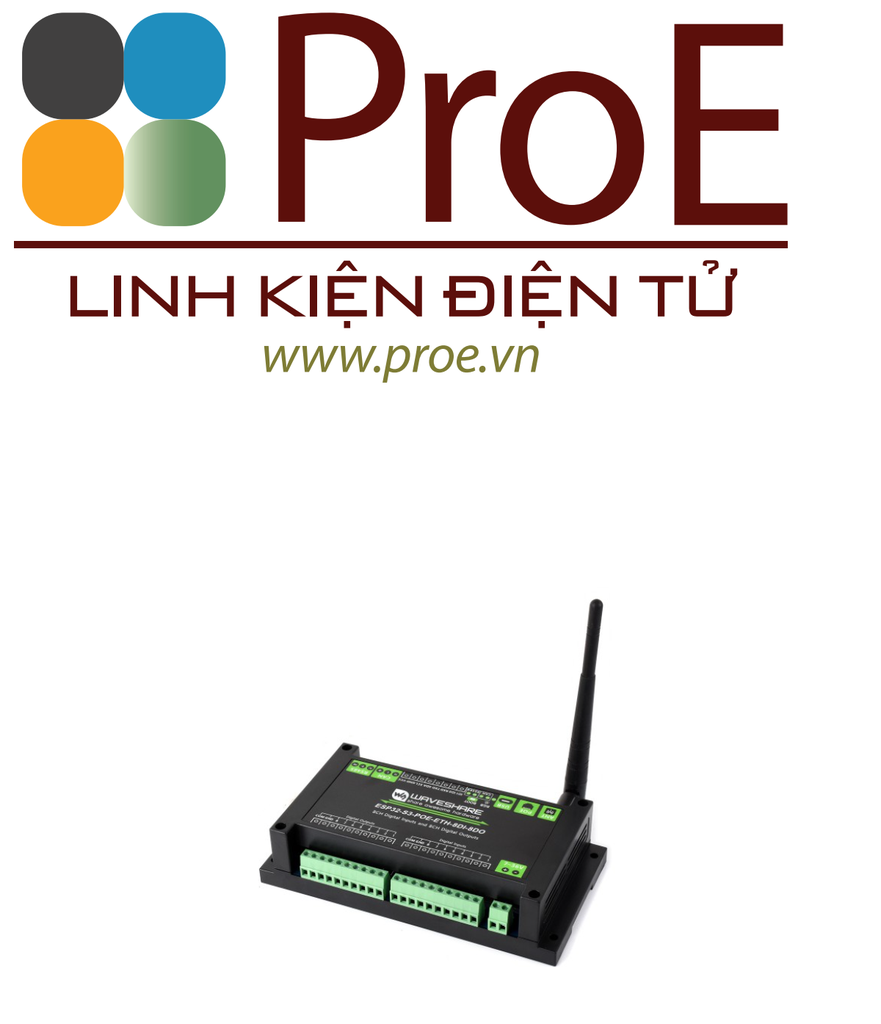

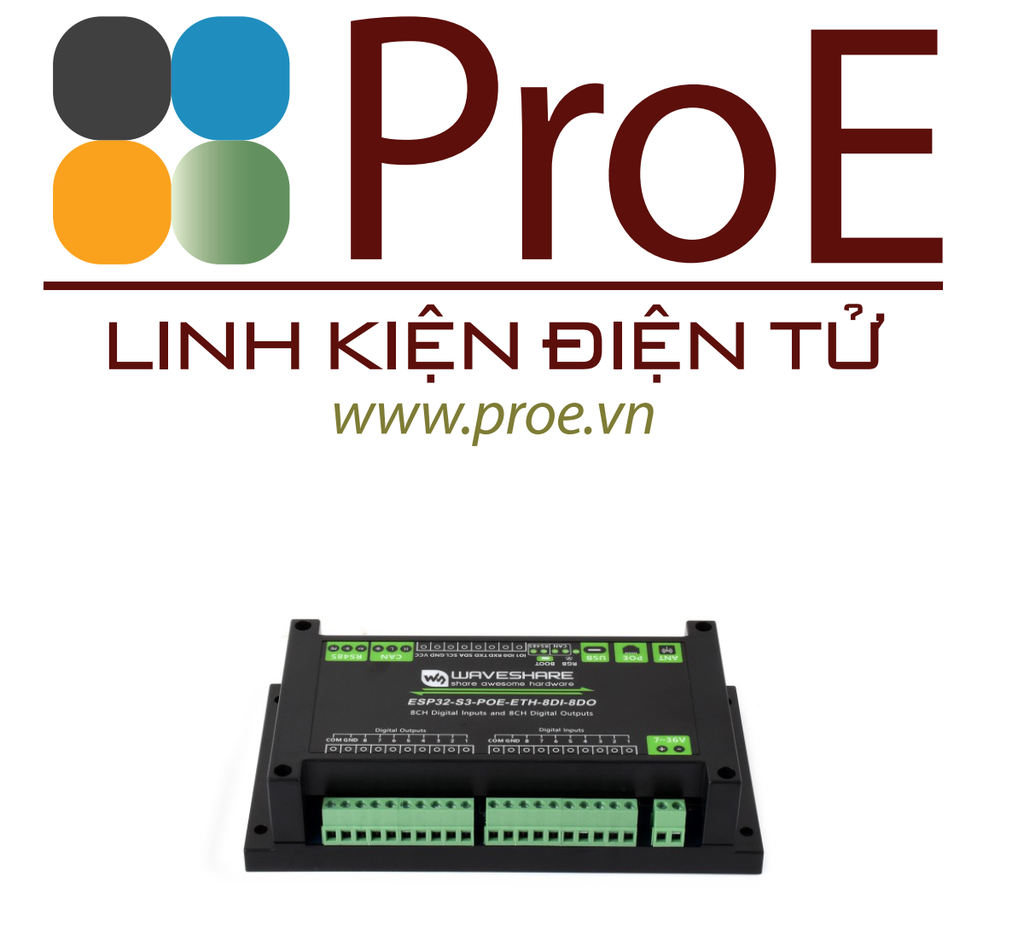

ESP32-S3-POE-ETH-8DI-8DO

Industrial ESP32-S3 Control Board With 8-Channel Digital Input & Output, Built-in Xtensa 32-bit LX7 Dual-core Processor, Up To 240MHz, With Multiple Isolation Protection Circuits

Industrial 8-Ch ESP32-S3 Digital Input & Output Controller

Supports WiFi / Bluetooth / RS485 / CAN / Ethernet Port, etc.

Built-in protection circuits such as power isolation and optocoupler isolation,
Safe & Stable & Reliable

Features

• Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with excellent RF performance
• The outputs adopt Darlington transistors with optocoupler isolation, delivering higher drive capability with a sink current of up to 500 mA, and feature built-in flyback diode protection
• Supports passive and active digital input, with bi-directional optocoupler isolation. The digital output supports digital input linkage control
• Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
• Onboard isolated CAN interface, for connecting to various CAN devices
• Onboard pin header, allowing access to other devices
• Onboard USB Type-C port for power supply, firmware downloading and debugging
• Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
• Onboard RTC chip, supports scheduled tasks
• Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
• Built-in PoE module for PoE capability (compliant with IEEE 802.3af standard)
• Onboard optocoupler isolation to prevent interference from external circuit
• Onboard digital isolation to prevent interference from external signal
• Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
• Onboard TF card slot for external TF card storage of images and files
• Built-in buzzer, RGB LED, power supply, RS485 and CAN TX/RX indicators for monitoring the operating status of the devices
• Rail-mounted protective case, easy to install, safe to use

Specifications

Based on ESP32-S3, Designed
for AIoT market

Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism, Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication

Onboard multiple isolation protection circuits

Multiple protections, more safe and reliable

Fully Isolated Digital Input

Fully Isolated Digital Input/Output, with Bi-directional Optocoupler isolation,
supports Passive and Active Inputs (PNP or NPN Type)

Fully Isolated Digital Output

Adopts Darlington transistor open-collector output, single-channel sink current up to 500 mA, capable of directly driving relays

Application scenarios

Supports RS485, Bluetooth, or Wi-Fi Networking for Remote Control

Supports Arduino IDE

Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

built-in PoE module

providing both network connection and power supply in one cable

* the switch shown in the picture is NOT included.

Application Examples

Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight
MQTT Protocol To Achieve Data Visualization Service

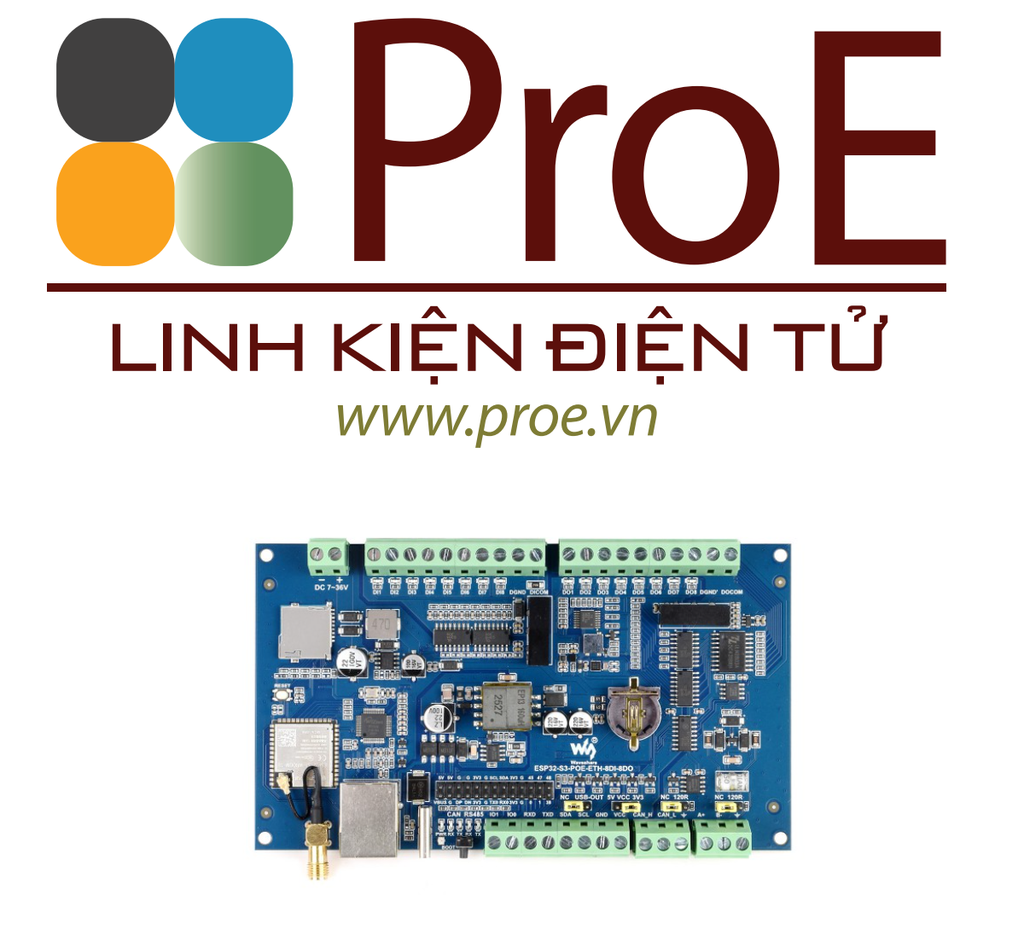

What's On Board

1. ESP32-S3-WROOM-1U-N16R8
   Adopts ESP32-S3 series chip with Xtensa 32-bit LX7 dual-core processor, built in 16MB Flash and 8MB PSRAM
2. W5500
   Extends 10/100 Mbps Ethernet via SPI Interface
3. RESET Button
4. TF Card Slot
   Supports external TF card for storing images and files
5. Power Module
6. Bi-directional Optocoupler Isolation
7. CAN Transceiver Chip
8. Onboard TVS (Transient Voltage Suppressor)
   Effectively suppresses surge voltages and transient spikes in the circuit
9. Optocoupler & Digital Isolation
   Prevents interference from external signal
10. RS485 Transceiver Chip
11. Darlington Transistor
    sink current up to 500mA, with built-in flyback diode protection
12. Power Isolation
    Provides stable isolated voltage, no extra power supply required for the isolated terminal
13. Digital Output Screw Terminals
14. Buzzer
15. TCA9554PWR
    I/O expander for controlling digital outputs
16. RTC Battery Holder
17. Power Isolation
    Provides stable isolated voltage, no extra power supply required for the isolated terminal
18. Digital Input Screw Terminals

19. Power Supply Screw Terminal
    Supports DC 7~36V wide voltage input
20. External Antenna Connector
    SMA female connector, for WiFi and Bluetooth wireless communication
21. Ethernet Port
22. PoE Module
    for PoE capability, supports IEEE 802.3af standard
23. USB Type-C Port
    for module power supply, firmware downloading and USB communication
24. WS2812 RGB LED
25. BOOT Button
26. LED Indicators
    PWR: power indicator
    RXD: RS485 / CAN RX indicator
    TXD: RS485 / CAN TX indicator
27. Pin Header
    for connecting other devices
28. USB Type-C Power Output Header
    Provides external power supply via USB Type-C port
29. Multi-Function Terminal
30. Voltage Level Selection for Multi-Function Terminal
    for switching the communication logic level and output voltage of the multi-function terminal
31. CAN Terminal
    for connecting to external CAN devices
32. CAN Matching Resistor
    Onboard reserved 120R matching resistor, enabled via jumper
33. RS485 Terminal
    for connecting to external RS485 devices
34. RS485 Matching Resistor
    Onboard reserved 120R matching resistor, enabled via jumper

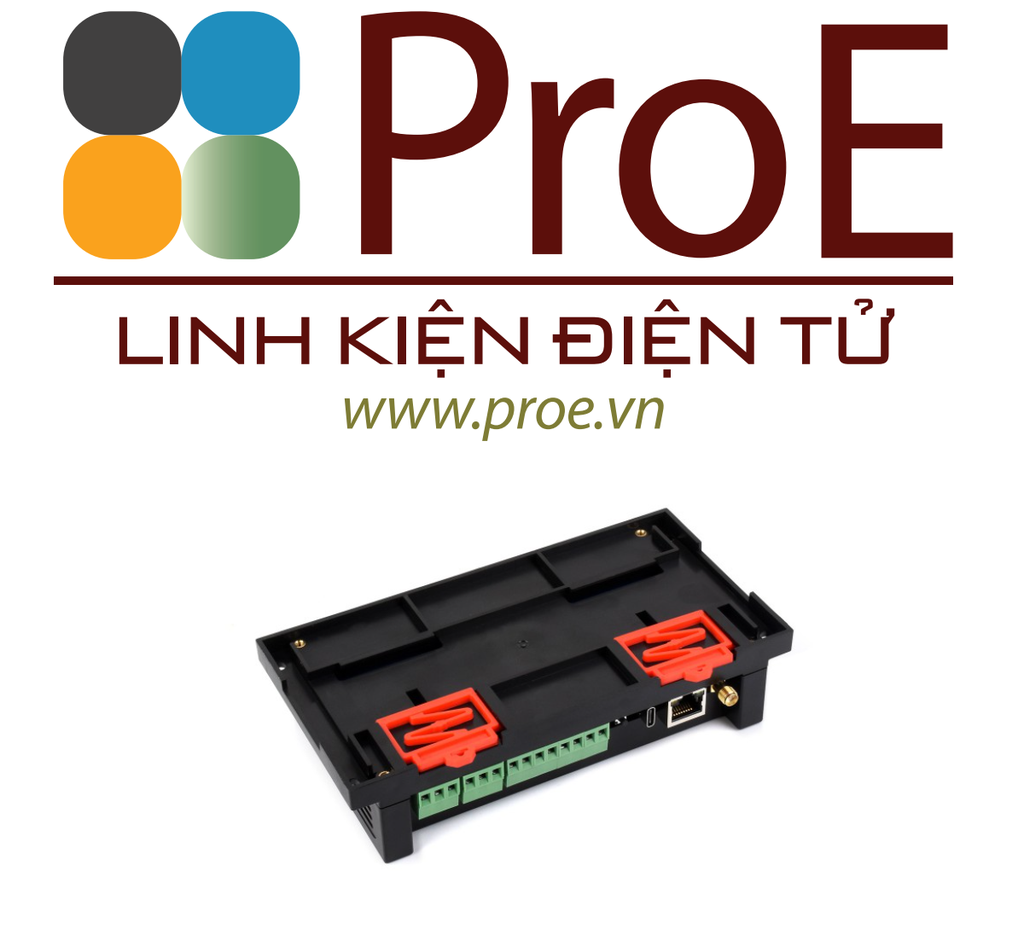

Enclosure Design

Protection Enclosure With 35mm Rail-Mount Support, Easy To Install, Safe To Use

Outline dimensions

Support Batch Customization

Support software and hardware customization
Including hardware interface, LOGO, label, case and web page, etc.

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-POE-ETH-8DI-8DO
