e-CAM85_CUHSB

Sony® Starvis IMX715 10G Holoscan Camera for NVIDIA® Jetson AGX Thor / ORIN ™

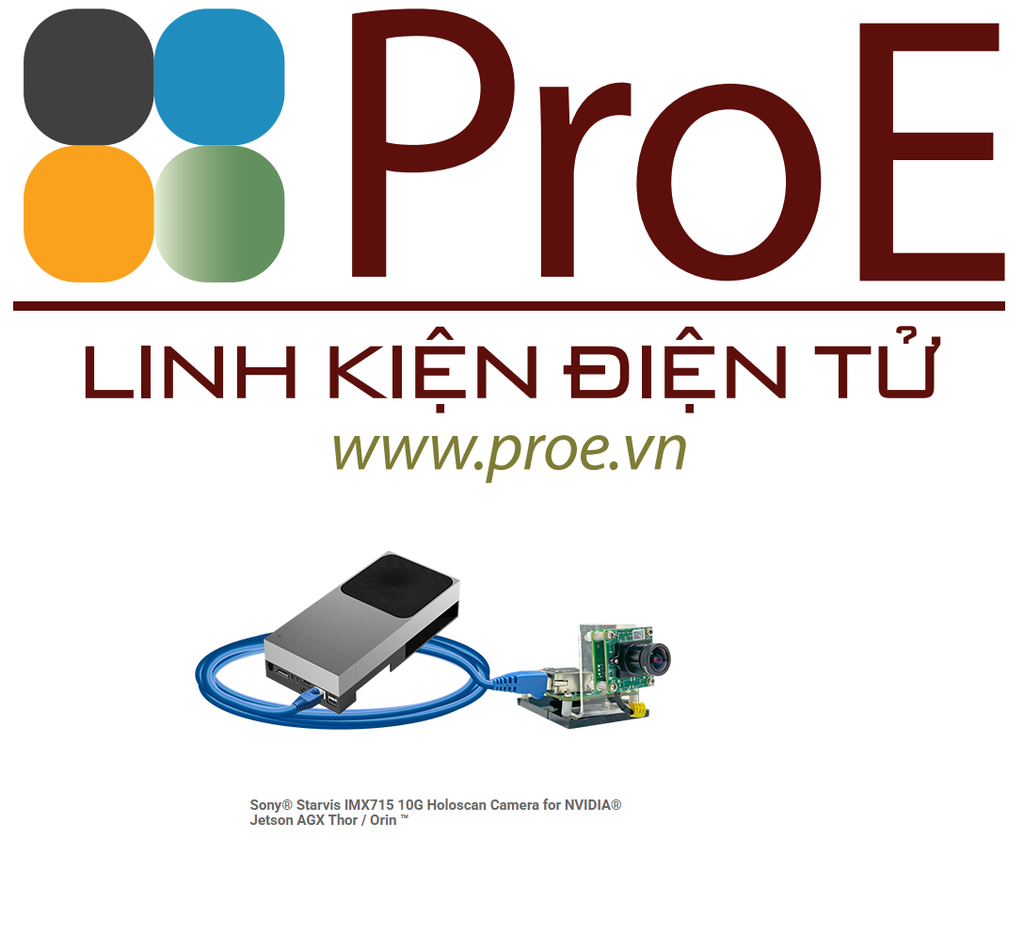

Kit Contents

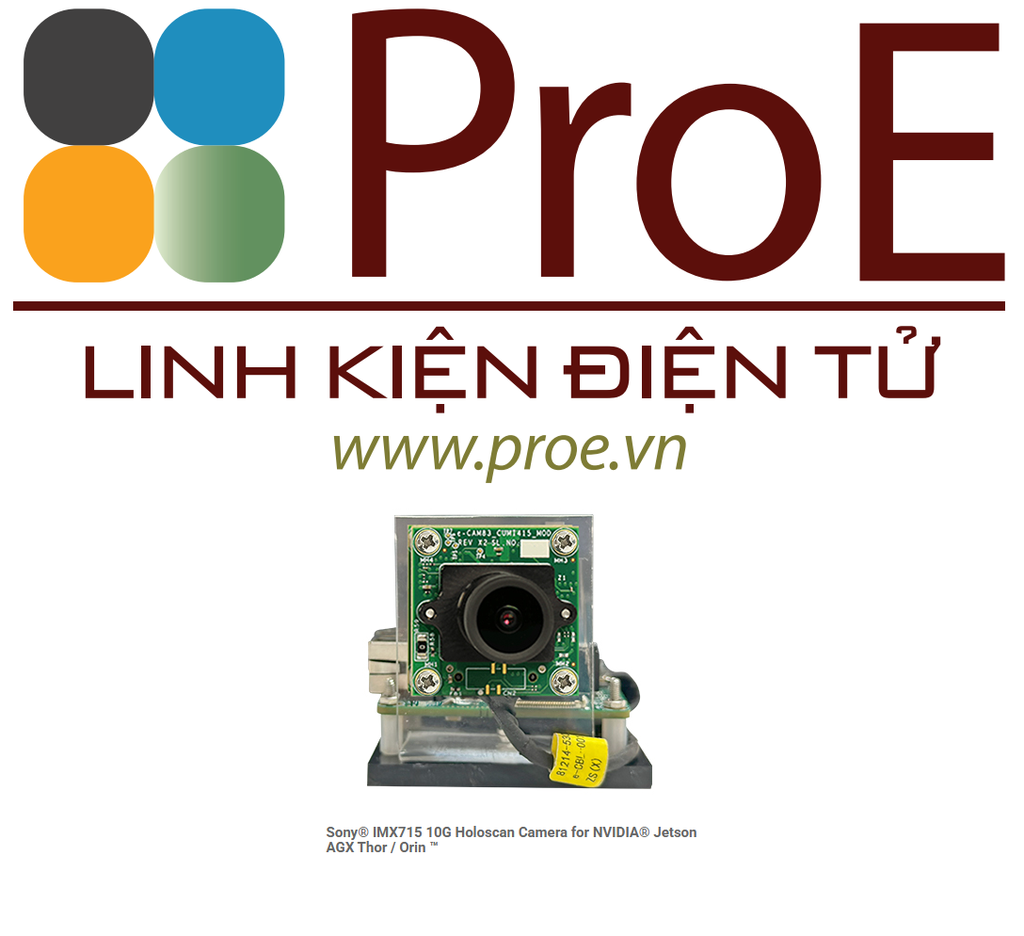

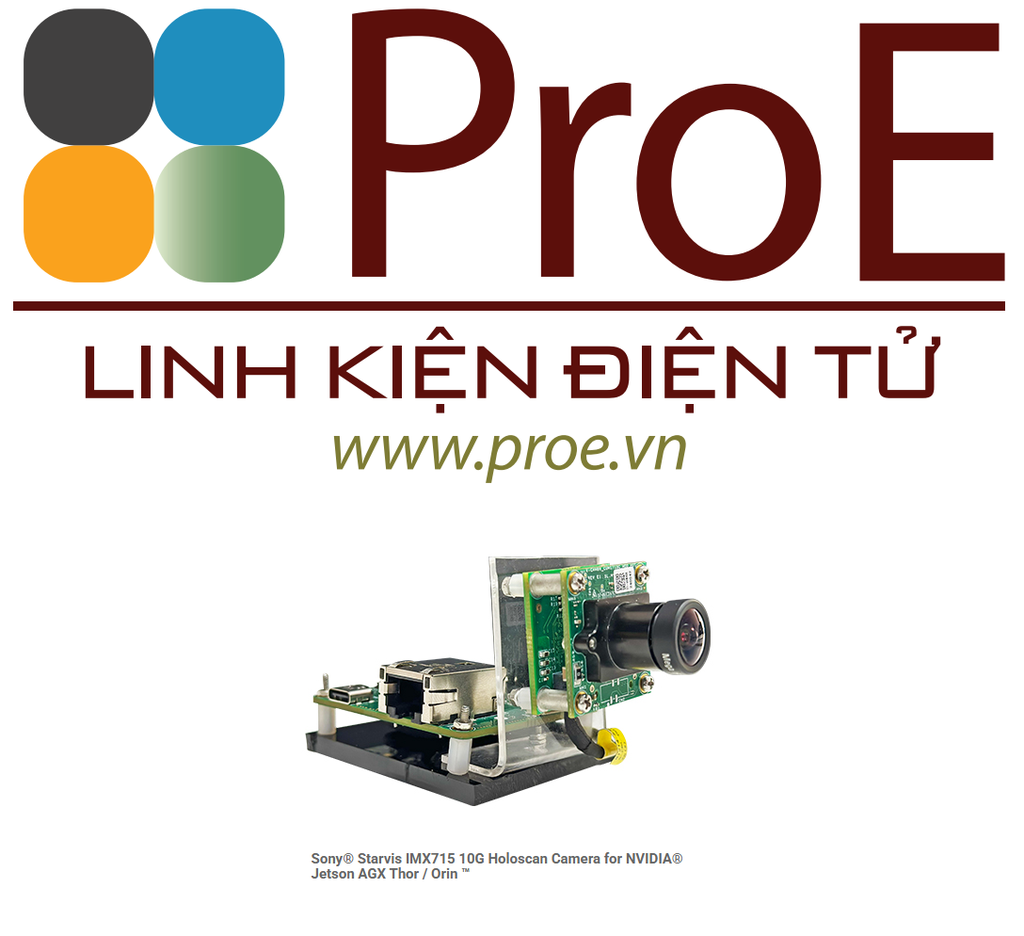

e-CAM86_CUMI715C_MOD - 8MP MIPI Camera Module with lens

Adaptor board

Micro coaxial cable (30cm)

Holoscan Sensor Bridge Board

10G Ethernet cable (2m)

e-CAM85_CUHSB is an 8MP 10G Holoscan camera solution designed for seamless integration with NVIDIA's powerful Jetson AGX Thor and AGX Orin™ platforms.

This compact solution combines e-con's high-performance camera module with a custom-designed Holoscan Sensor Bridge (HSB) board featuring an FPGA-based TintE™ ISP. It is engineered to intelligently offload computationally intensive ISP tasks, ensuring ultra-low latency while freeing up the NVIDIA GPU and CPU. This hardware acceleration not only reduces overall system latency but also enables the host processor to dedicate its full processing power to complex AI inference and model execution.

Powered by the 8MP Sony® STARVIS IMX715 sensor, the camera delivers exceptional image quality in both visible and low-light conditions and is fully compatible with the NVIDIA Holoscan SDK. The 10G Ethernet interface on the HSB board enables deployment of sophisticated, multi-camera solutions with the ultra-low latency required for real-time AI applications.

• Key features:
• • Frame Rate:
    • YUV: 4K @ 30fps
    • Bayer: 4K @ 60fps
    Refer Datasheet for complete frame rate details.
  • Output Format: Bayer / YUV 10-bit
  • Standard S-mount lens holder for use with customized optics or lenses for various applications
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: 10G HSB
  • Connector: RJ45
  • Cable Length: 2m
• Sensor features:
• • Sensor: IMX715 from SONY® STARVIS
  • Focus Type: Fixed focus
  • Sensor Resolution: 8MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2.8"
  • Output Format: RAW 10/12-bit
  • Pixel Size: 1.45μm x 1.45μm
  • Sensor Active Area: 3848(H) x 2168(V)
  • Array Size: 3840(H) x 2160(V)
  • Lens Holder: M12 (S-Mount)
  • FOV: TBD
• Electrical & Mechanical:
• • Operating Voltage: TBD
  • Operating Temperature Range: TBD
  • Typical power consumption: TBD
  • Size in mm (l x b x h):
    • Camera board: 30mm x 30mm
    • Base board - 75.03 x 40.69 mm
• Miscellaneous:
• • Compliance: RoHS

• Supported Jetpack & L4T Version :
• • NVIDIA® Jetson AGX Thor - JetPack 7.0
  • NVIDIA® Jetson AGX Orin™ - JetPack 6.0 L4T36.3.0
• Userspace Camera sensor Driver :
• • Video preview
  • Still Image capture
  • Camera controls (Exposure, Gain, Framerate, Resolution)
• Sample application with source Code for Linux :
• • Video Preview
  • Still Image capture
