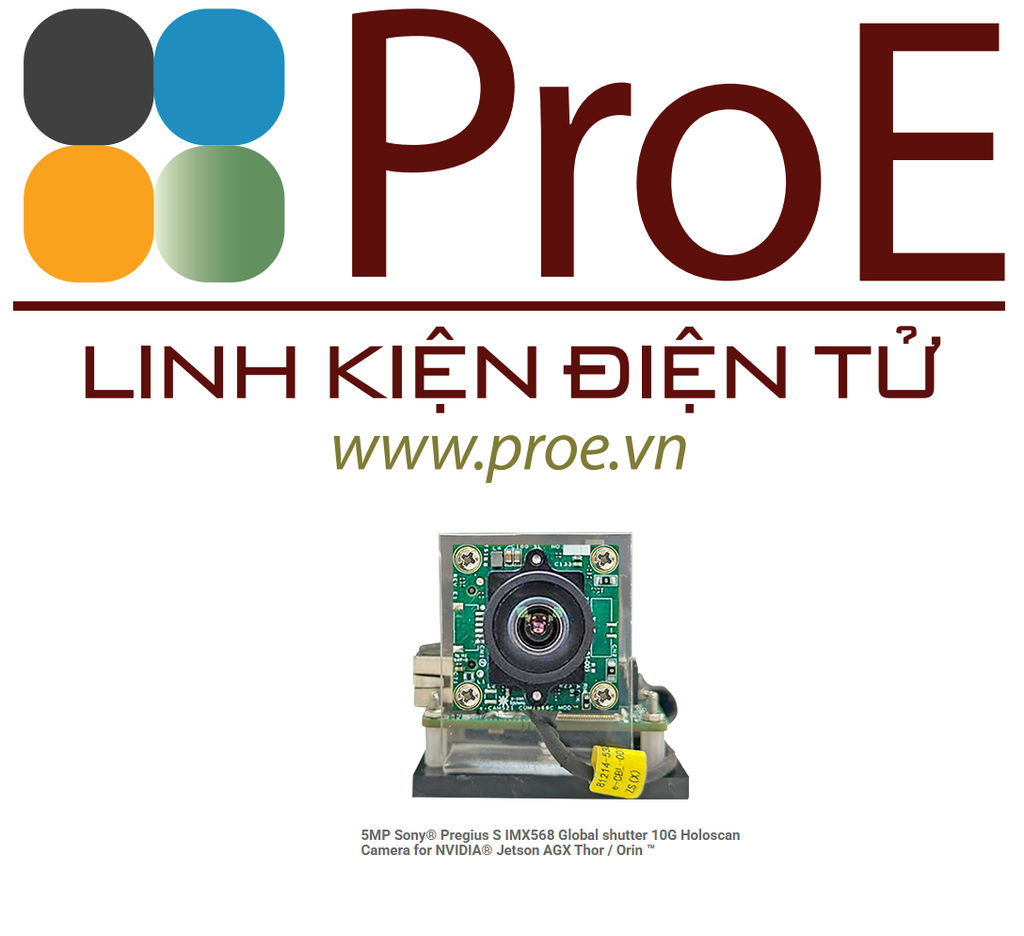

e-CAM56_CUHSB - 5MP Sony® Pregius S IMX568 Global shutter 10G Holoscan Camera for NVIDIA® Jetson AGX Thor / Orin ™

Highlights:

• Houses e-CAM521_CUMI568C_MOD - 5MP camera based on Sony® Pregius S IMX568 sensor
• Global Shutter
• High Sensitivity
• Plugs into NVIDIA® Jetson AGX Orin / Thor developer kit
• Uses e-con's Proprietary TintE ISP for image processing

e-CAM56_CUHSB is an 5MP 10G Holoscan camera solution engineered for seamless integration with NVIDIA's Jetson AGX Thor and AGX Orin™ platforms. Powered by the Sony® Pregius S IMX568 global shutter sensor, it delivers distortion-free image capture of fast-moving objects and is fully compatible with the NVIDIA Holoscan SDK.

This compact solution integrates e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By intelligently offloading computationally intensive ISP tasks, it achieves ultra-low latency while freeing the NVIDIA GPU and CPU. This hardware acceleration minimizes system latency and allows the host processor to fully focus on complex AI inference and model execution.

The 10G Ethernet interface on the HSB board further enables deployment of advanced vision solutions that require the ultra-low latency essential for real-time AI applications.

• Key features:
• • Frame Rate: YUV:
    • YUV: 5MP @ 45fps
    • Bayer: 5MP @ 66fps
  • Output Format: Bayer / YUV 12-bit
  • Standard S-mount lens holder for use with customized optics or lenses for various applications
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: 10G HSB
  • Connector: RJ45
  • Cable Length: 2m
• Sensor features:
• • Sensor: IMX568 from Sony® Pregius S
  • Focus Type: Fixed focus
  • Sensor Resolution: 5.1MP
  • Chroma: Color
  • Shutter Type: Global Shutter
  • Optical Format: 1/1.8"
  • Output Format: RGB RAW 10-bit/12-bit
  • Pixel Size: 2.74 μm x 2.74 μm
  • Sensor Active Area: 2472 (H) x 2064 (V)
  • Array Size: 2472 (H) x 2128 (V)
  • Lens Holder: M12 (S-Mount)
  • FOV: TBD
• Electrical & Mechanical:
• • Operating Voltage: TBD
  • Operating Temperature Range: TBD
  • Typical power consumption: TBD
  • Size in mm (l x b x h):
    • Camera board: 30mm x 30mm
    • HSB board: 55 mm x 50 mm x 1.6 mm
• Miscellaneous:
• • Compliance: RoHS

• Supported Jetpack & L4T Version :
• • NVIDIA® Jetson AGX Thor - JetPack 7.0
  • NVIDIA® Jetson AGX Orin™ - JetPack 6.0 L4T36.3.0
• Userspace Camera sensor Driver :
• • Video preview
  • Still Image capture
  • Camera controls (Exposure, Gain, Framerate, Resolution)
• Sample application with source Code for Linux :
• • Video Preview
  • Still Image capture
