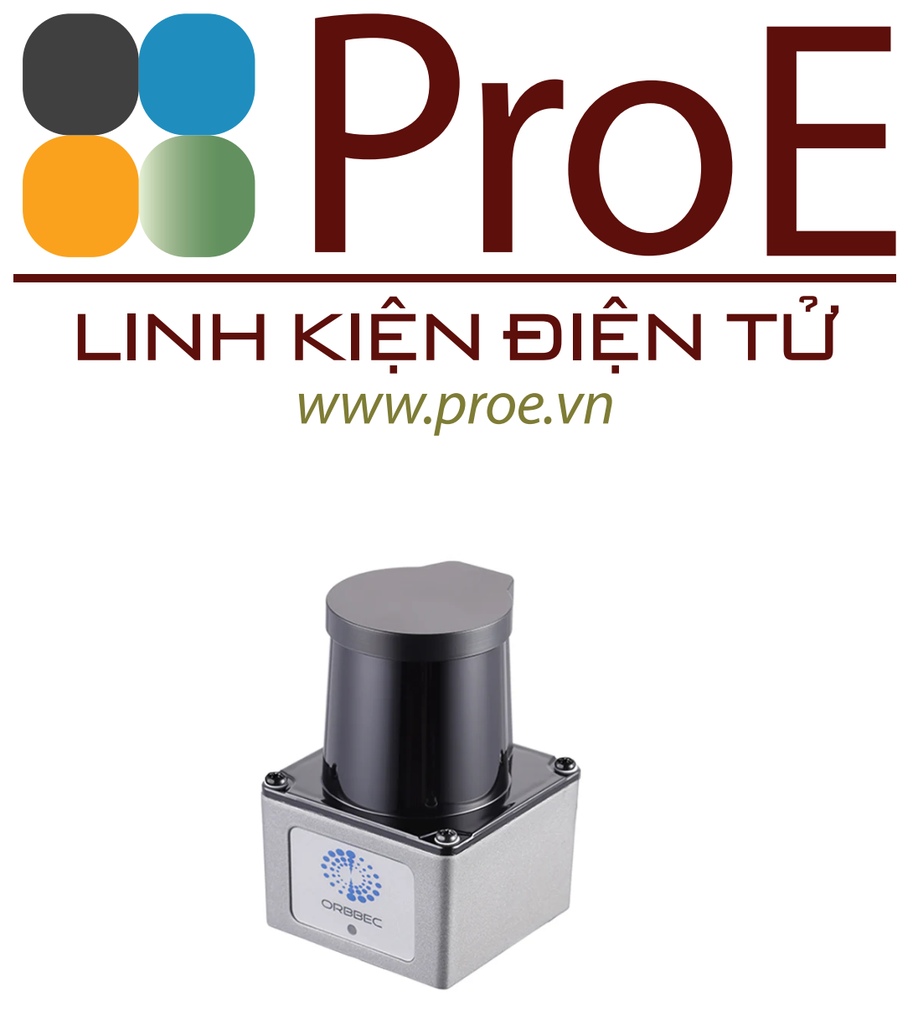

dToF LiDAR Pulsar SL450

The Pulsar SL450 is a cutting-edge 3D LiDAR sensor that employs direct Time of Flight (dToF) ranging technology. It’s constructed around a high-precision rotating-mirror optical scanning system and a high-frequency laser pulse transmitter. Sophisticated optical, mechanical, and structural design permits robust and accurate scanning within a 270° horizontal area, up to a distance of 45m. A versatile sensor, SL450 can be used in many fields, including robot positioning and navigation, area security, logistics, environmental scanning, and 3D scene reconstruction.

ProtectionIP65

Measurement TechnologydToF

Measurement Range45.0m @ 90%; 15.0m @ 10%

Distance Accuracy±20mm @ 90%; ±25mm @ 10%

Distance Precision≤15mm @ 90% & 10%

Measurement Frequency72kHz

Angular Resolution0.075°/0.1°/0.125°/0.15°/0.2°

Laser Wavelength903 ± 10nm

Operating Temperature-10℃ ~ 55℃

Scanning Angle270°

Emission Pitch Angle0° ± 0.5°

Weight~320g

Dimensions (W*H*D)60mm × 60mm × 88mm

Ambient Light Limit60,000 Lux

Laser ClassClass 1
