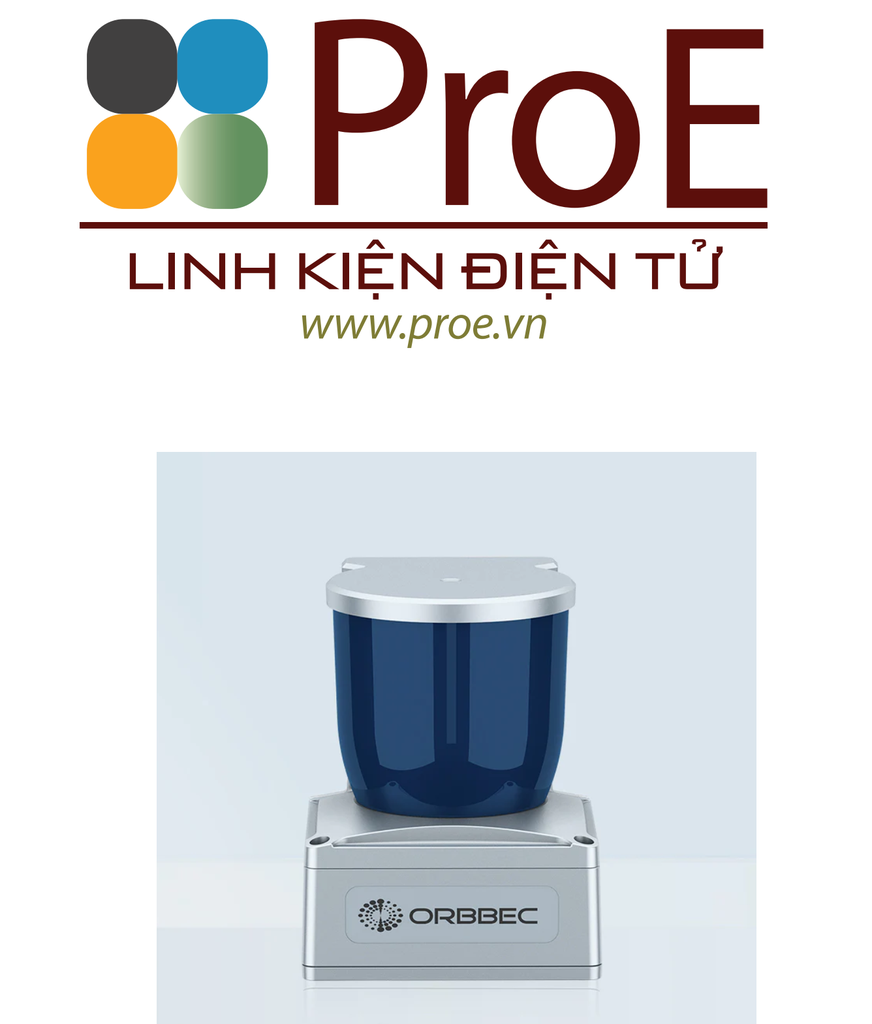

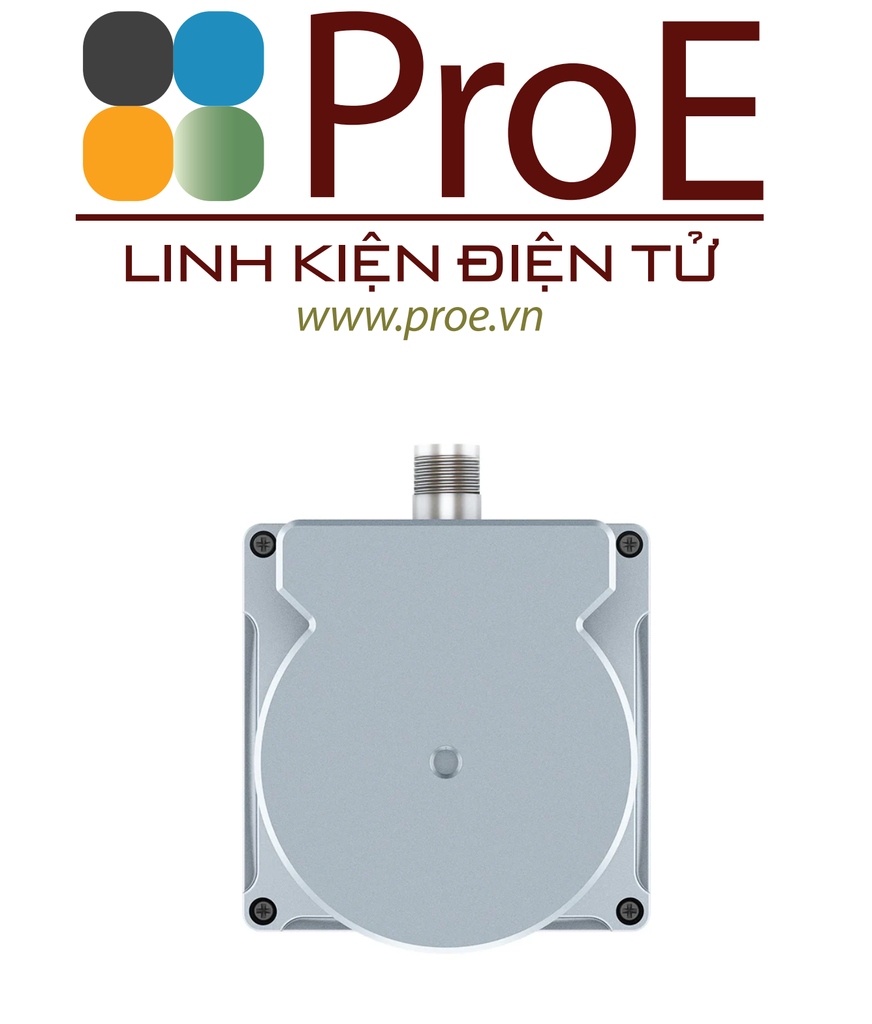

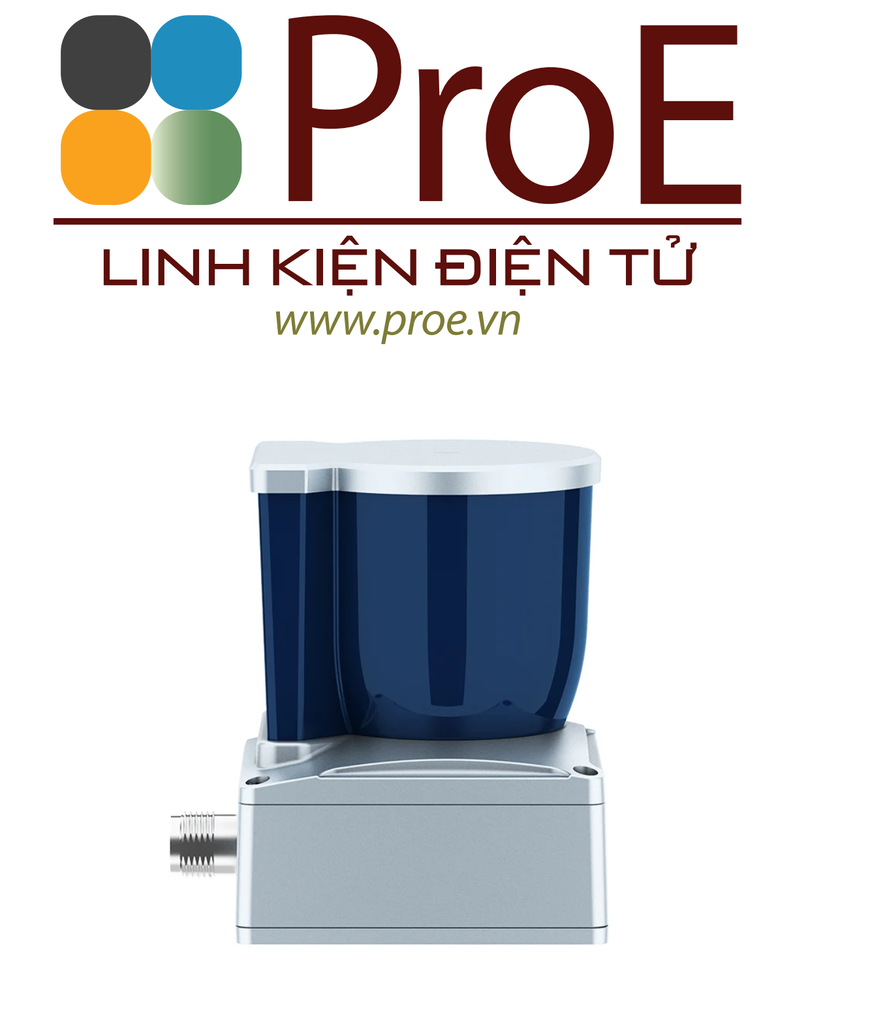

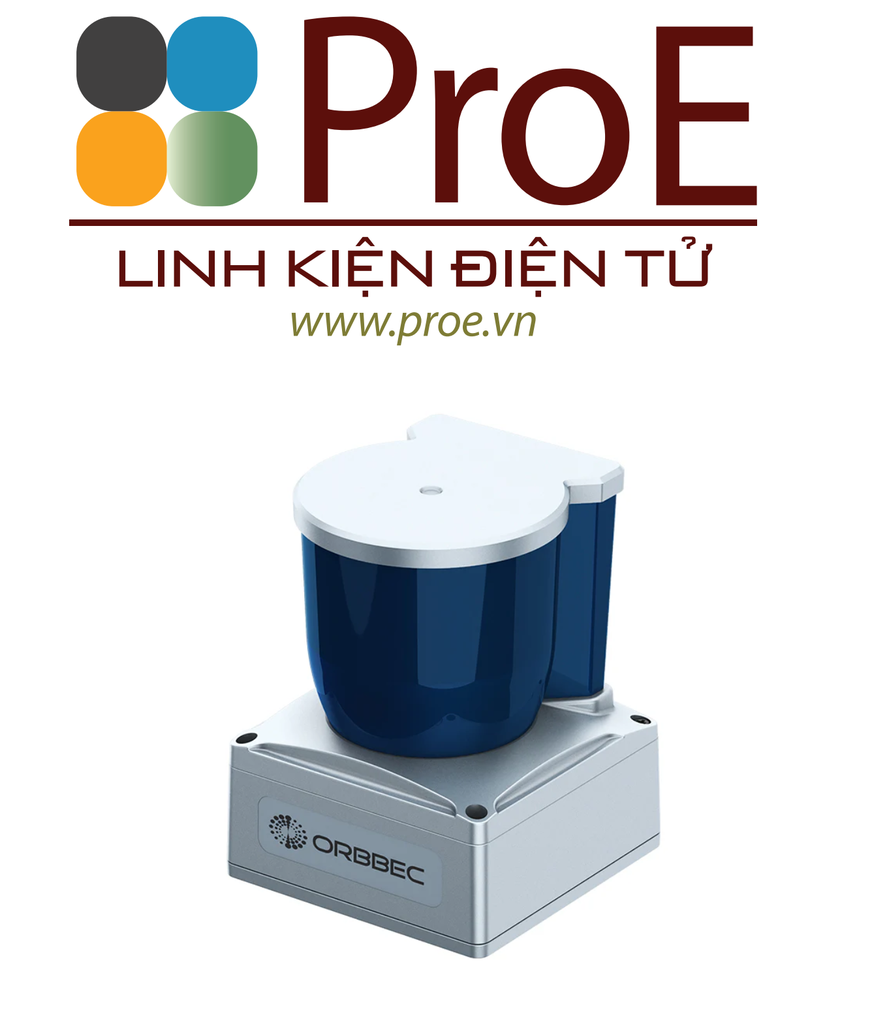

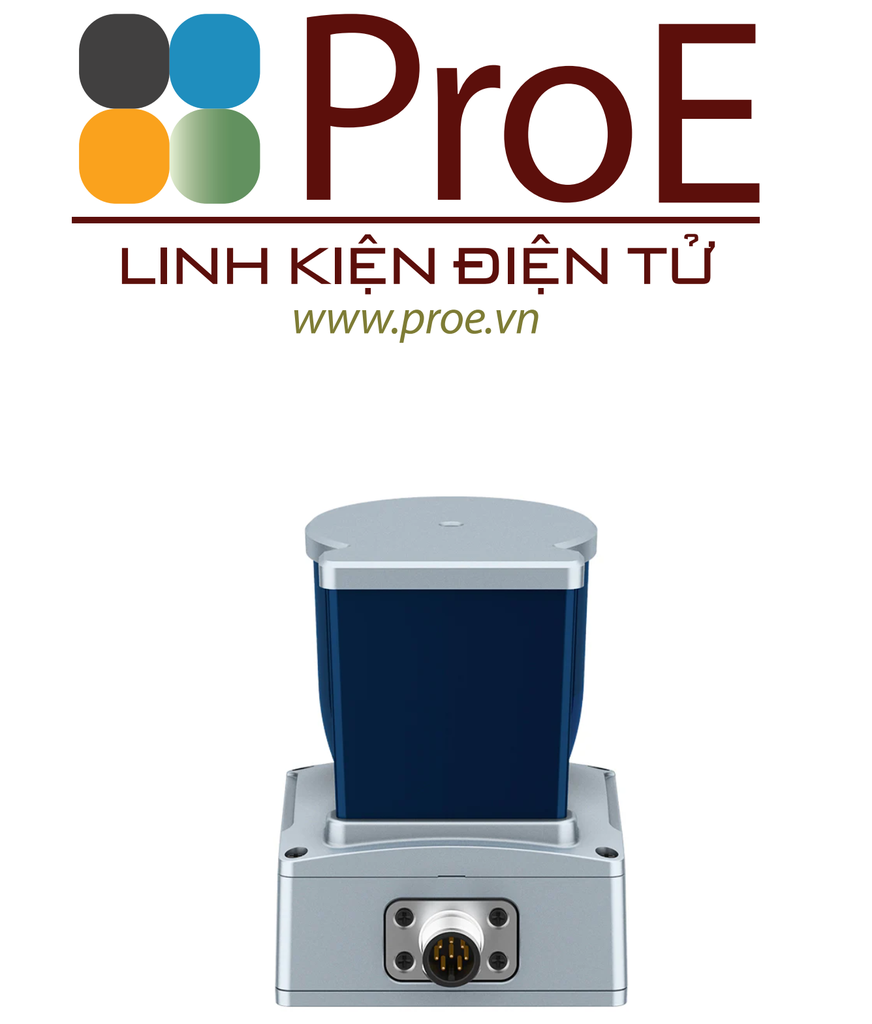

dToF LiDAR Pulsar ME450

Cost-Effective 3D LiDAR with Multiple Scanning Patterns

Configurable Repetitive & Non-repetitive Scanning | High-accuracy | Enhanced Interference Immunity

The Pulsar ME450 is an extremely cost-effective laser ranging sensor, it uses direct Time of Flight (dToF) ranging technology, and features a precision MEMS + rotating-mirror optical scanning system, combined with high-frequency laser pulse generation technology and precise optomechanical structure design, it can achieve fast and accurate scanning measurements within a horizontal field of view of 270° and a vertical field of view of 60°. The LiDAR can be widely used in many fields, including robot positioning and navigation, obstacle perception and avoidance, area security, logistics, environmental scanning, and 3D reconstruction.

Measurement PrincipledToF

Measurement Range45.0m@90%; 15.0m@10%

Accuracy±30mm

Precision≤20mm

Horizontal FOV270°

Vertical FOV60°

Measurement Frequency200kHz

Horizontal Rotation Frequency20Hz

Laser Wave Length905±10nm

IMUBuilt-in IMU, 6-axis

Ambient Light Limit>80,000Lux

Dimensions (W*H*D)65mm×83mm×65mm

Weight~270g

Degree of ProtectionIP67

Laser ClassClass1

Ambient Operating Temperature-20℃~55℃

Storage Temperature-40℃~70℃
