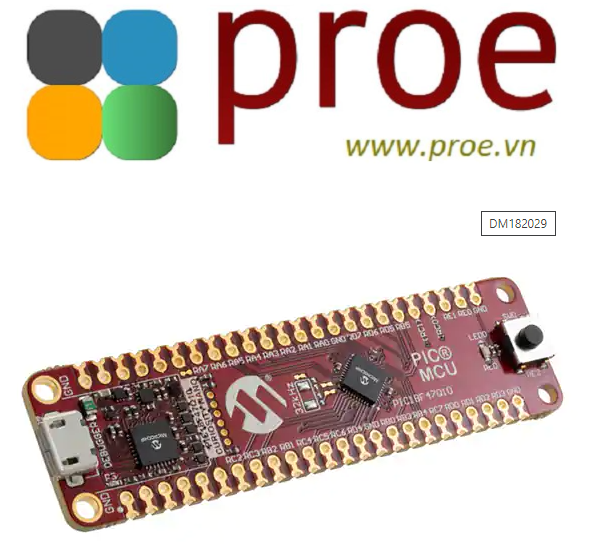

DM182029 PIC18F47Q10 CURIOSITY NANO EVALU

Get complete support for your next design with the full program and debug capabilities of the PIC18F47Q10 Curiosity Nano evaluation kit.

Inclusive of the award-winning MPLAB X development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the PIC18F47Q10.

• •  PIC18F47Q10 microcontroller
• •  One user-operated mechanical switch
• •  One yellow user-feedback LED
• •  Sized for 32.768kHz crystal
• •  On-board debugger
• •  Board ID in Microchip MPLAB X
• •  One green power and status LED
• •  Programming and debugging capability
• •  Virtual COM port (CDC)
• •  One logic analyzer channel (DGI GPIO)
• •  USB powered for ease of integration
• •  Adjustable target voltage
• •  MIC5353 LDO regulator controlled by the on-board debugger
• •  1.8 - 5.1 V output voltage (limited by USB input voltage)
• •  500mA maximum output current

Package Contents

• •  PIC18F47Q10 Curiosity Nano evaluation board

Product Technical Specifications
