DFR0684 RS485 Connector Expansion Shield for LattePanda V1

  • Mã sản phẩm: DFR0684 RS485
  • Nhà sản xuất: LattePanda
  • Website hỗ trợ: https://www.proe.vn


An industrial-grade RS485 shield for LattePanda! It is designed to expand a reliable RS485 interface(OPEN4) for LattePanda V1. The receiving and sending of the module are isolated and it features signal isolation, power isolation, lightning surge protection, transient voltage resistance, and bus-protection, which assures reliable data transmission and effectively protects your LattePanda main-board. Apart from that, the module offers 12V power output and comes with on-board 120Ω terminal matching resistor that can be controlled by the switch.

The product employs a stackable connection, which makes it able to be easily fixed onto LattePanda main-board by copper columns without blocking the heat dissipation area of the main-board. This RS232 Connector Expansion Shield can be safely applied in industrial scenarios.

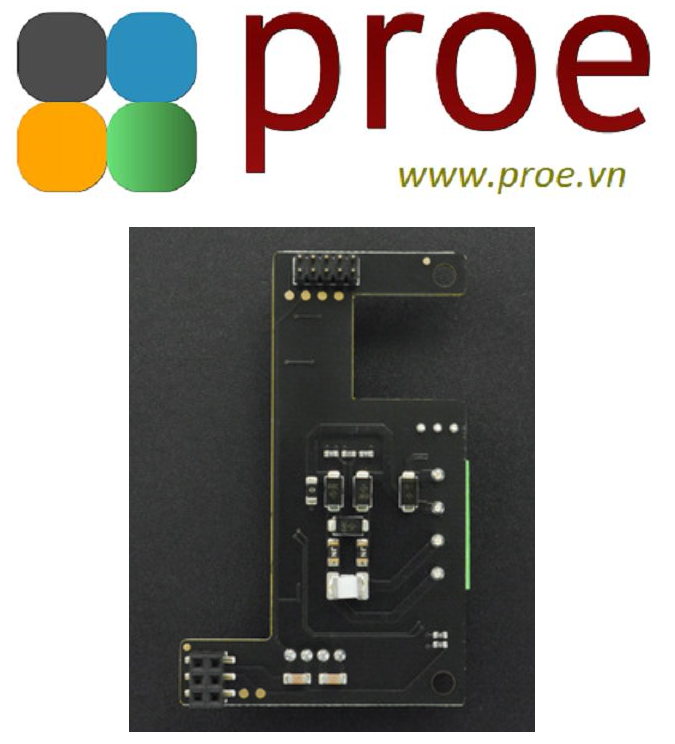

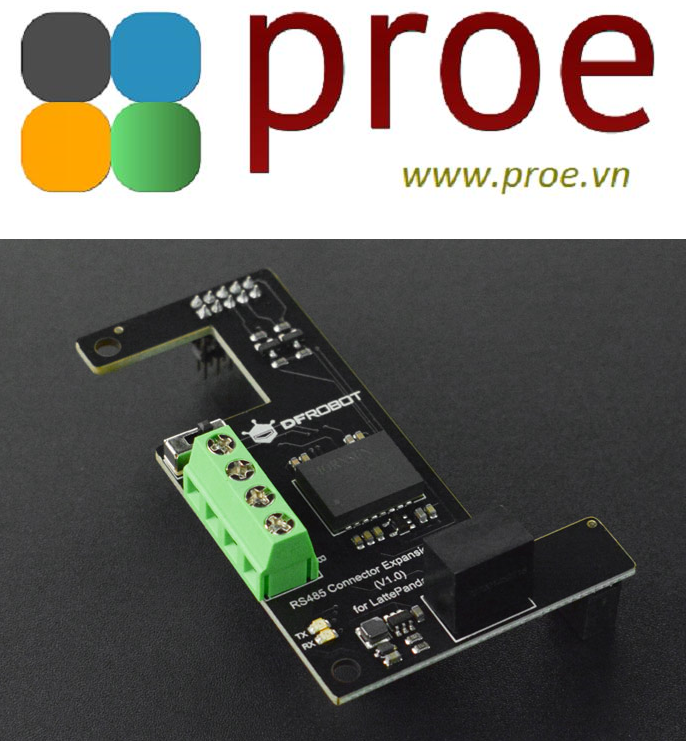

RS485 Connector Expansion Shield Board Overview

Board Overview

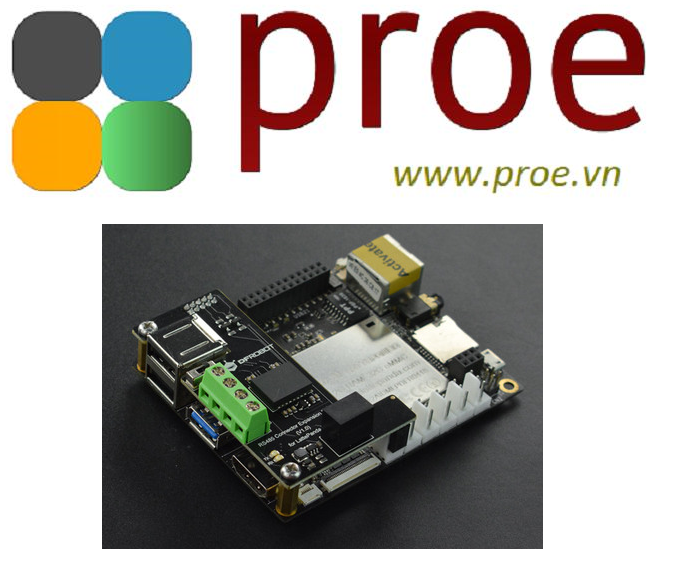

Connect the Shield and LattePanda V1

Connect the Shield and LattePanda V1


  • Signal Isolation and Power Isolation
  • Reliable Communication
  • 12V Power Output
  • On-board 120Ω Terminal Matching Resistance
  • Easy to Connect and Use
  • 12mm Mounting Copper Columns


  • RS485 communication scenarios


  • Operating Voltage: 5V
  • TTL Level: 1.8V
  • Output Voltage: 12V
  • Operating Temperature: -40℃ to +85℃
  • Baud Rate: 115200 bps (LattePanda V1 TTL can only adjust to 115200 bps)
  • Isolation Voltage: 2500VDC
  • Not Support Hot Plugging

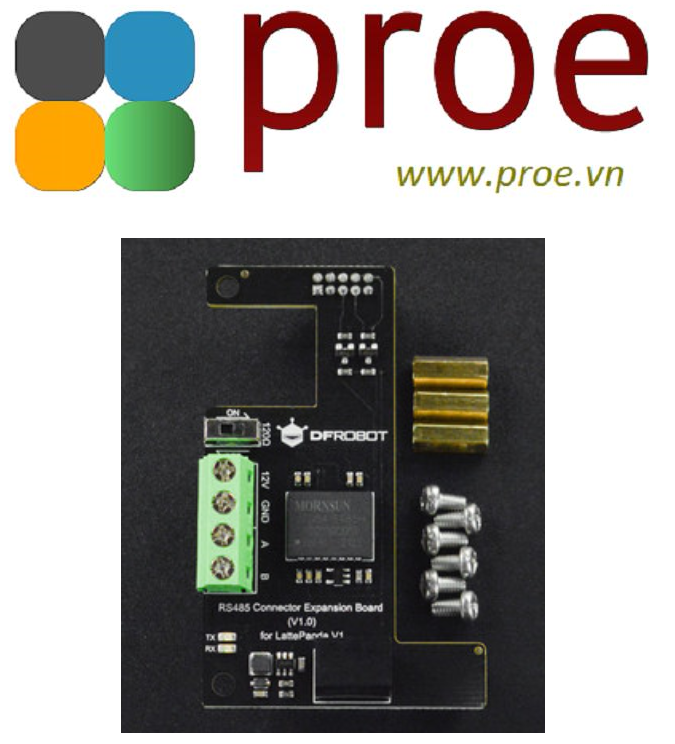

  • RS485 Connector Expansion Shield for LattePanda V1 x1
  • M3 Double-way Hexagonal Copper Column(12mm) x3
  • M3 Round Head Screw x6
