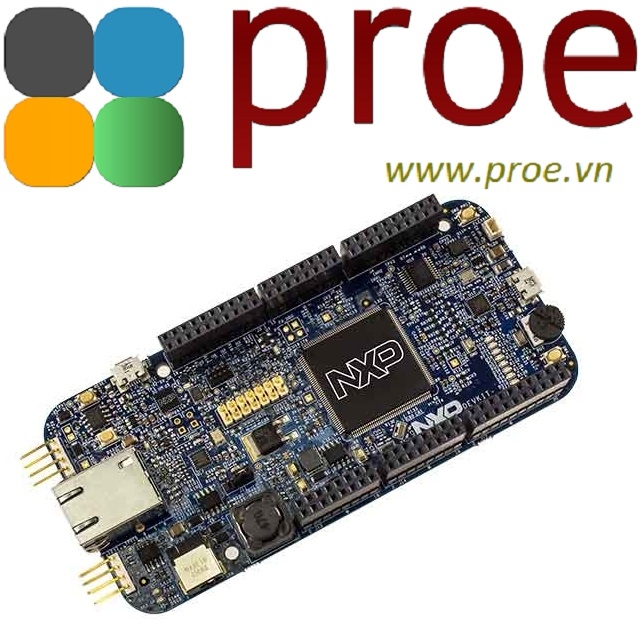

The DEVKIT-MPC5748G features the MPC5748G, a 32-bit automotive MCU based on Power Architecture® technology. The MPC5748G addresses functional safety, security and Industrial/Automotive gateway application needs, it offers up to three e200 Power Arch MCUs, Hardware Security Module, vast of communication interfaces and flexible memory options.
DEVKIT-MPC5748G is a development tool for MPC5748G MCU and provides easy access to more than 100 GPIOS of the MCU plus access to onboard Ethernet, CAN, LIN, USB, etc. The standard-based form factor compatible with the Arduino™ pin layout, provides a broad range of expansion board options, the board has option to be powered with external power supply.
- MPC5748G in 176 pins LQFP
- On-Board OpenSDA Circuit for Debugging
- USB to Serial Interface
- 8 x LEDs
- Power LEDs indicators
- ADC Potentiometer, 2 x Push Buttons
- Supports Ethernet, USB, Flexray, CAN and LIN connectors
Note: Board can be powered by USB, however 12V power supply is not included in the kit and is required for CAN/LIN communication
