DC Motor Driver Module for Raspberry Pi Pico, Driving up to 4x DC Motors

PACKAGE CONTENT

Weight: 0.027 kg

1. Pico-Motor-Driver x1

1

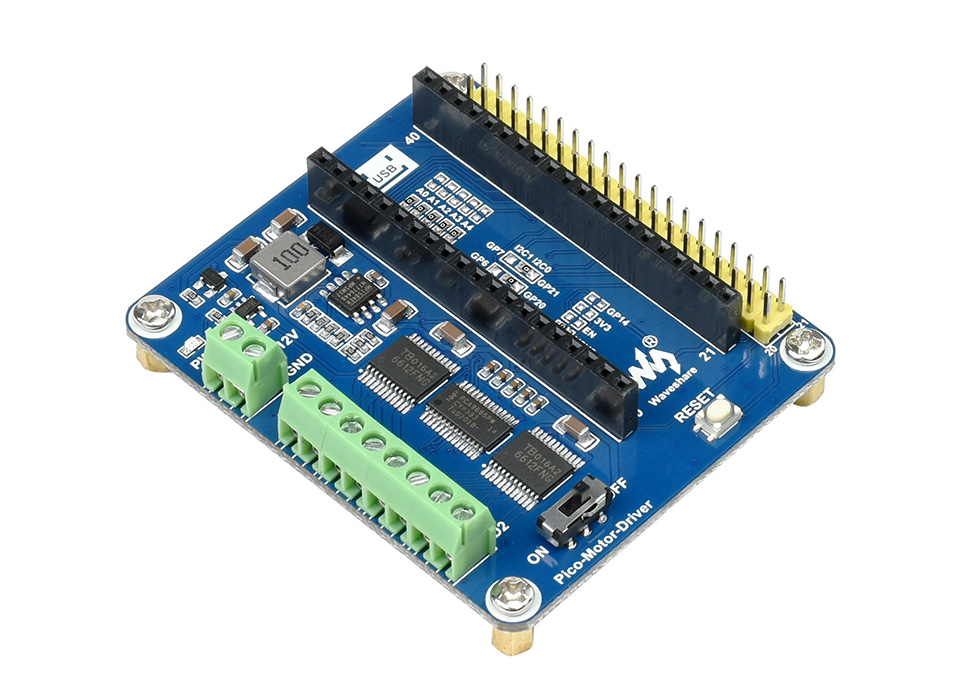

DC Motor Driver Module For Raspberry Pi Pico, Driving Up To 4x DC Motors

DC Motor Driver Module For Pico

Suitable For 2WD Or 4WD Driving

Features At A Glance

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• I2C controlled, supports 32x different I2C addresses by setting the 5 address jumpers
• Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
• Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Breakout unused pins of Pico for easy extension
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Driving Up To 4x DC Motors

for reference ONLY, Raspberry Pi Pico and DC motors are NOT included.

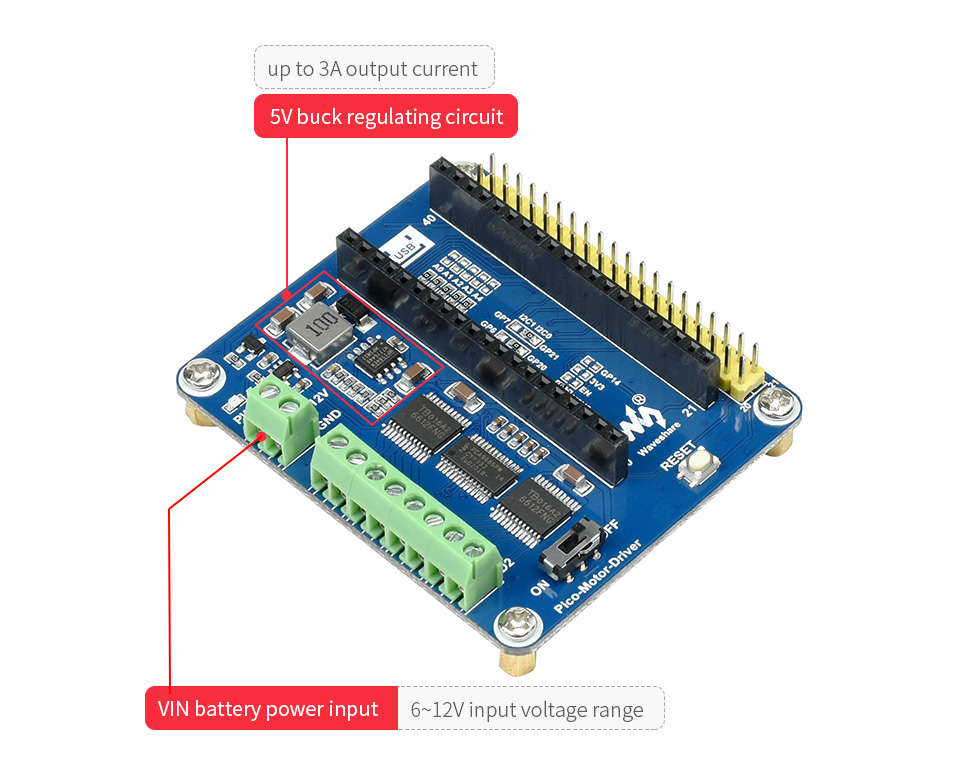

Onboard 5V Regulator

Pinout Definition

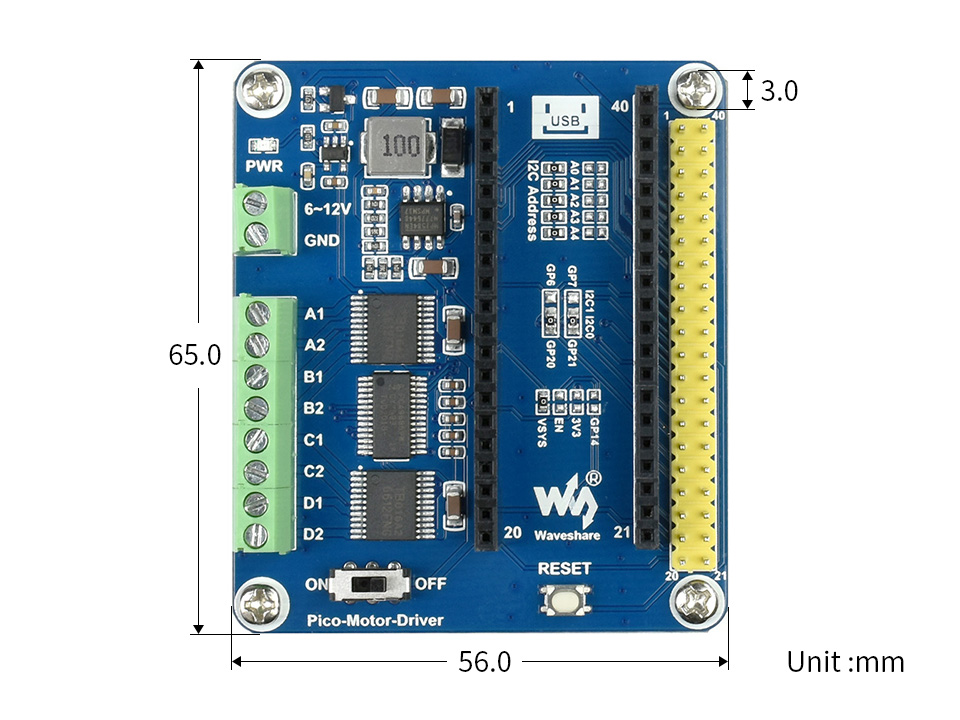

Outline Dimensions

Resources & Services

WIKI: Pico-Motor-Driver
