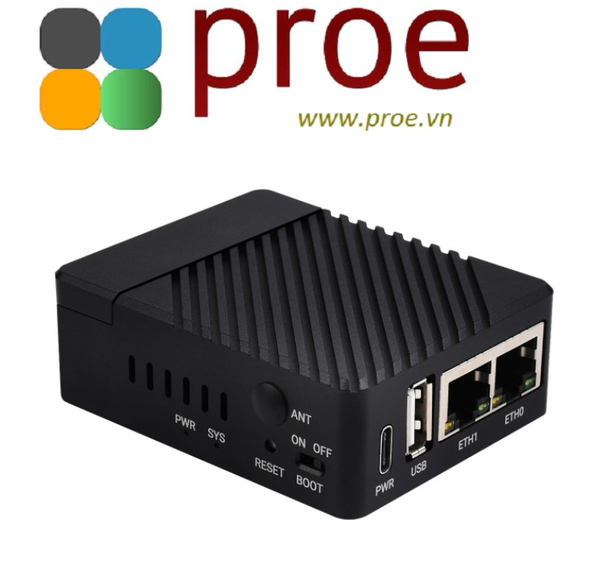

CM4-DUAL-ETH-MINI-BOX

  • Mã sản phẩm: CM4-DUAL-ETH-MINI-BOX
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.650.000₫
PACKAGE CONTENT

Weight: 0.256 kg

CM4-DUAL-ETH-MINI-BOX

1

2

3

4

5

  1. CM4-DUAL-ETH-MINI + metal case (assembled) x1
  2. OPTIONS 5V 3A power adapter x1
  3. Screwdriver x1
  4. Thermal tape 2PCS x1
  5. Black anti-slip rubber 4PCS x1

Mini Dual Gigabit Ethernet Base Board/Mini-Computer Designed For Raspberry Pi Compute Module 4

Dual Gigabit Ethernet Base Board For CM4


Mini, Practical And Neat

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Version Option

* Please refer to the part list for detailed package content

Dual Gigabit Ethernet Base Board



Dual Gigabit Ethernet Mini-Computer Kit
In addition to the Dual Gigabit Ethernet Base Board, it is equipped with Aluminum Alloy case, fan and power supply adapter



Optional Black Metal Case

Better Protection For The Base Board, Comes With Cooling Fan For Efficient Heat Dissipation

for reference only, CM4 is NOT included.



Specifications

CM4 SOCKET suitable for all variants of Compute Module 4
NETWORKING Dual Gigabit Ethernet RJ45 connector
USB USB 2.0 Port
PIN HEADER Raspberry Pi 40PIN GPIO header
STORAGE TF card socket for Compute Module 4 Lite (without eMMC) variants
FAN HEADER 4-wire SH1.0 port, allows speed adjustment and measurement, 5V
POWER INPUT 5V, Type-C interface
DIMENSIONS 55.0 × 68.0mm

Connecting With Compute Module 4

Standard CM4 Socket And 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module

for reference only, CM4 is NOT included.



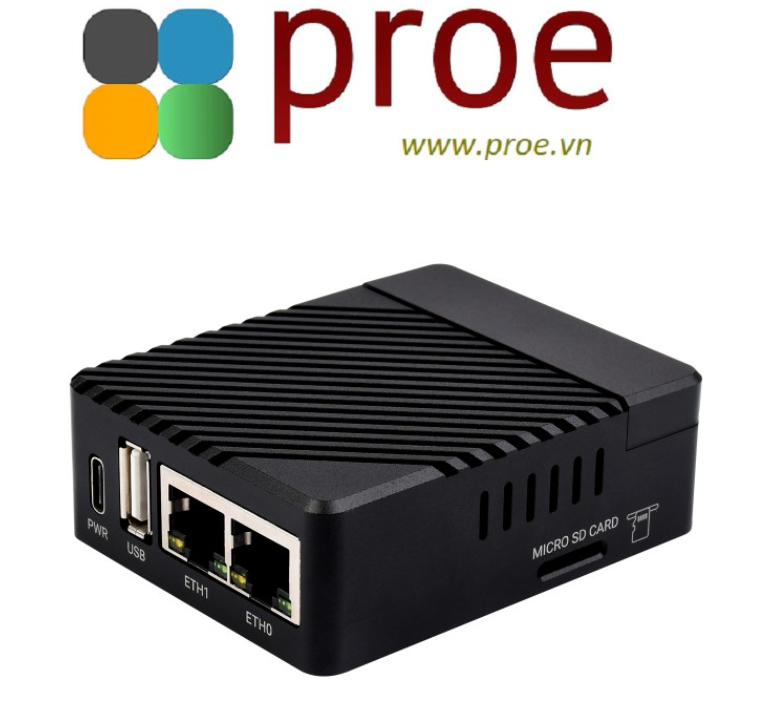

Rich Interfaces



Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

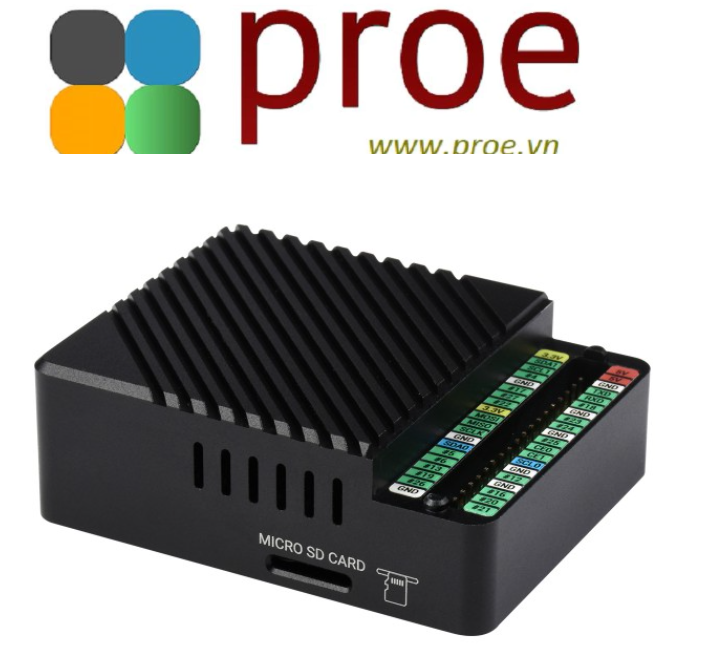

Magnetic Design

Magnetic Removable Top With The Location Columns, Easy To Fix And
Better Protection For The GPIO Pins



Heat Dissipation Design

Metal Case For Large Area Thermal Conductivity And Heat Dissipation
Built-In Speed-Adjustable Fan With Cooling Fins, More Efficient



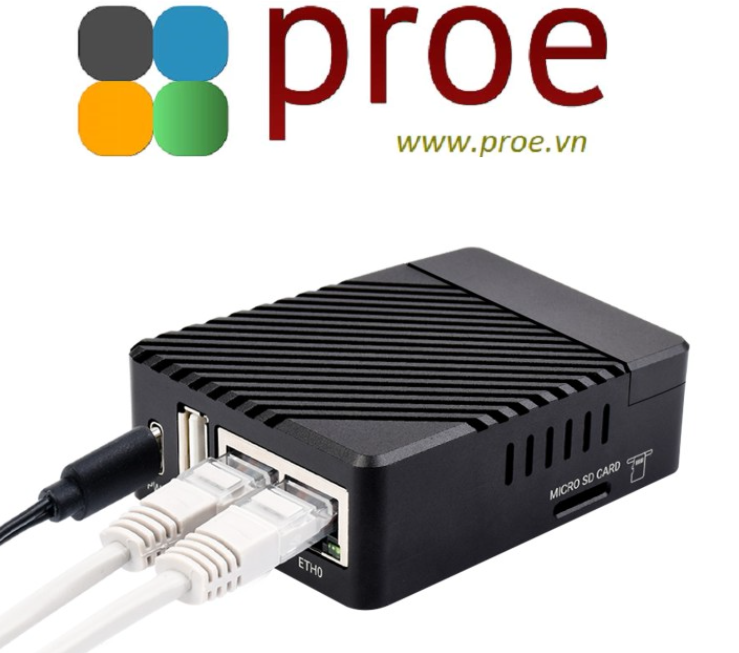

Application Example

Suitable For Raspberry Pi Or Other Industrial Occasions With Special Function Requirements

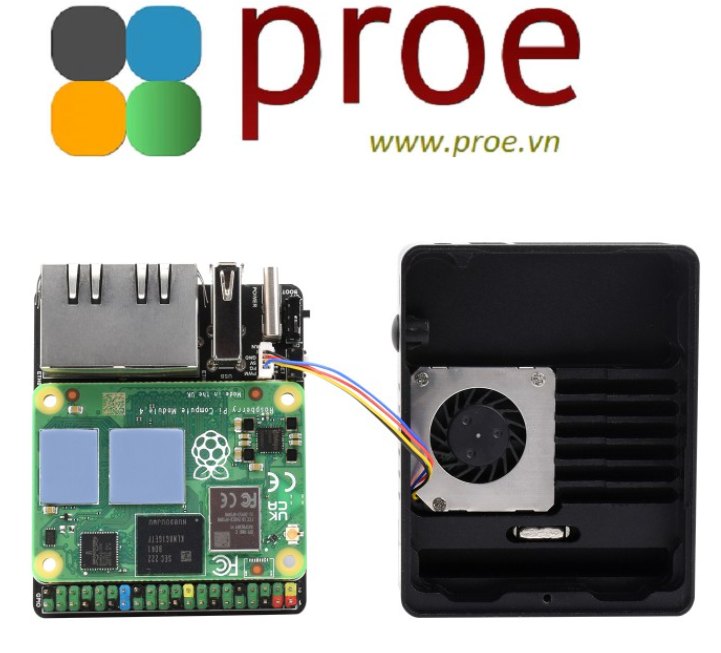

Assembly Guide




What's On Board

  1. 40PIN GPIO header
    for connecting sorts of HAT
  2. CM4 Socket
    suitable for all variants of Compute Module 4
  3. RJ45 Dual Gigabit Ethernet Port
    Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
    ETHERNET 0: CM4 original network port
    ETHERNET 1: PCIe extended network port
  4. USB 2.0 Type A port
    for connecting sorts of USB devices
  5. FAN header
    for connecting cooling fan, allows speed adjustment and measurement
  6. Reset button
  7. Boot switch
    ON: CM4 would be booted from USB-C interface
    OFF: CM4 would be booted from eMMC or TF card



  1. Type-C port
    5V/2.5A power supply, or used for eMMC programming
  2. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  3. RTL8111H
    Gigabit NIC chip
  4. Indicator
    PWR: indicating the power supply status of Raspberry Pi
    SYS: indicating the working status of Raspberry Pi
  5. SYSTEM switch
    EEPROM_WP: Prevent EEPROM from being overwritten
    WiFi_DIS: WiFi disabled, only for CM4 version with wireless
    BT_DIS: Bluetooth disabled, only for CM4 version with wireless



Product Show



Outline Dimensions



Resources & Services


WIKI: www.waveshare.com/wiki/CM4-DUAL-ETH-MINI
