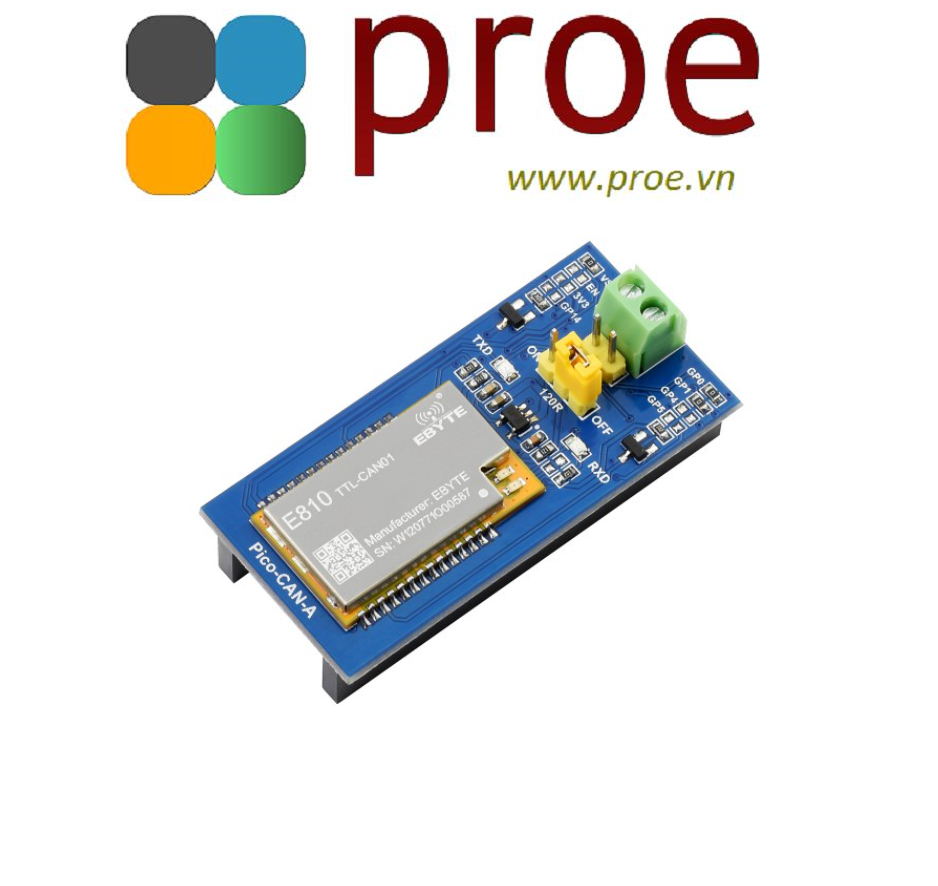

CAN Bus Module for Raspberry Pi Pico, UART to CAN conversion

  • Mã sản phẩm: Pico-CAN-A
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
490.000₫
PACKAGE CONTENT

Weight: 0.012 kg

  1. Pico-CAN-A x1

1

CAN Bus Module For Raspberry Pi Pico, Enabling Long Range Communication Through UART

CAN Bus Module For Pico

Enabling Reliable Long Range Communication For Raspberry Pi Pico

Features At A Glance

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Incorporates E810-TTL-CAN01 module, UART to CAN bus conversion
  • Three conversion methods: transparent conversion, transparent conversion with identification, and protocol mode conversion
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE 3.3V CAN TRANSCEIVER E810-TTL-CAN01
COMMUNICATION BUS UART BAUDRATE 300~921600bps

Raspberry Pi Pico Header Compatibility

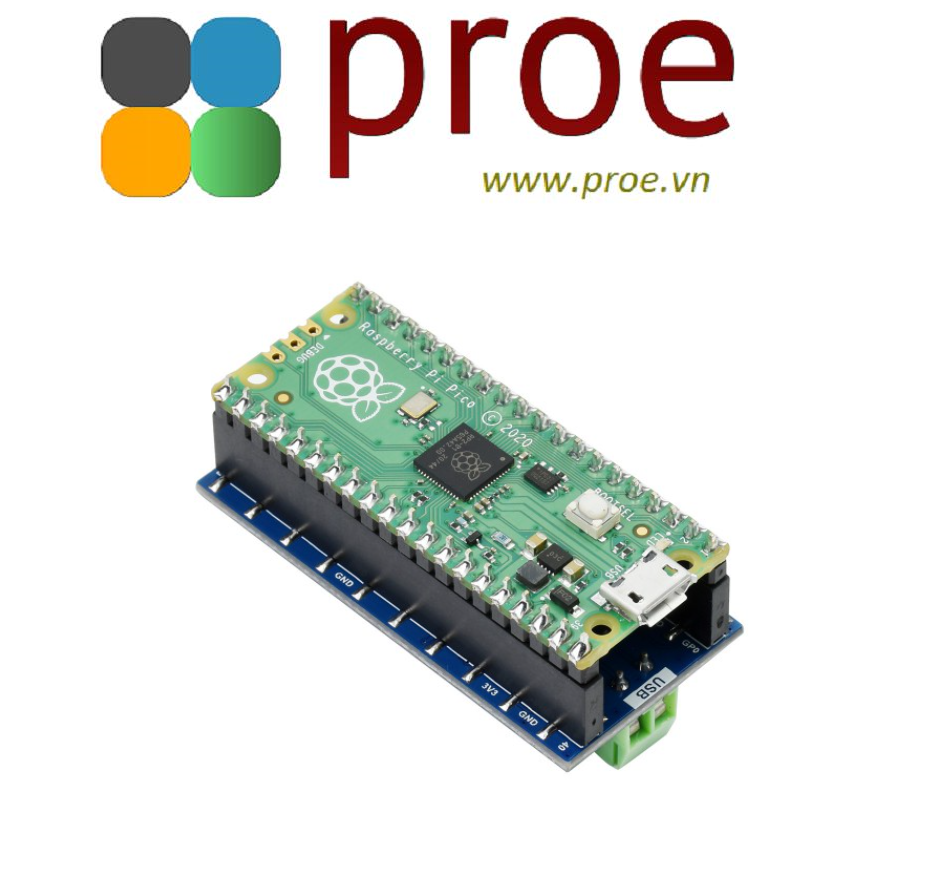

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

What's On Board

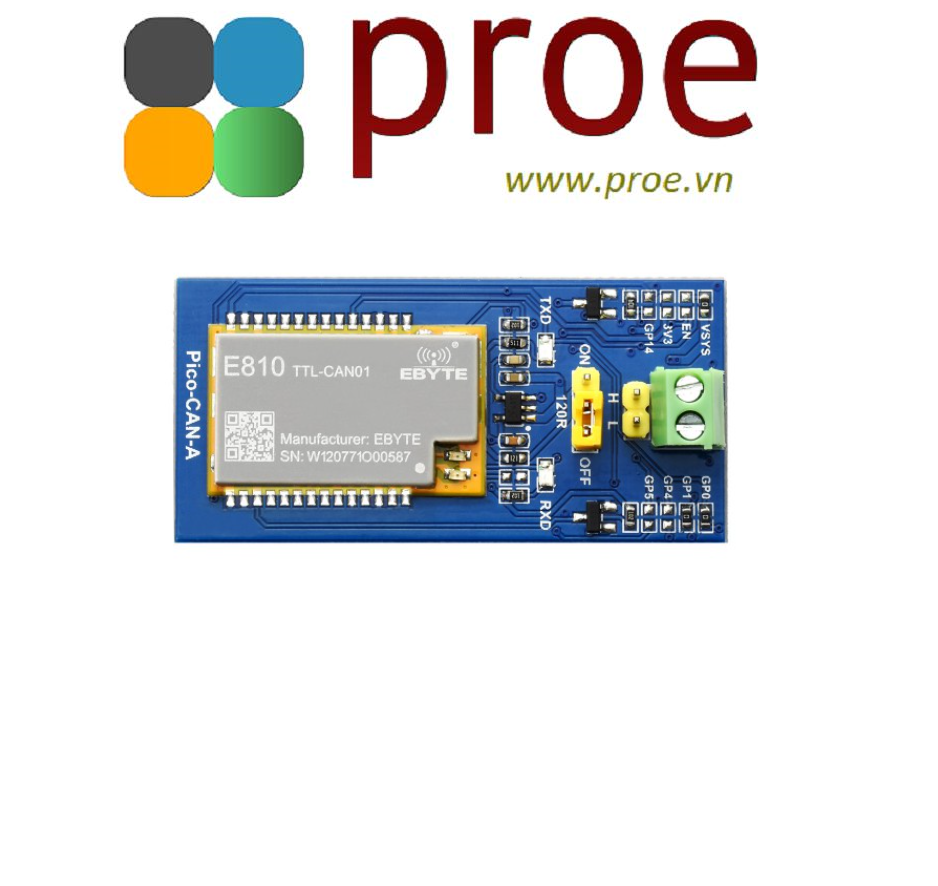

  1. E810-TTL-CAN01 module
  2. Module operating indicator
  3. Module status indicator
    operating mode: blinking at 1Hz frequency
    command configuration mode: blinking at 5Hz frequency
  4. TX/RX indicators



  1. Resistor config
    ON: connected to 120R matching resistor
    OFF: disconnected from 120R matching resistor (default)
  2. CAN bus terminal
  3. Power supply selection
  4. UART selection

Pinout Definition

Outline Dimensions

Resources & Services


WIKI: Pico-CAN-A
