Cảm biến màu Color Sensor TCS3200 RGB Wavshare

  • Mã sản phẩm: Cảm biến màu Color Sensor TCS3200 RGB
  • Nhà sản xuất: Wavshare
  • Website hỗ trợ: https://www.proe.vn
360.000₫

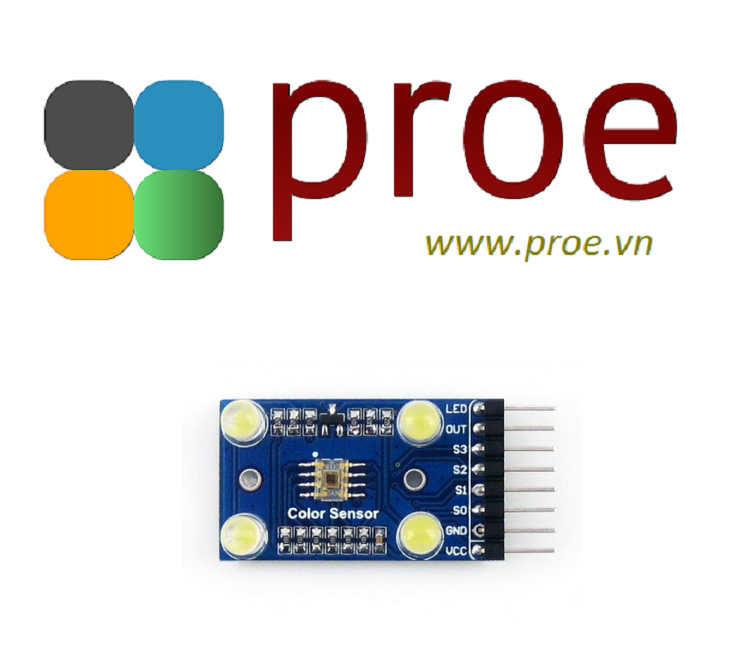

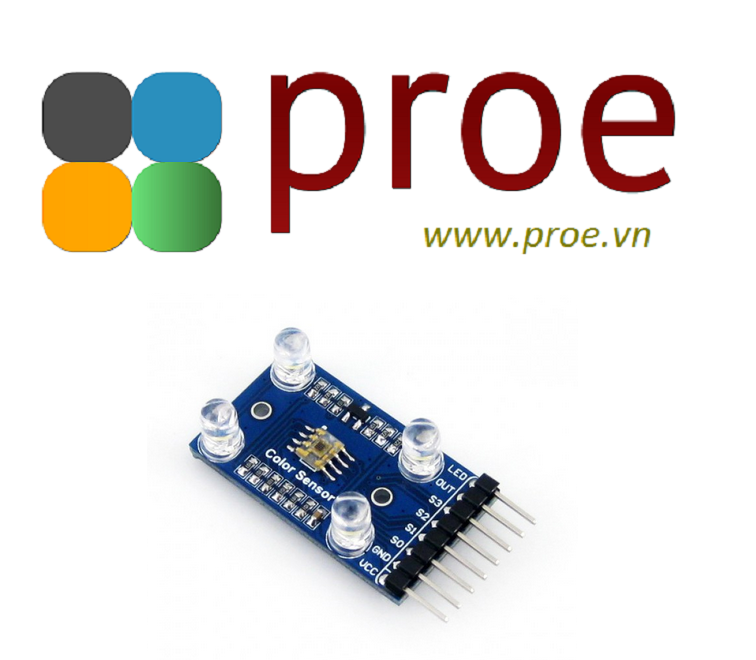

Color Sensor, complete color detector

Overview

  • Sensor Chip: TCS3200 (RGB color detector)
  • Detects static color, the output is a square wave with frequency directly proportional to incident light intensity
  • Supports fill-light by onboard LEDs

Specifications

  • Power: 2.7V ~ 5.5V
  • Ideal detection distance: 10mm
  • Dimension: 36.0mm * 20.6mm
  • Mounting holes size: 2.0mm

Applications

  • Sorting by color
  • Ambient light sensing and calibration
  • Test strip reading
  • Color matching

How to Use

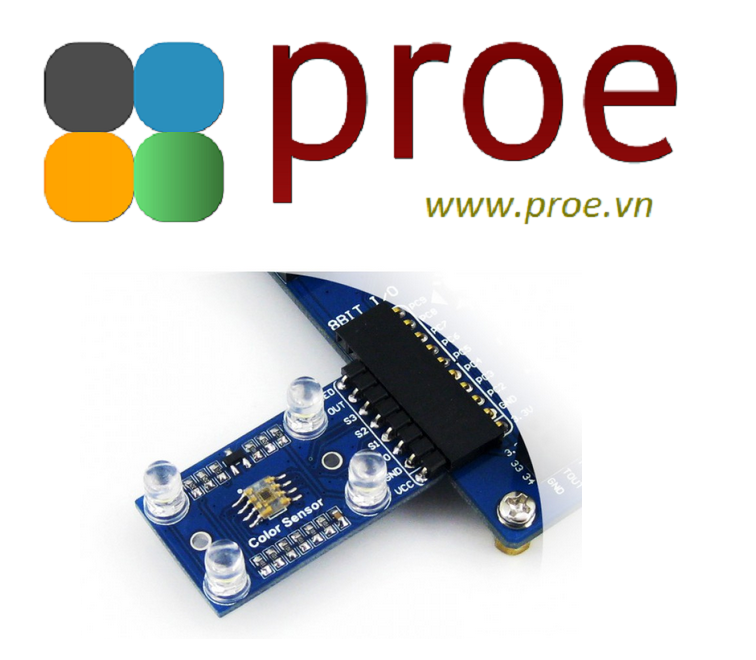

In the case of working with a MCU:

  • VCC ↔ 2.7V ~ 5.5V
  • GND ↔ power supply ground
  • LED ↔ MCU.IO (controlling the 4 white LEDs)
  • OUT ↔ MCU.IO (RGB color output frequency)
  • S0/S1 ↔ MCU.IO (Output frequency scaling selection inputs)
  • S2/S3 ↔ MCU.IO (Photodiode type selection inputs)

S0/S1 selects the output frequency scaling factor, S2/S3 selects the color filter of red, green, blue, then OUT outputs a square wave with frequency proportional to the selected color intensity. The detected color can be determined by the ratio of the intensity of red, green and blue.

Note:

  • Avoids environment light noise
  • White balance is required when the first time using the module, reseting the module, or changing the light source

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/Color_Sensor
