Binocular Camera Base Board Designed For Raspberry Pi Compute Module 4, Optional Interface Expander
Binocular Camera Base For CM4
Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
Designed for Compute Module 4 Lite/eMMC variants
Ordering Options
Dual camera base only
Standard CM4 socket, dual cameras onboard, supports video output for all CM4 variants, along with networking and USB connectivities.

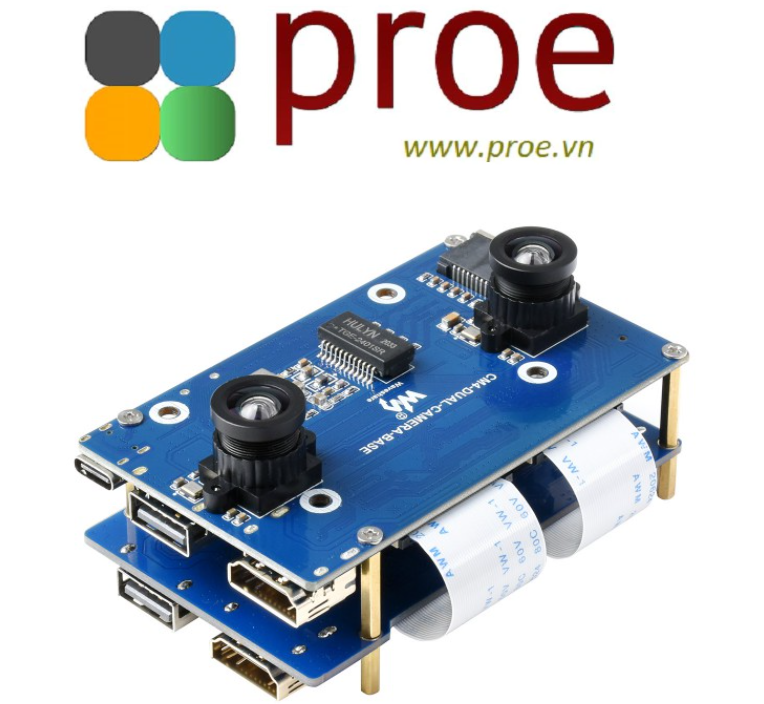

Dual camera base + Interface expander
Comes with additional interface expander, providing standard 40PIN GPIO header for HATs, M.2 slot for SSD or communication module, and more video/USB ports.
Please check the Package Content section for exact part list.
Connecting With Compute Module 4
Standard CM4 Socket, Compatible With Compute Module 4 Lite/EMMC Variants
for reference ONLY, CM4 is NOT included.

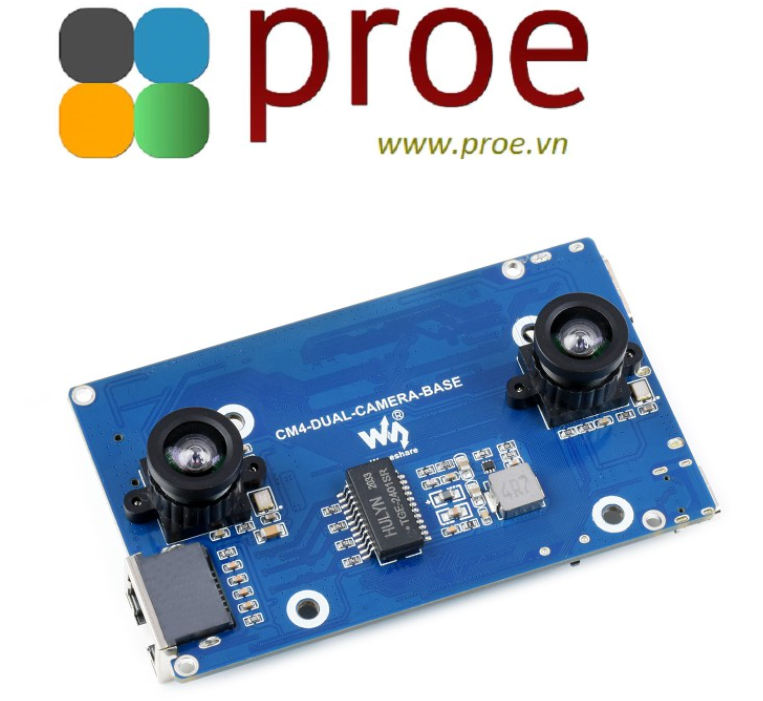

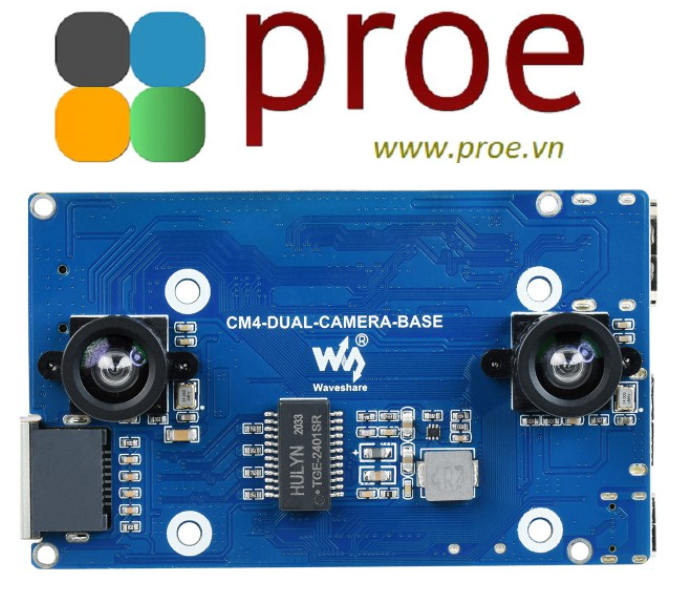

Dual Camera Base Introduction
Providing Interfaces Including ETH, HDMI, Micro SD, USB
DUAL CAMERA BASE SPECIFICATIONS | ||
---|---|---|
CM4 socket | suitable for all variants of Compute Module 4 | |
Networking | Gigabit Ethernet RJ45 | |
USB | USB 2.0 × 1 | |
FFC connector | HDMI & PCIe & USB FFC connector × 1 | |
GPIO FFC connector × 1 | ||
Dual camera | pixels | 8MP |
sensor | IMX219 | |
resolution | 3280 × 2464 (per channel) | |
CMOS size | 1/4 inch | |
aperture | F2.4 | |
focal length | 2.6mm | |
FOV | 83/73/50 degree (diagonal/horizontal/vertical) | |
distortion | < 1% | |
baseline length | 60mm | |
Video | HDMI × 1, supports 4K 30fps output | |
Storage | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants | |
Power input | 5V/2.5A | |
Dimensions | 85.0 × 51.5mm |

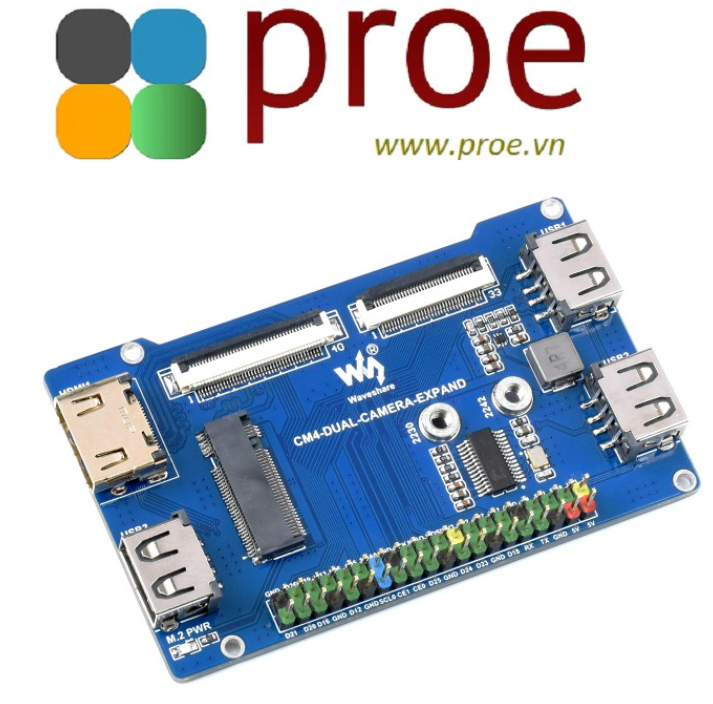

Optional Interface Expander Introduction
Providing Interfaces Including GPIO, HDMI, USB, M.2 M KEY
INTERFACE EXPANDER SPECIFICATIONS | |
---|---|
USB | USB 2.0 × 3 |
FFC connector | HDMI & PCIe & USB FFC connector × 1 |
GPIO FFC connector × 1 | |
Other connector | M.2 M KEY × 1, for connecting NVME SSD or communication module |
Raspberry Pi 40PIN GPIO header × 1 | |
Video | HDMI × 1, supports 4K 30fps output |
Dimensions | 85.0 × 51.5mm |
8MP, Clear Imaging, Effective Recognition
Dual 8MP Cameras, Up To 3280 × 2464 Resolution Per Camera
Dual 4K UHD Outputs Support*
Dual HDMI Ports, Supports Dual 4K 30fps Outputs
* the interface expander is required for dual 4K outputs.
Reserved Space For Heatsink
Allows Attaching Heatsink For Better Heat Dissipation
for reference ONLY, CM4 and heatsink are NOT included.
Extensive Applications
For AI Applications Like Vision Robots, Depth Vision Projects, Stereo Vision Projects...
Intelligent traffic
Detection and recognition for motor vehicles, non-motor vehicles, pedestrians, traffic signs, traffic events...
Intelligent driving
Recognizing and ranging around vehicles and road conditions, recognizing the driver status and providing intelligent assistance.
Math contest
Suitable for teaching competitions like robotic vision, OpenCV, AI IoT projects, Python programming, and so on.
Robotics
Used on industrial robots field, enabling robot functions like target identification, positioning, size measuring, binocular depth mapping, navigation...
What's On Board
The Dual Camera Base
The Interface Expander
Outline Dimensions
