BBC micro:bit V2, Upgraded Processor, Built-In Speaker And Microphone, Touch Sensitive Logo

  • Mã sản phẩm: Micro:bit V2
  • Nhà sản xuất: Microbit
  • Website hỗ trợ: https://www.proe.vn
700.000₫
DESCRIPTION


BBC Micro:bit V2, Upgraded Processor, Built-In Speaker And Microphone, Touch Sensitive Logo

NEW BBC MICRO:BIT V2

Built-In Speaker And Microphone
Releasing Your Creativity In The Classroom Through Sound And Touch Sensing

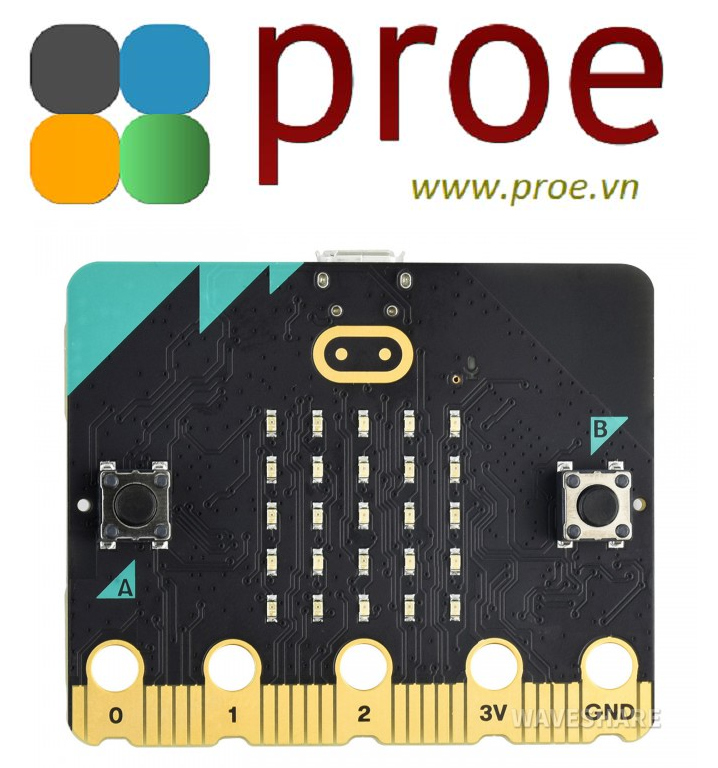

The BBC micro:bit, a pocket-sized (4cm×5cm) ARM development board designed for helping children to learn programming skills, is now updated to the new V2 version. You can use your BBC micro:bit for all sorts of cool creations including digital games, musical instruments, robots, scientific experiments, wearable devices, and more...

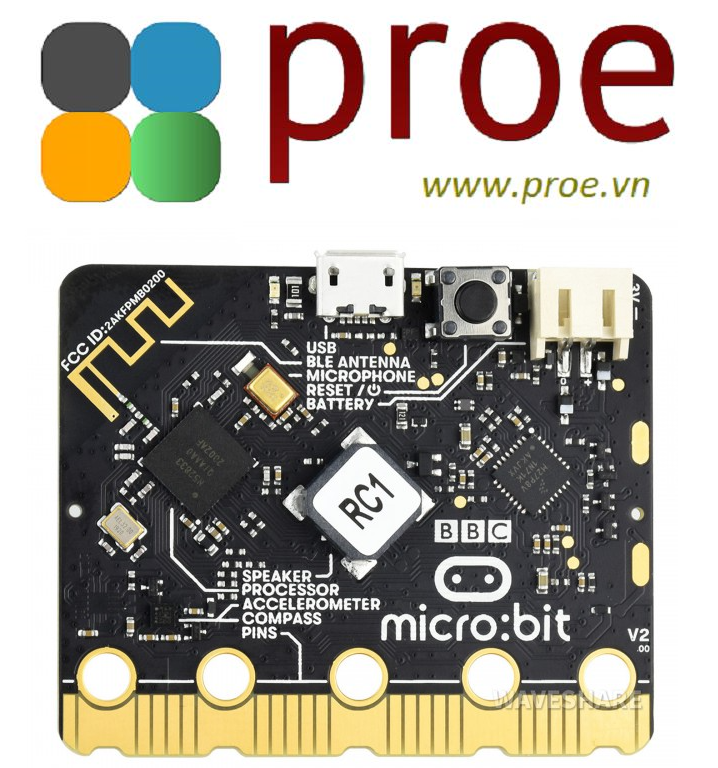

The micro:bit V2 adopts faster ARM Cortex-M4 nRF52833 processor, integrates 2.4G Radio/BLE Bluetooth 5.0, and now includes built-in MEMS microphone, speaker, and touch sensitive logo pin, enabling people to get creative more easily through sound and touch sensing. It also offers 5x5 red LED matrix with separate control for each LED, and two programmable user buttons that can be used to control games or pause/skip songs on a playlist. The micro:bit V2 has a motion sensor which combines 3-axis sensing accelerometer, together with magnetometer that can be used as compass or magnetic field strength sensor.

Comparison

  ORIGINAL V2
PROCESSOR Nordic Semiconductor
nRF51822
Nordic Semiconductor
nRF52833
MEMORY 256KB Flash, 16KB RAM 512KB Flash, 128KB RAM
INTERFACE CHIP NXP KL26Z, 16KB RAM NXP KL27Z, 32KB RAM
MICROPHONE N/A MEMS microphone and LED indicator
SPEAKER N/A On board speaker
TOUCH N/A Touch sensitive logo pin
EDGE CONNECTOR 25 pins, 3 dedicated GPIO, PWM, I2C, SPI and ext. power.
3 ring pins for connecting crocodile clips/banana plugs.
25 pins, 4 dedicated GPIO, PWM, I2C, SPI and ext. power.
3 ring pins for connecting crocodile clips/banana plugs. Notched for easier connection
I2C Shared (mux) I2C bus Dedicated I2C bus
WIRELESS 2.4GHz Radio/BLE Bluetooth 4.0 2.4GHz Radio/BLE Bluetooth 5.0
POWER 5V via Micro USB port, 3V via edge connector or battery pack 5V via Micro USB port, 3V via edge connector or battery pack
LED Indicator, Power off (push and hold power button)
CURRENT AVAILABLE 90mA available for accessories 200mA available for accessories
MOTION SENSOR ST LSM 303
SOFTWARE C++,Makecode,Python,Scratch
SIZE 5cm(w) x 4cm(h)

New Speaker And Microphone

Sense And Response To Sound By The Microphone, Play Tones By The Speaker



How You Clip The Crocodile Clips Now

Resources & Services

Wiki: Micro:bit_V2
