Weight: 0.025 kg
1

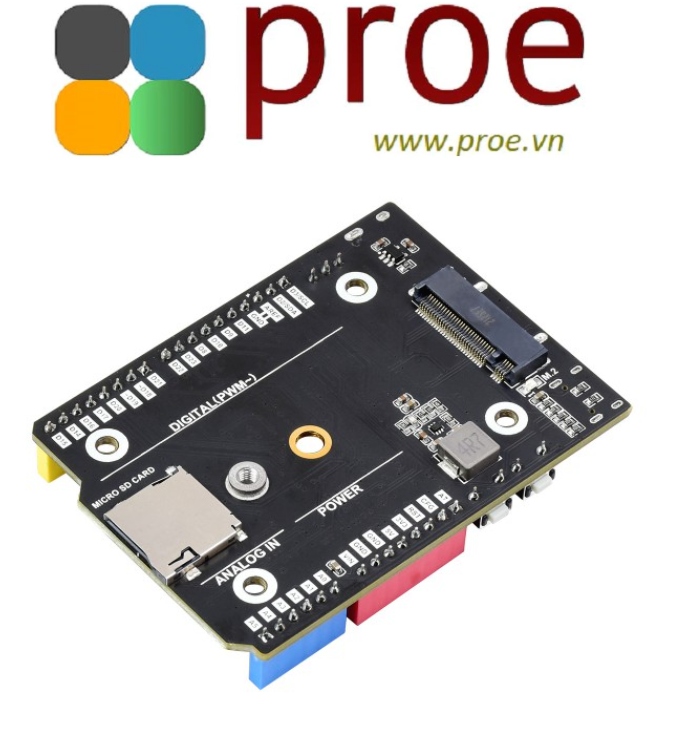

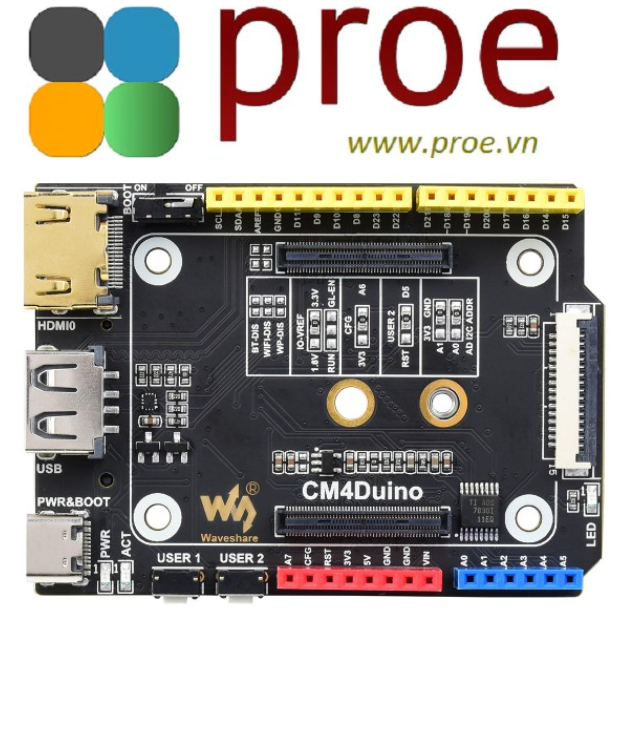

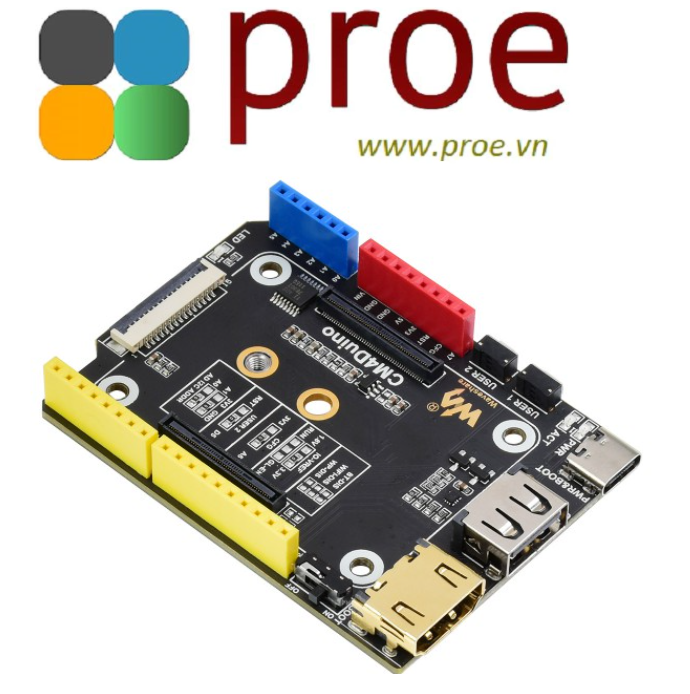

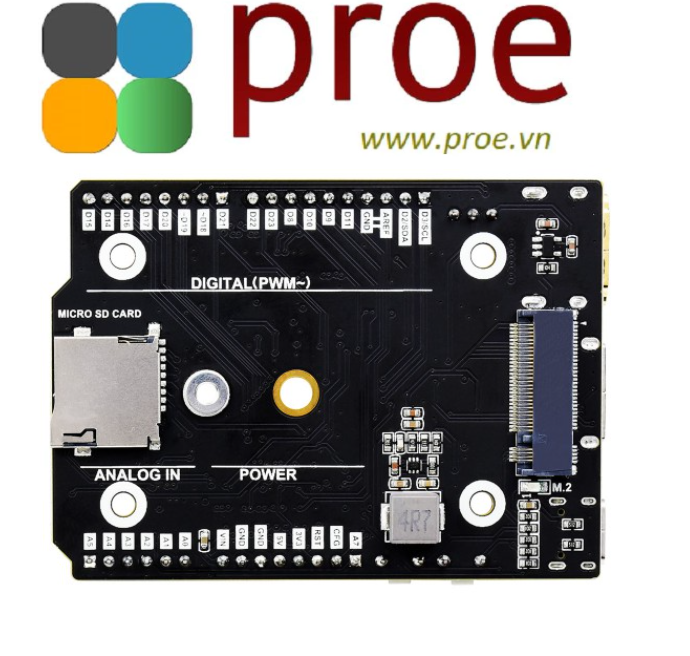

Arduino Compatible Base Board For Raspberry Pi Compute Module 4, HDMI, USB, M.2 Slot
CM4-Duino Base Board
Linking the powerful ecosystem of Arduino
Specifications
CM4 SOCKET | suitable for all variants of Compute Module 4 |
---|---|
CONNECTOR | M.2 M KEY slot, for connecting communication module or NVME SSD |
Arduino compatible GPIO header | |
USB | USB 2.0 Type A × 1 |
CAMERA | MIPI CSI-2 × 1 (15pin 1.0mm FPC connector) |
VIDEO | HDMI × 1, supports 4K 30fps output |
STORAGE | Micro SD card socket for Compute Module 4 Lite (without eMMC) variants |
POWER INPUT | 5V |
DIMENSIONS | 73.58 × 53.34mm |
Connecting With Compute Module 4
Standard CM4 Socket, Suitable For All Variants Of Compute Module 4
Various Useful Interfaces
Pinout Definition
Outline Dimensions
Resources & Services
WIKI: CM4-Duino
