Analog Discovery 2

  • Mã sản phẩm: Analog Discovery 2
  • Nhà sản xuất: Digilent
  • Website hỗ trợ:

Product Description

Interested in purchasing the Analog Discovery 2 along with accessories? Check out our Analog Discovery 2 Pro Bundle or the Analog Discovery 2 Maker Bundle!

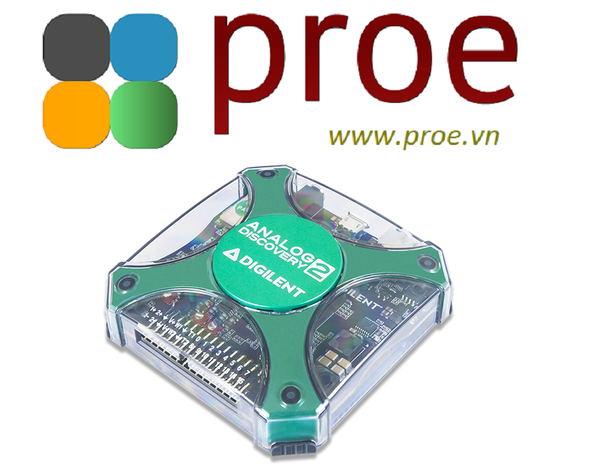

Digilent Analog Discovery 2 is a USB oscilloscope and multi-function instrument that allows users to measure, visualize, generate, record, and control mixed-signal circuits of all kinds. Developed in conjunction with Analog Devices and supported by Xilinx University Program, Analog Discovery 2 is small enough to fit in your pocket, but powerful enough to replace a stack of lab equipment, providing engineering students, hobbyists, and electronics enthusiasts the freedom to work with analog and digital circuits in virtually any environment, in or out of the lab. The analog and digital inputs and outputs can be connected to a circuit using simple wire probes; alternatively, the Analog Discovery BNC Adapter and BNC probes can be used to connect and utilize the inputs and outputs. Driven by the free WaveForms (Mac, Linux and Windows Compatible) software, Analog Discovery 2 can be configured to work as any one of several traditional instruments including an Oscilloscope, WaveForm Generator, Power Supply, Voltmeter, Data Logger, Logic Analyzer, Pattern Generator, Static I/O, Spectrum Analyzer, Network Analyzer, Impedance Analyzer. and Protocol Analyzer.

Analog Discovery 2 is the next generation of the very popular Analog Discovery. The main improvements are:

  • Ability to use an external power supply and consequently deliver more power to user supplies. When USB-powered, the Analog Discovery 2 delivers the same power as the original Analog Discovery.

  • New enclosure with enhanced design and improved connector reliability.

  • Improved signal/noise and crosstalk performances for both the scope and waveform generator.

  • Better defined bandwidth for both the scope and waveform generator.

Support Materials


For all other material:

Resource Center

Get Academic Pricing


  • Two-channel USB digital oscilloscope (1MΩ, ±25V, differential, 14-bit, 100MS/s, 30MHz+ bandwidth - with the Analog Discovery BNC Adapter Board)

  • Two-channel arbitrary function generator (±5V, 14-bit, 100MS/s, 12MHz+ bandwidth - with the Analog Discovery BNC Adapter Board)

  • Stereo audio amplifier to drive external headphones or speakers with replicated AWG signals

  • 16-channel digital logic analyzer (3.3V CMOS and 1.8V or 5V tolerant, 100MS/s)

  • 16-channel pattern generator (3.3V CMOS, 100MS/s)

  • 16-channel virtual digital I/O including buttons, switches, and LEDs – perfect for logic training applications

  • Two input/output digital trigger signals for linking multiple instruments (3.3V CMOS)

  • Single channel voltmeter (AC, DC, ±25V)

  • Network Analyzer – Bode, Nyquist, Nichols transfer diagrams of a circuit. Range: 1Hz to 10MHz

  • Spectrum Analyzer – power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.)

  • Digital Bus Analyzers (SPI, I²C, UART, Parallel)

  • Data Logger - Exportable data and plot functionality
  • Impedance Analyzer - Capacitive and Inductive Elements
  • Protocol Analyzer - SPI, I2C, and UART
  • Two programmable power supplies (0…+5V , 0…-5V). The maximum available output current and power depend on the Analog Discovery 2 powering choice:

    • 500mW total when powered through USB. (Each supply can provide between 0mW and 500mW so long as the total does not exceed 500mW.)

    • 2.1W max for each supply when powered by an auxiliary supply.

    • 700mA maximum current for each supply.

  • An available Software Development Kit for programming with Python and C++, and a toolkit for programming with LabVIEW.

Xem thêm Thu gọn
