8inch DSI LCD (C)

PACKAGE CONTENT

Weight: 0.287 kg

1. 8inch DSI LCD (C) x1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
3. Screws pack x1

1

2

3

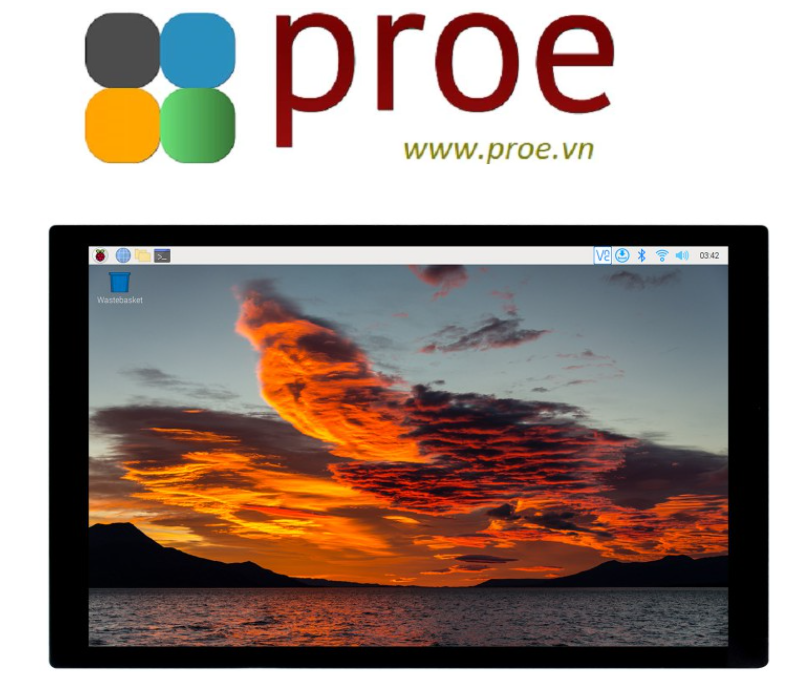

8inch Capacitive Touch Display For Raspberry Pi, 1280×800, IPS, DSI Interface

8″ Touch Display

HD Resolution | Multi-Point Touch | Full Color

• Size8″
•
• Resolution1280×800
•
• Display PortDSI
•
• Display PanelIPS
•
• Viewing Angle178°
• Touch TypeCapacitive
•
• Touch Points10-Point
•
• Touch PortI2C
•
• Touch PanelToughened Glass
•
• Touch Panel TechOptical Bonding

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver required

Supports Pi 4B/3B+/3A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter cable

Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

for reference only, Raspberry Pi 4B and 3B+ are NOT included.

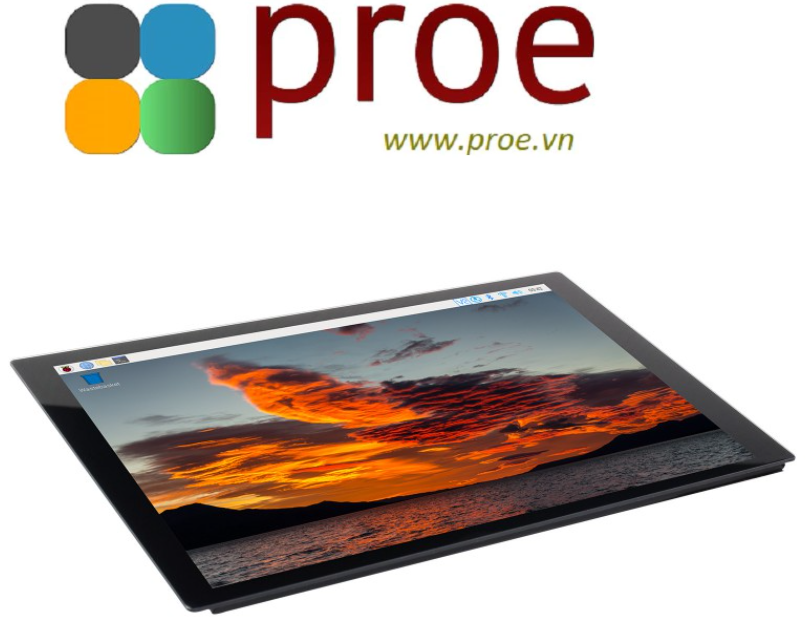

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

Capacitive 10-Point Touch

• up to 10-point touch, depending on the operating system
• up to 6H hardness toughened glass panel
• Optical Bonding, display well and dustproof

Adjustable Brightness Via Software

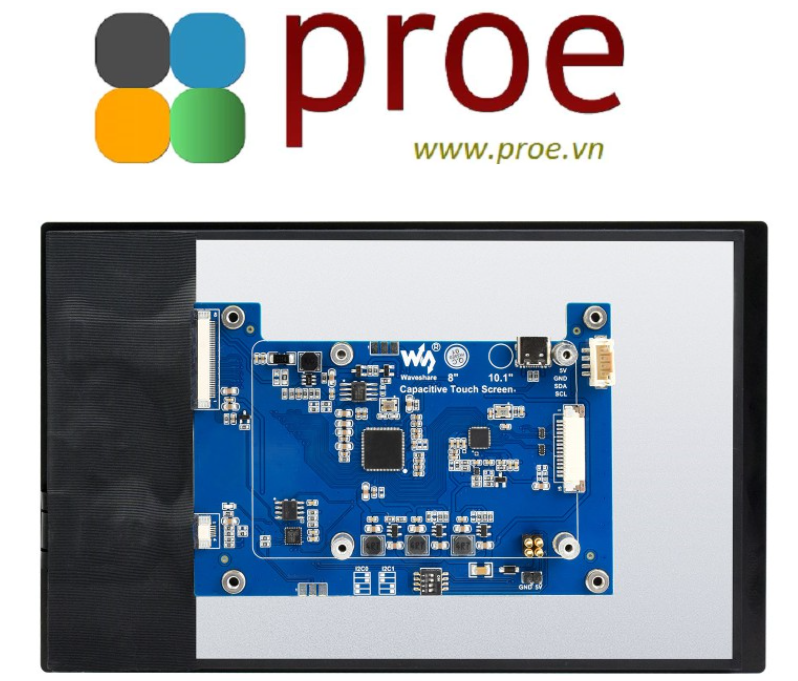

Design Features

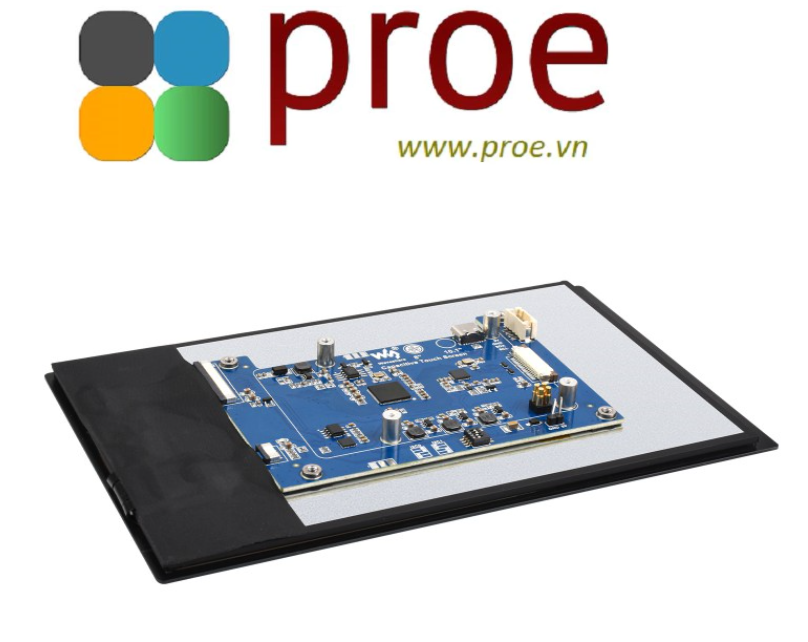

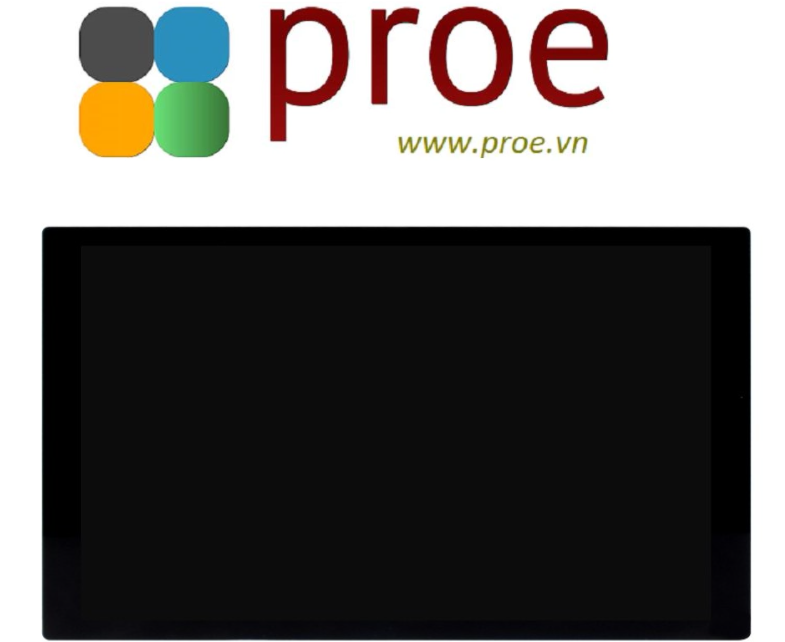

Product Show

Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/8inch_DSI_LCD_(C)
