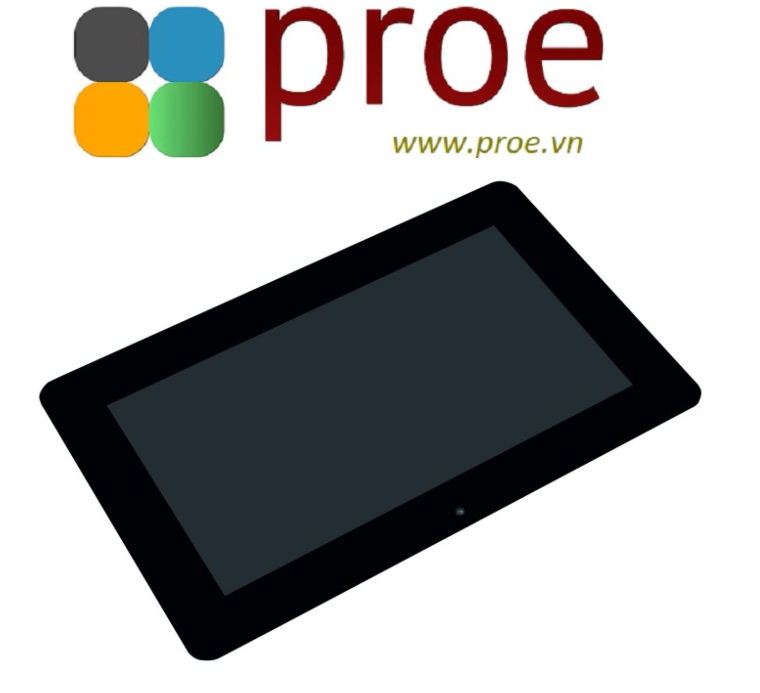

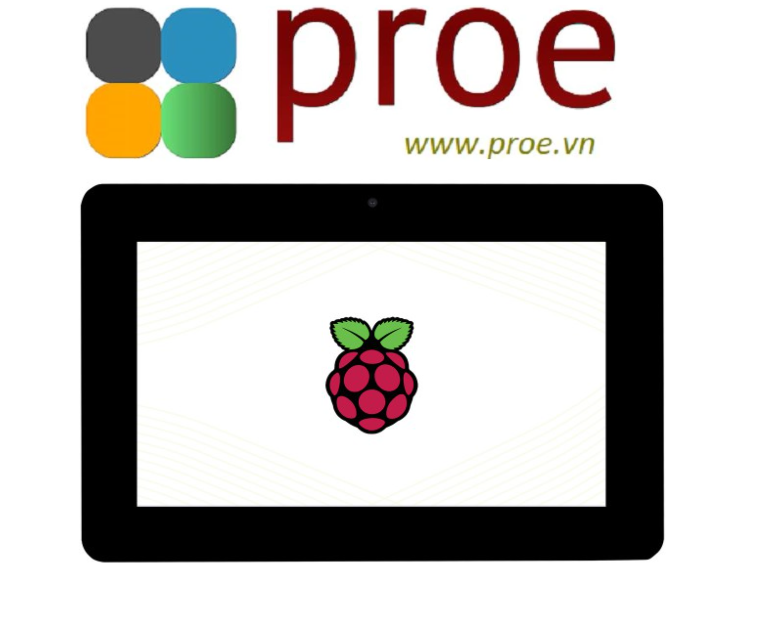

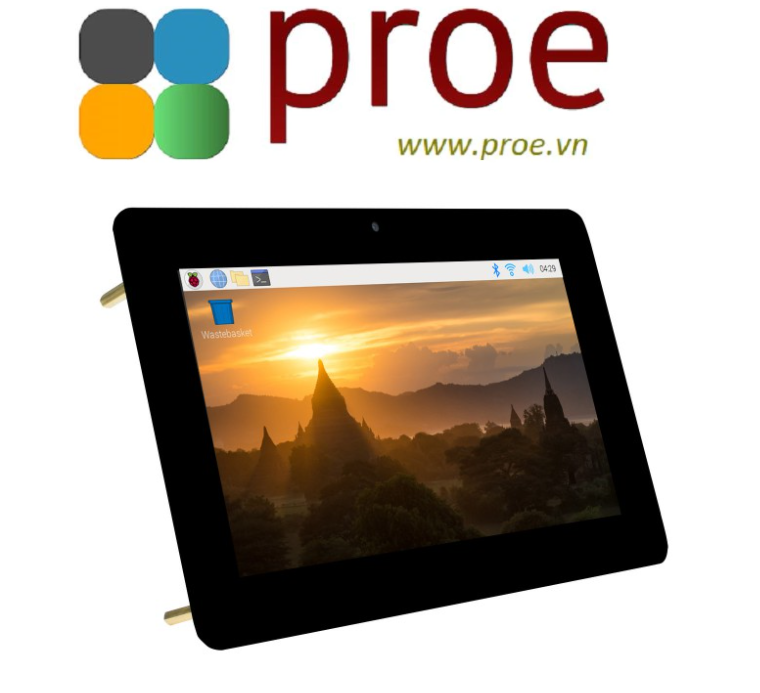

8inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera, 800×480, DSI

PACKAGE CONTENT

Weight: 0.414 kg

1. 8inch DSI LCD (with cam) x1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
3. FPC 15PIN 1.0 pitch 120mm (opposite sides) x1
4. 2PIN wire 10cm x1
5. Screws pack x1

1

2

3

4

8inch Capacitive Touch Display For Raspberry Pi, With 5MP Front Camera, 800×480, DSI Interface

8″ Touch Display With 5MP Front Camera

• Size8″
•
• Resolution800×480
•
• Front Camera5MP
•
• Display PortDSI
•
• Camera PortCSI
•
• Touch TypeCapacitive
•
• Touch Points5-Points
•
• Touch PortI2C
•
• Touch PanelToughened Glass
•
• Power ConsumptionLow Power

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu, single point touch, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter board

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

5MP Front Camera

Touch Control

1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software

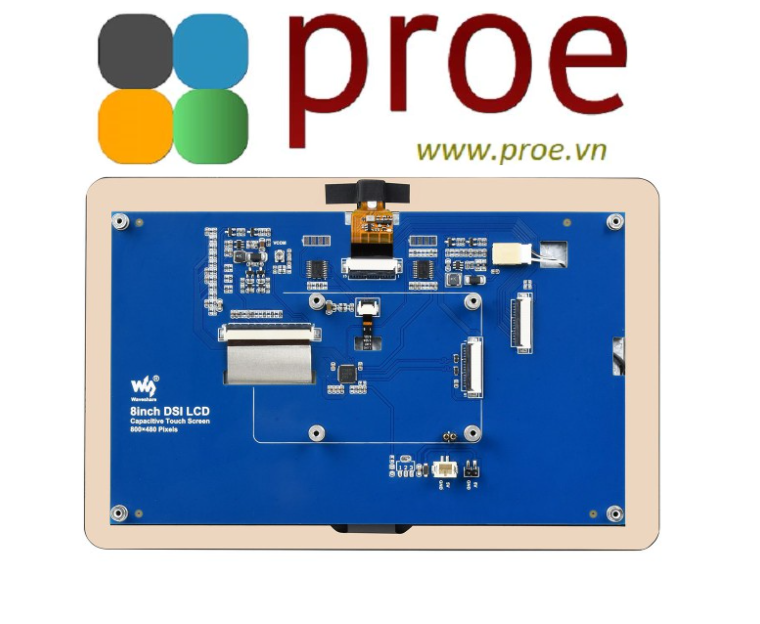

Design Features

1. LCD FFC cable anti-interference design, more stable for industrial application
2. VCOM voltage adjustment for optimizing display effect
3. Power supply via pogo pins, eliminating messy wiring
4. Two types of 5V output headers, for connecting cooling fan or other low power devices
5. With OV5647 5MP camera, 72.9° diagonal FOV, 2592×1944 resolution
6. Large front panel design, make it easy to match user-defined cases, or to be integrated into sorts of devices
7. Adopts SMD nuts for holding and fixing the board, more compact structure

Appearance And Dimensions

Resources & Services

Wiki: 8inch_DSI_LCD_(with_cam)
