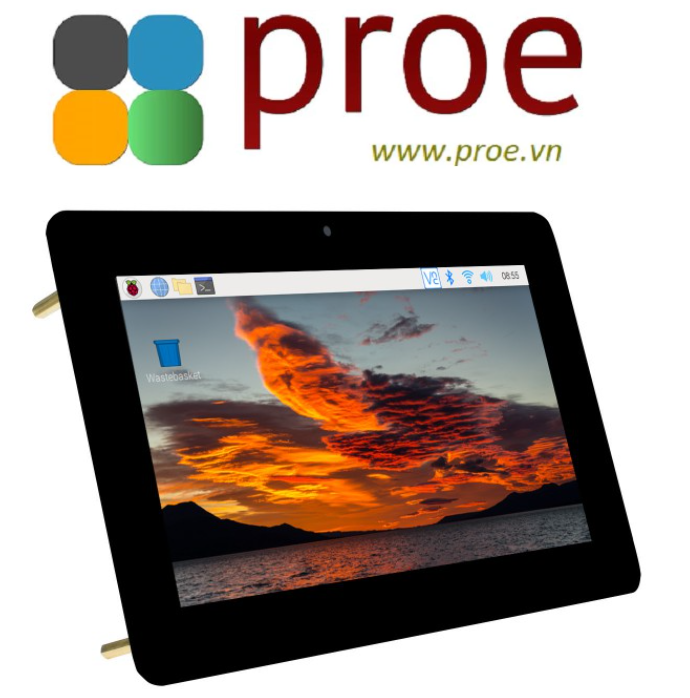

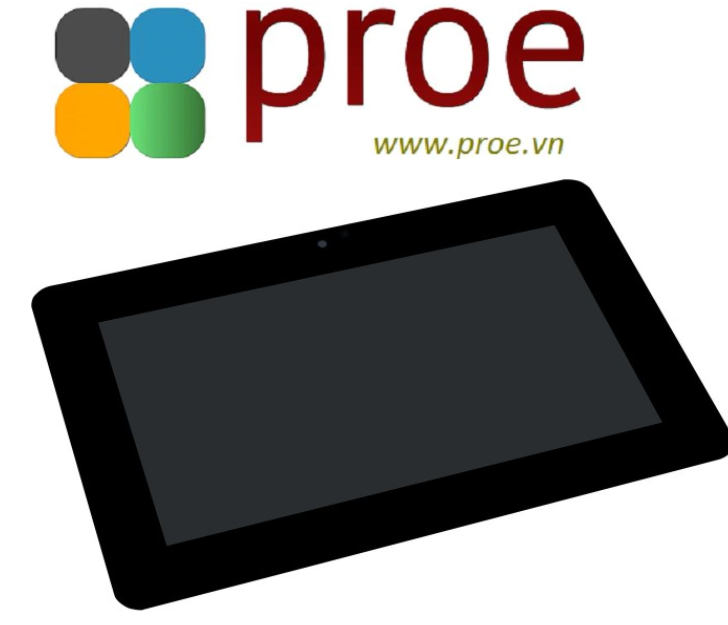

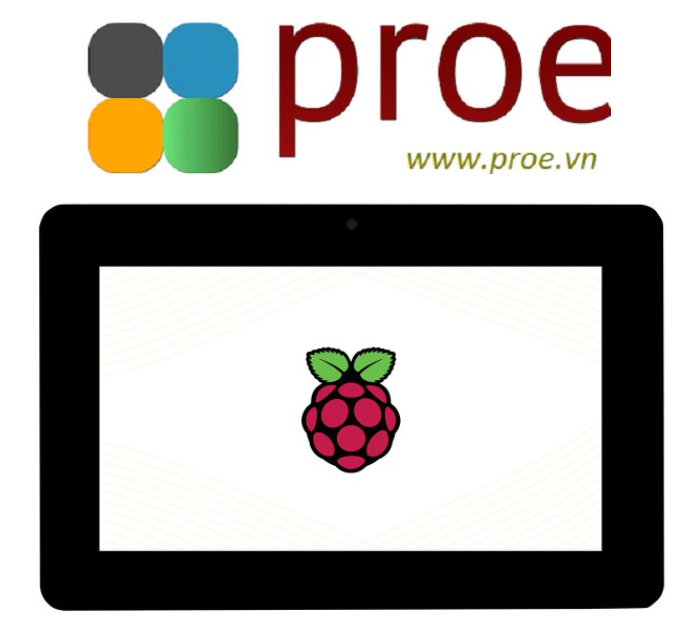

8inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480

PACKAGE CONTENT

Weight: 0.412 kg

1. 8inch DSI LCD x1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
3. 2PIN wire 10cm x1
4. Screws pack x1

1

2

3

4

8inch Capacitive Touch Display For Raspberry Pi, 800×480, DSI Interface

8″ Touch Display

• Size8″
•
• Resolution800×480
•
• Display PortDSI
•
• Power ConsumptionLow Power
• Touch TypeCapacitive
•
• Touch Points5-Points
•
• Touch PortI2C
•
• Touch PanelToughened Glass

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter board

Connection Examples

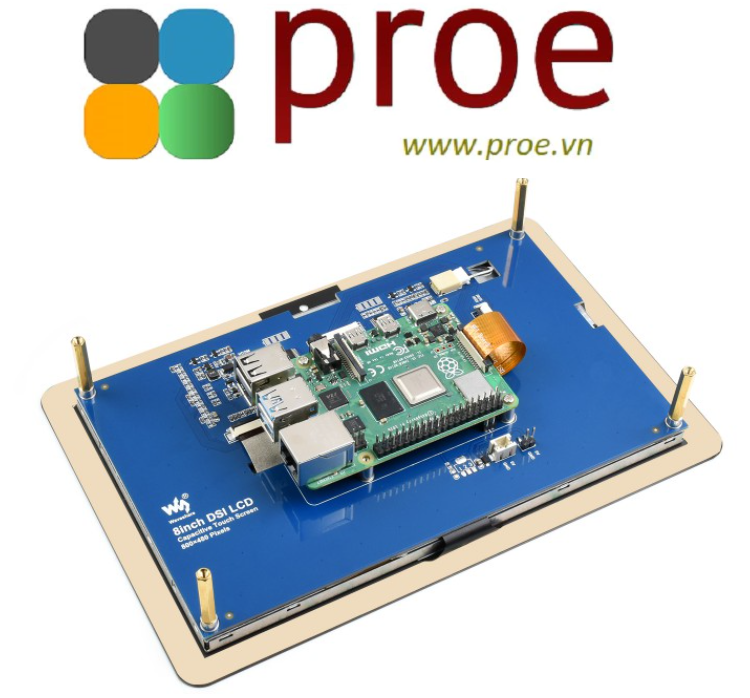

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Touch Control

1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software

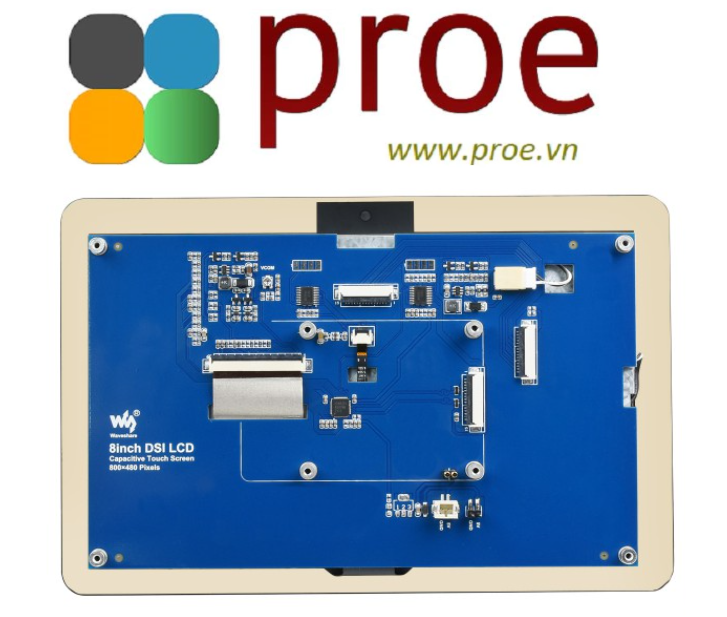

Design Features

1. LCD FFC cable anti-interference design, more stable for industrial application
2. VCOM voltage adjustment for optimizing display effect
3. Power supply via pogo pins, eliminating messy wiring
4. Two types of 5V output headers, for connecting cooling fan or other low power devices
5. Reversed camera hole on the touch panel, allows integrating external camera
6. Large front panel design, make it easy to match user-defined cases, or to be integrated into sorts of devices
7. Adopts SMD nuts for holding and fixing the board, more compact structure

Appearance And Dimensions

Resources & Services

Wiki: 8inch_DSI_LCD
