8-DSI-TOUCH-A

Wiki: www.waveshare.com/wiki/8-DSI-TOUCH-A

Weight: 0.396 kg

1. 8-DSI-TOUCH-A x1
2. MIPI-DSI-Cable-12cm x1
3. MX 1.25 2PIN to 2.54 3PIN cable x1
4. FFC 22PIN cable ~200mm x2
5. MX 1.25 2PIN to MX1.25 4PIN cable ~150mm x1
6. Screws pack x1

1

2

3

4

5

6

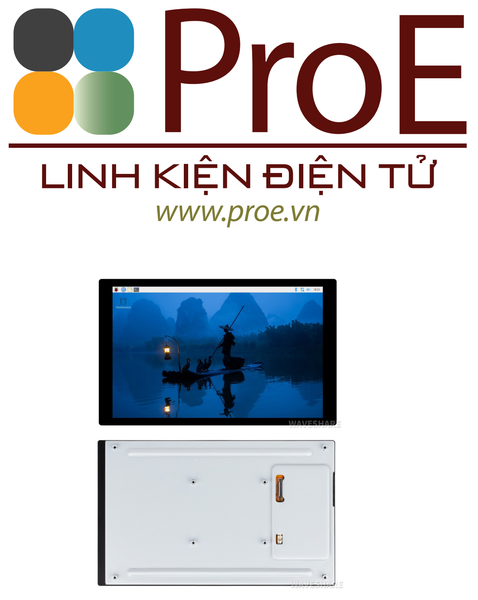

8inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch

8″ DSI Capacitive Touch Display

• Size8″
• Resolution800×1280
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Brightness400cd/㎡

The display orientation is portrait by default, with 800×1280 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch

ESP32-P4

Supports LVGL GUI programs, up to 10-point touch

RK3506

Supports Buildroot / Ubuntu, etc. 10-point touch

RK3576

Supports Buildroot / Debian / Android, etc. 10-point touch

connection examples

Connecting to Raspberry Pi 5

Connecting to ESP32-P4-NANO

Connecting to Luckfox-Omni3576 Development Board

Connecting to Luckfox Lyra Development Board

* for reference only, the above controller boards or hosts are NOT included

Thinner and more space-saving

Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 11.6mm

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical bonding, provides clear image, dustproof

Supports backlight adjustment via software

interface definition

outline dimensions
