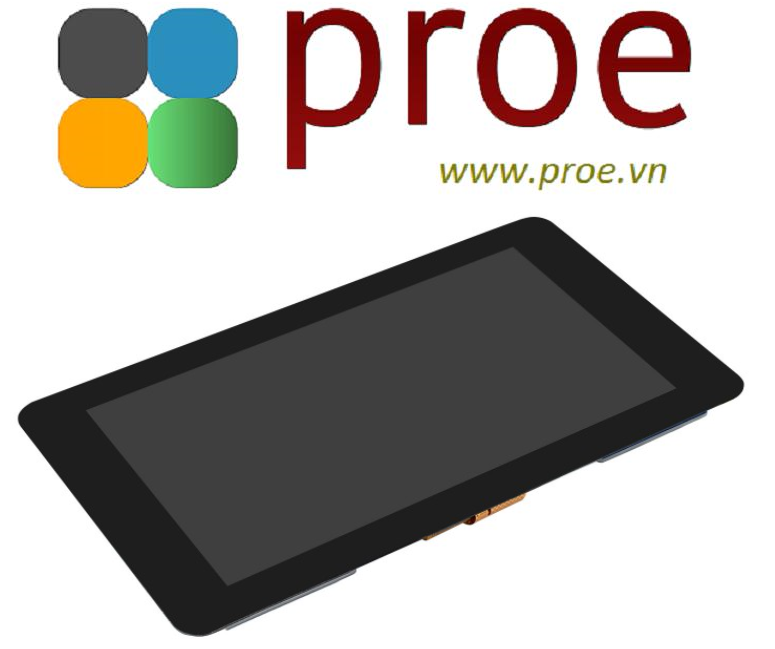

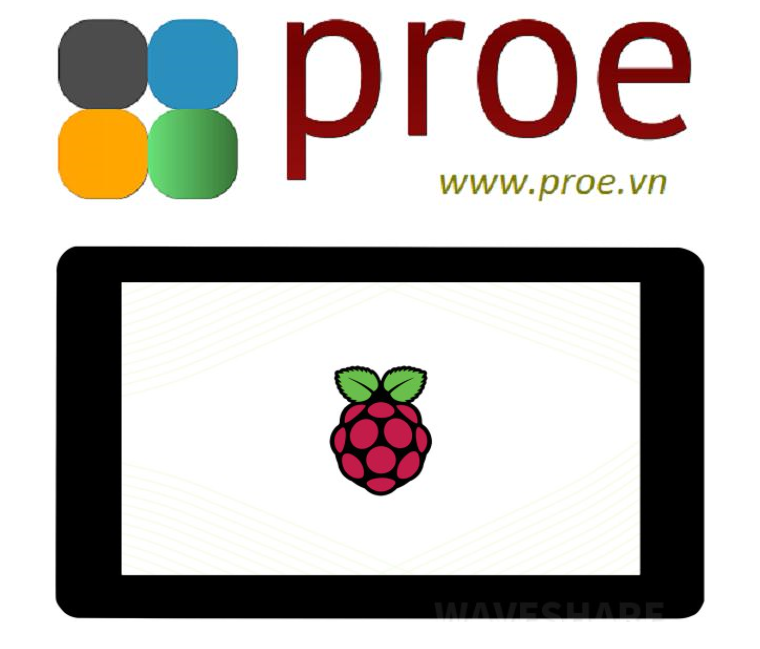

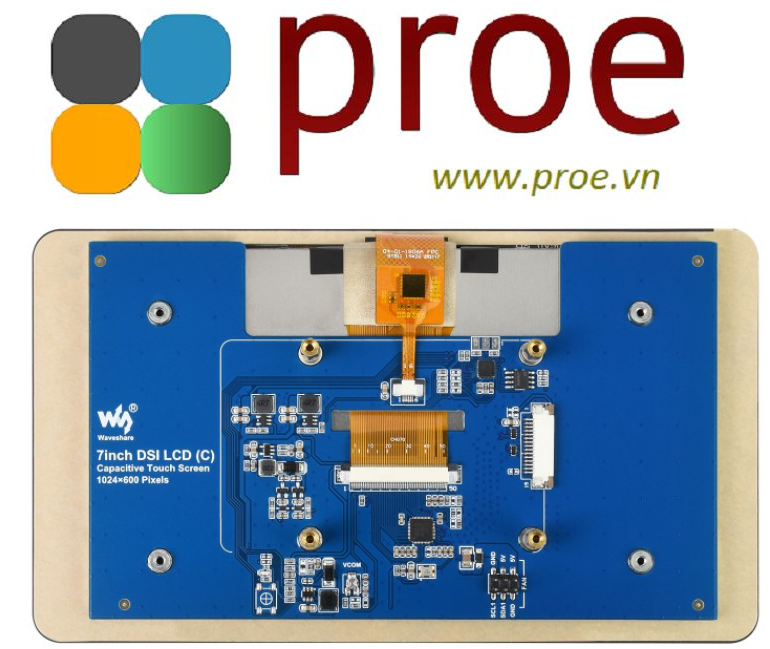

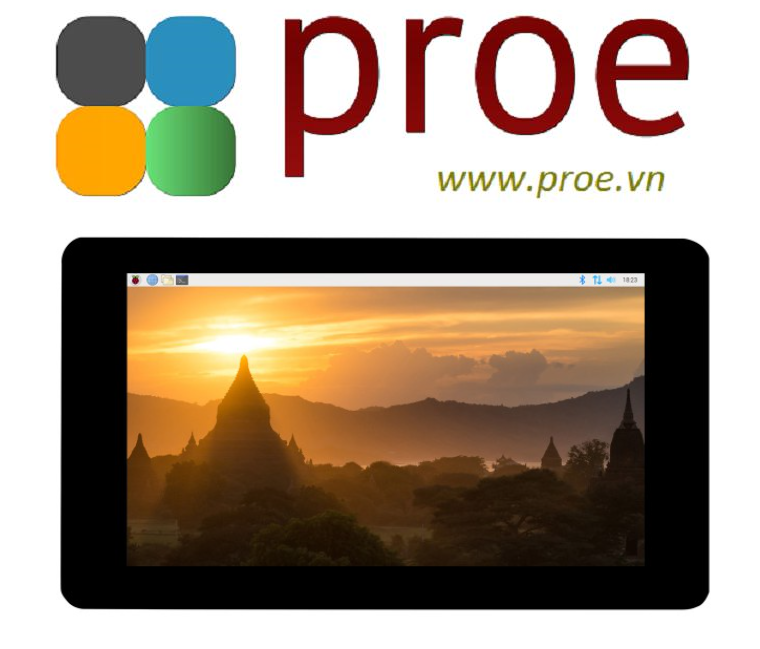

7inch DSI LCD (C) 7inch Capacitive Touch IPS Display for Raspberry Pi, DSI Interface, 1024×600

PACKAGE CONTENT

Weight: 0.252 kg

1. 7inch DSI LCD (C) x1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
3. 2*2PIN wire 6cm x1
4. Screws pack x1

1

2

3

4

7inch Capacitive Touch IPS Display For Raspberry Pi, 1024×600, DSI Interface

7" Touch Display

• Size7"
•
• Resolution1024×600
•
• Display PortDSI
•
• Display PanelIPS
•
• Power ConsumptionLow Power
• Touch TypeCapacitive
•
• Touch Points5-Points
•
• Touch PortI2C
•
• Touch PanelToughened Glass

Device & System Support

Raspberry Pi

Supports Raspbian, 5-points touch, driver required

Supports Pi 4B/3B+/3A+, CM3+/4*

* CM3+/4 requires extra adapter board

Connection Examples

Working With Raspberry Pi 4

Wiring Instruction

Touch Control

1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software

Appearance And Dimensions

Resources & Services

Wiki: 7inch_DSI_LCD_(C)
