7-DSI-TOUCH-C

7inch DSI Capacitive Touch Display, 1024 × 600 Pixels, IPS Panel, 5-Point Touch, Supports Backlight Adjustment Via Software

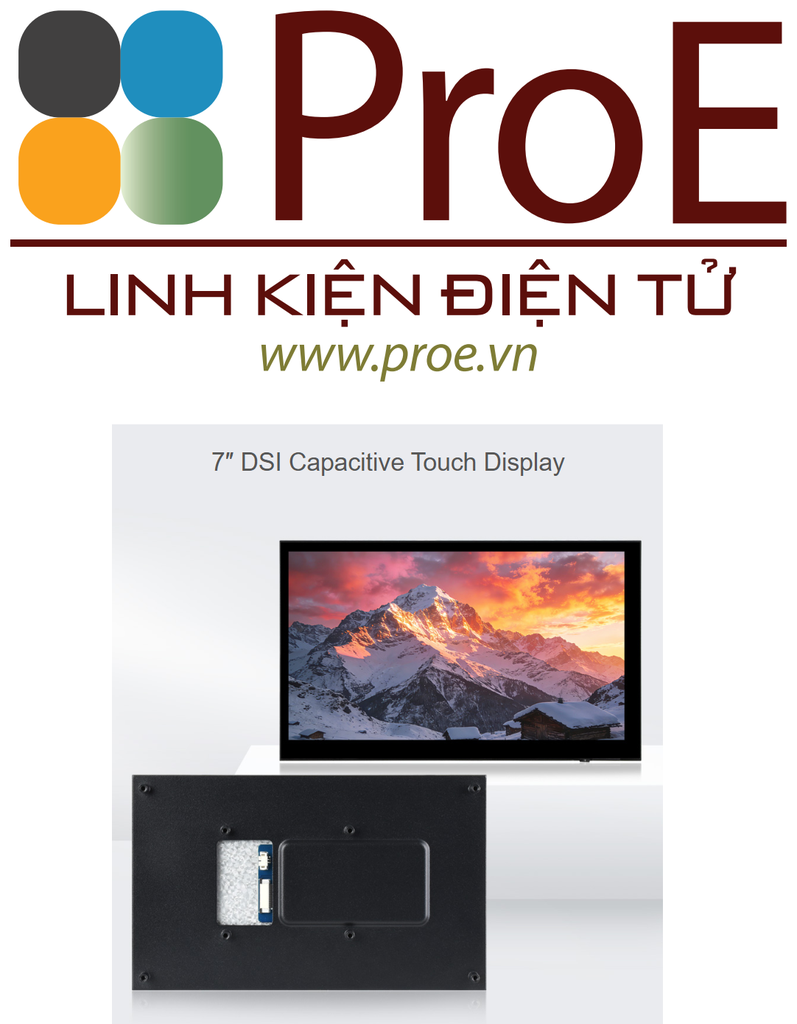

7″ DSI Capacitive Touch Display

• Size7″
• Resolution1024 × 600
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Point
• Touch InterfaceI2C
• Brightness400cd/㎡

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch

ESP32-P4

Supports LVGL GUI programs, 5-point touch

RK3506

Supports Buildroot / Ubuntu, etc. 5-point touch

RK3576

Supports Buildroot / Debian / Ubuntu / Android, etc. 5-point touch

connection examples

Working with Raspberry Pi 5

Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

Working with Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with ESP32-P4-Module-DEV-KIT

Working with Luckfox Lyra

Working with Luckfox Omni3576

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

5-Point Capacitive Touch

supports up to 5-point touch, depending on the operating system

Supports backlight adjustment via software

interface definition

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/7-DSI-TOUCH-C
