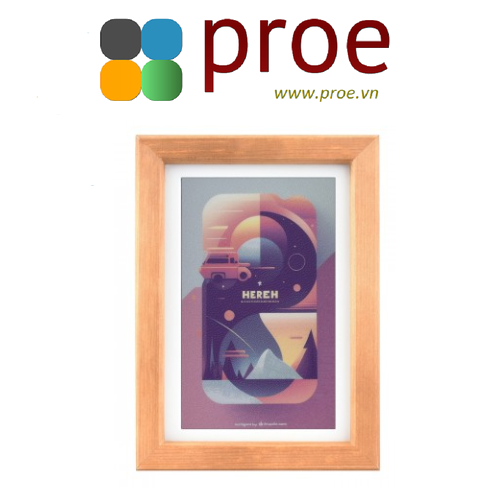

7.3inch ACeP 7-Color E-Paper with Solid Wood Photo Frame, Ultra-long Standby, 800 × 480 Resolution, Batteries Optional

  • Mã sản phẩm: PhotoPainter
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
0₫ Giá thị trường: Tiết kiệm:


  1. PhotoPainter x1
  2. OPTIONS 3.7V 1800mA Lithium battery x1
  3. OPTIONS Button cell x1
  4. USB Type A to Type C cable ~1m x1
  5. 16GB TF card x1
  6. Hook hanger (total 2PCS, 1PCS assembled) x1
  7. Triangle opening tool x1

7.3inch ACeP 7-Color E-Paper With Solid Wood Photo Frame, Ultra-Long Standby, 800 × 480 Resolution, Batteries Optional

7.3″ 7-Color E-Paper Display

Adopts ACeP Technology, Supports 7-Color display





  • Size7.3″
  • Resolution800×480
  • Viewing Angle>170°
  • Display Color7-color

  • Power ConsumptionUltra-low
  • Display DurationPersists without Power
  • Display PanelE-paper
  • ExperiencePaper-like
  • Display AdvantageEye Care, No Blue Light
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective

Features At A Glance

  • Advanced Color ePaper (ACeP) technology, supports 7-Color display
  • Ultra-low power consumption, basically power is only required for refreshing
  • Large capacity Lithium battery (optional), onboard power saving circuit, allows thousand times of refreshing by one charge
  • Onboard RTC chip for timing refresh
  • Simple solid wood photo frame, elegant and beautiful
  • Rotatable stand and hook hanger on the back, not limited to usage scenarios
  • Open source code, more freedom to customize functions


Simple Solid Wood Photo Frame

High-Quality Solid Wood Frame And White Edge, Simple And Elegant

Tabletop Or Wall Mount Support

Rotatable Stand And Hook Hanger On The Back, Different Directions To Place


Use the stand to place on the table



Use a hook to hang on the wall


Lithium Battery Power Supply, Ultra-Long Standby

Power Supply Without Cable Connection, Flexible Placement

* the Lithium battery is optional

* The above data was tested by Waveshare Lab, calculated based on two refreshes per day, for reference only, the actual data may be affected by refresh times.

More Details


Powerful Functions And User-Friendly Design

  1. Auto power-off circuit
    Effectively extend the use time, low power consumption and more energy saving
  2. RTC Chip
    RTC timer function for regular refreshing pictures
  3. TF Card Slot
    Supports Large Capacity TF Card


  1. Picture switching button
    One key switch to the next picture
  2. Auto mode ON/OFF
    One key switch to the auto mode, Button cell (optional) is required to use this mode
  3. RUN and BOOT button
    Easy to burn programs and debug


More Than Just A Photo Frame, Provides More Possibilities

Suitable For Different Content Displays Such As Calendars, Quotes, Paintings, Posters, Etc.


Product Show


Outline Dimensions

Wiki: www.waveshare.com/wiki/PhotoPainter
