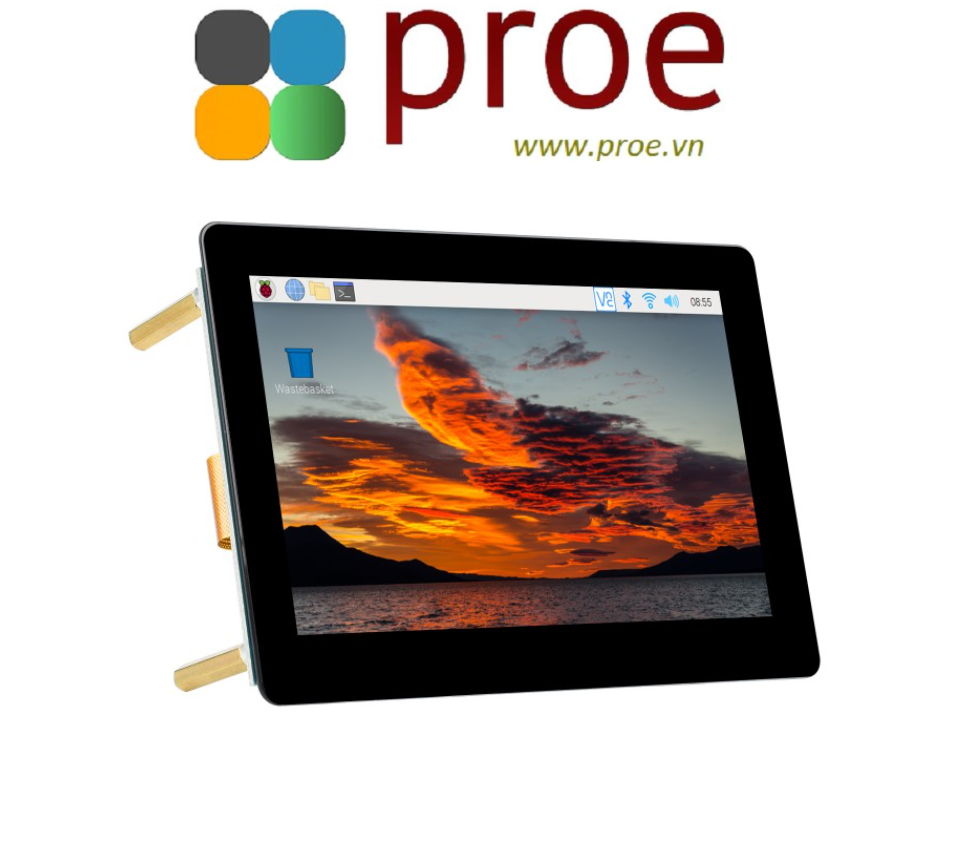

5inch Capacitive IPS Touch Display for Raspberry Pi, 800×480, DSI Interface, Low Power

PACKAGE CONTENT

Weight: 0.158 kg

1. 5inch DSI LCD (B) x1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
3. Screws pack x1

1

2

3

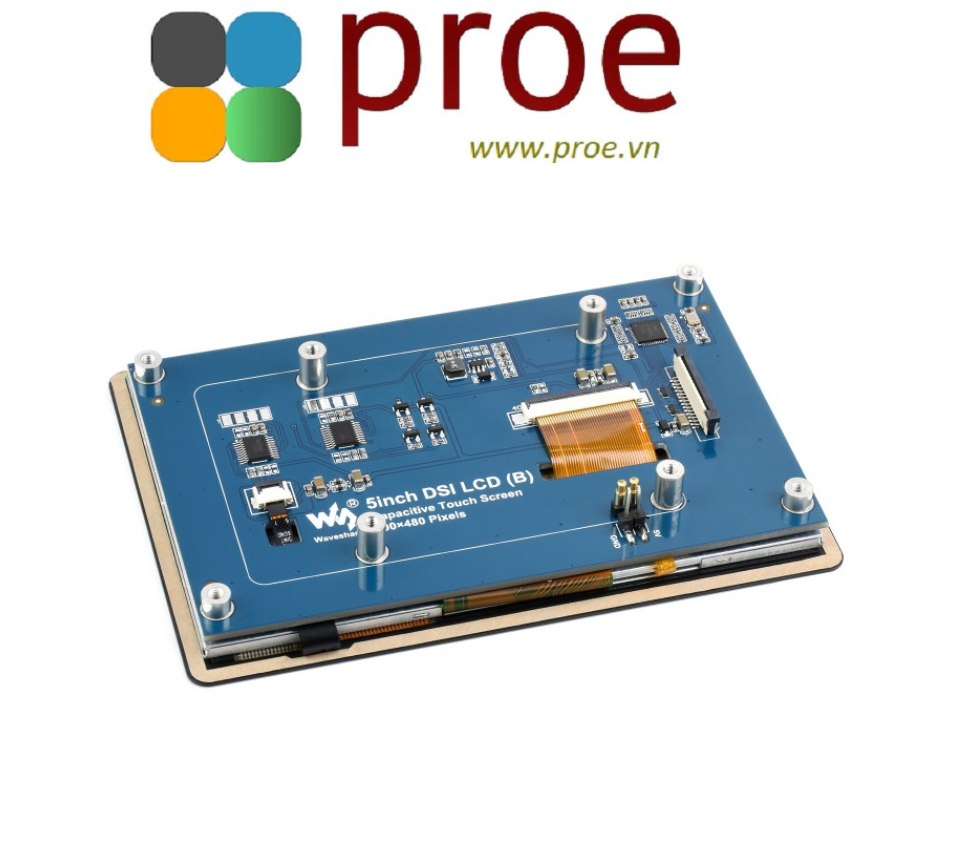

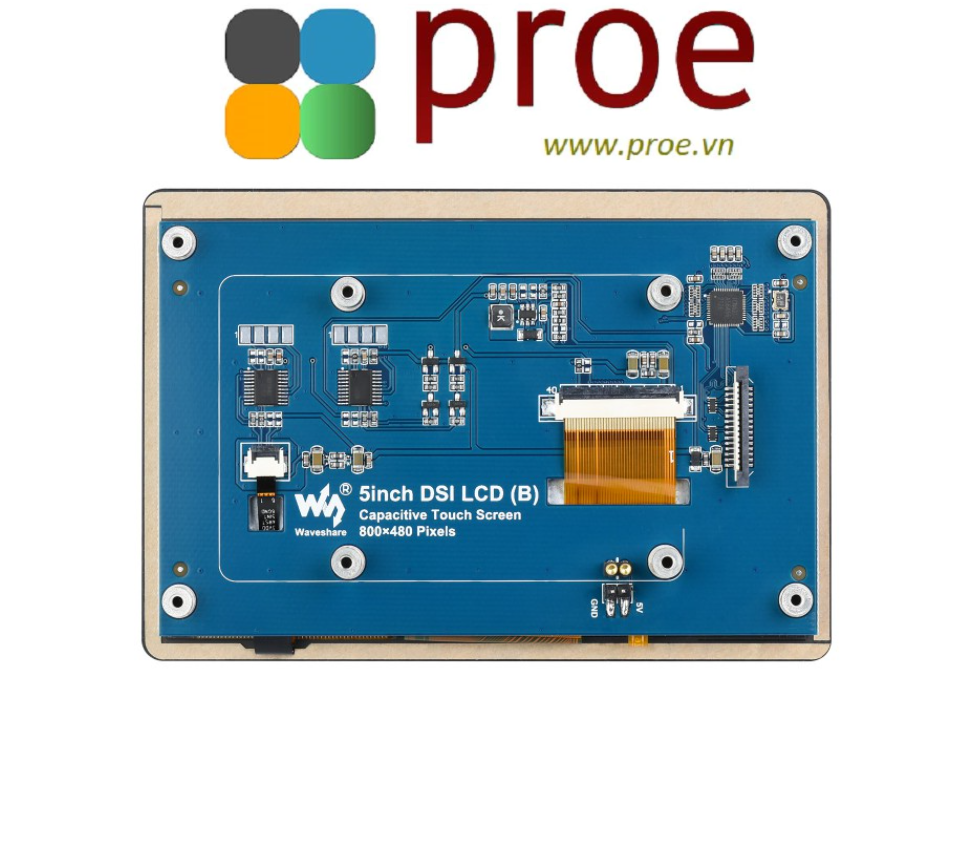

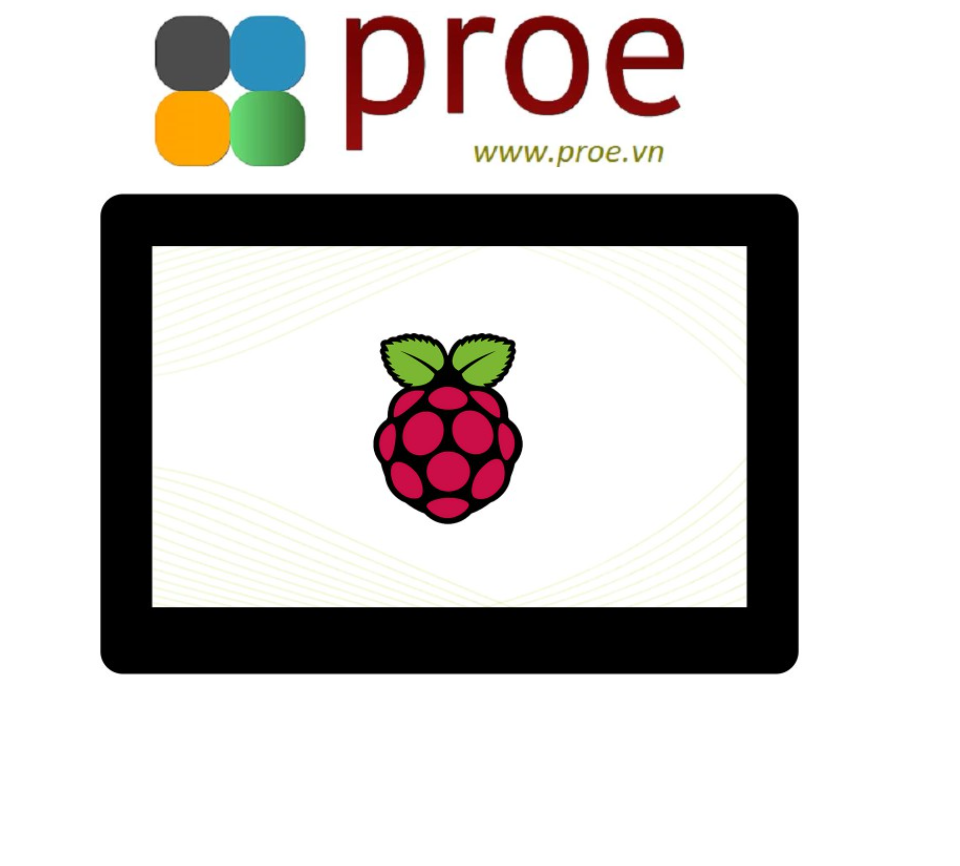

5inch Capacitive IPS Touch Display For Raspberry Pi, 800×480, DSI Interface, Low Power Consumption

5″ Touch Display

• Size5″
•
• Resolution800×480
•
• Display PortDSI
•
• Display PanelIPS
•
• Power ConsumptionLow Power
• Touch TypeCapacitive
•
• Touch Points5-Points
•
• Touch PortI2C
•
• Touch PanelToughened Glass

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter board

Connection Examples

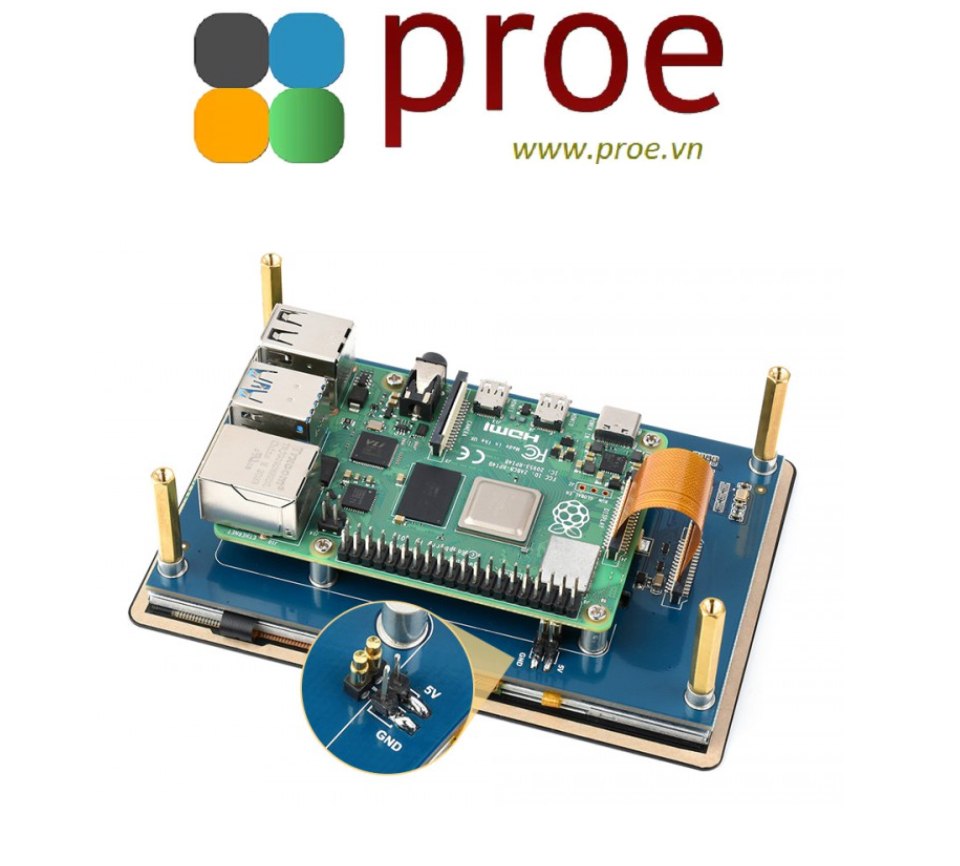

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Touch Control

1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software

Power Supply Via Pogo Pin

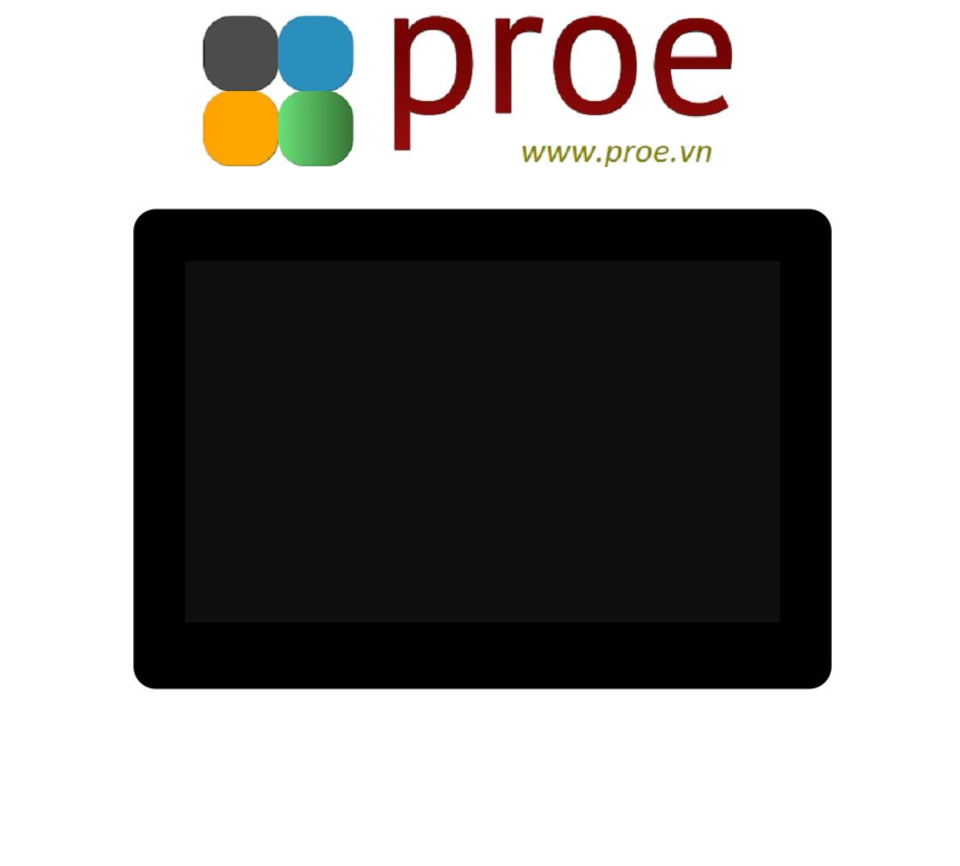

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/5inch_DSI_LCD_(B)
