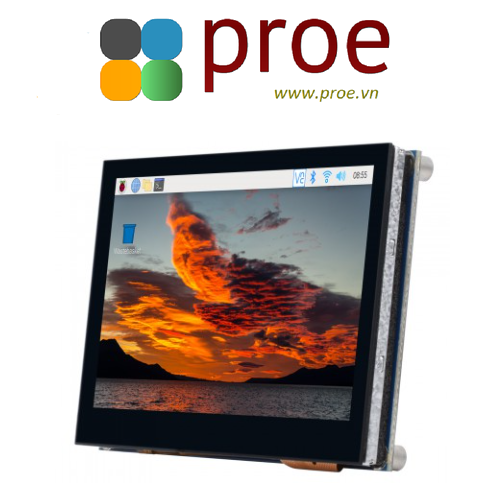

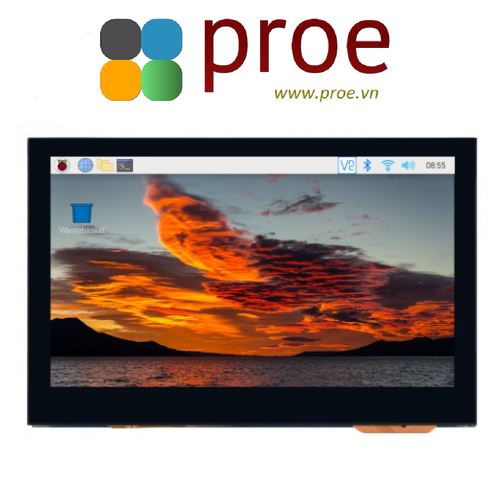

4.3inch QLED Display, DSI Interface, 800 × 480, Integrated Structure, Toughened Glass Panel

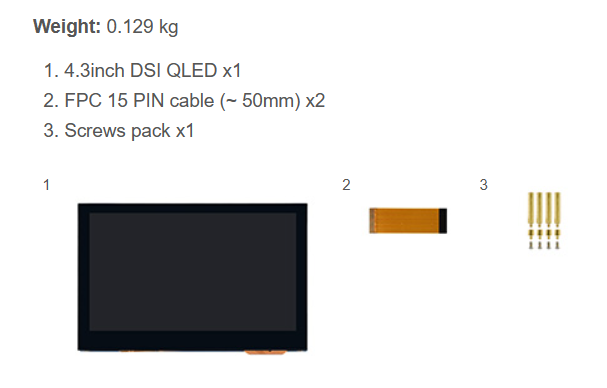

PACKAGE CON TENT

DESCRIPTION

4.3inch QLED Display, DSI Interface, 800 × 480, Integrated Structure, Toughened Glass Panel

4.3″ DSI QLED Touch Display

Integrated Structure | Multi-Point Touch

• Size4.3″
• Resolution800×480
• Display InterfaceDSI
• Display PanelQLED
• Viewing Angle160°
• Touch TypeCapacitive
• Touch Points5-Point
• Touch InterfaceI2C
• Touch PanelToughened Glass
• ConsumptionLow Power
• Certification 1RoHS2.0
• Certification 2CE

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* some CM3/3+/4 base boards require extra adapter cable

Integrated Structure Design

DSI One-Cable Communication For Embedding Engineering Applications Quickly
Provide Secondary Development Resources To Help Simple Development

Working With Raspberry Pi 4B Via DSI Interface

Working With Raspberry Pi 3B+ Via DSI Interface

for reference only, the Raspberry Pi boards are not included.

QLED Display Panel

Excellent Display Performance With 160° Wide Viewing Angle

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: SRGB 92%, NTSC 78%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

5-Point Capacitive Touch

Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation. Adapting Touch Function With I2C Signal, Support 5-Point Touch *

* the actual touch points depends on the operating system

Adjustable Brightness Via Software

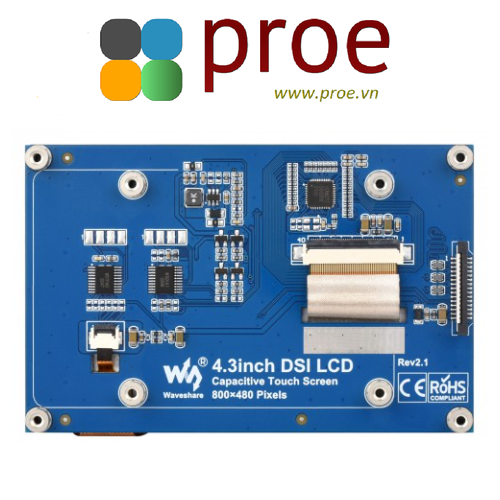

Product Show

Dimensions

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Wiki: www.waveshare.com/wiki/4.3inch-DSI-QLED
