2.8inch Capacitive Touch Screen LCD for Raspberry Pi, 480×640, DPI, IPS, Fully Laminated Toughened Glass Cover, Low Power

Weight: 0.034 kg

• 2.8inch DPI LCD x1

2.8inch Capacitive Touch Screen LCD For Raspberry Pi, 480×640, DPI, IPS, Fully Laminated Toughened Glass Cover, Low Power Solution

2.8" DPI Touch Display

• Size2.8"
• Resolution480×640
• Display PortDPI666 (262K Colors)
• Display PanelIPS
• Viewing Angle160°
• Touch TypeCapacitive
• Touch Points5-Points
• Touch PortI2C
• Touch PanelToughened Glass
• Touch Panel TechFully Laminated
• Power ConsumptionLow Power

Device & System Support

Raspberry Pi

Based on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
5-Points touch control through Raspberry Pi I2C interface
Supports systems like Raspbian, Kali...

Supports future version which is backward compatible

• The display orientation is portrait by default, 480×640 resolution (H×V). Change the software config for landscape display.

Connection Examples

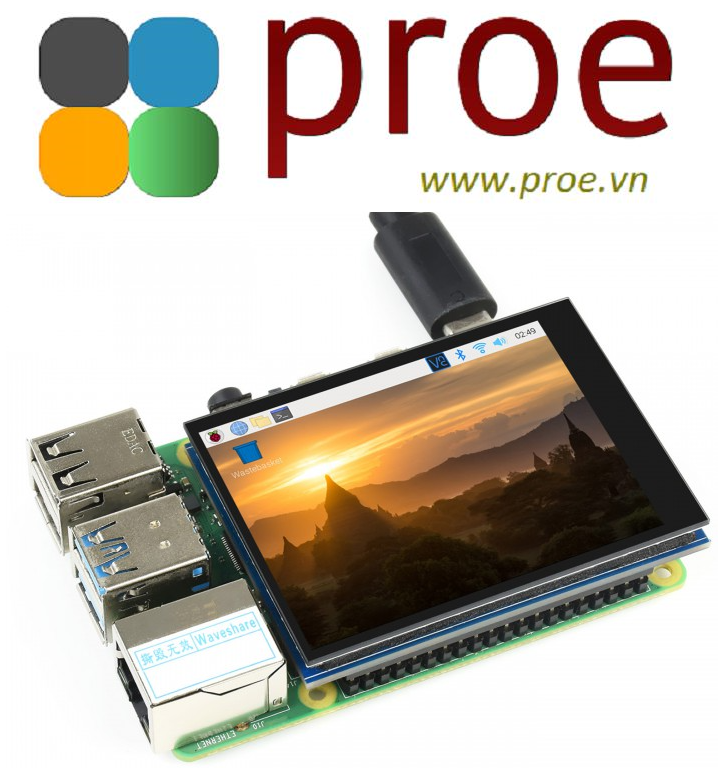

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

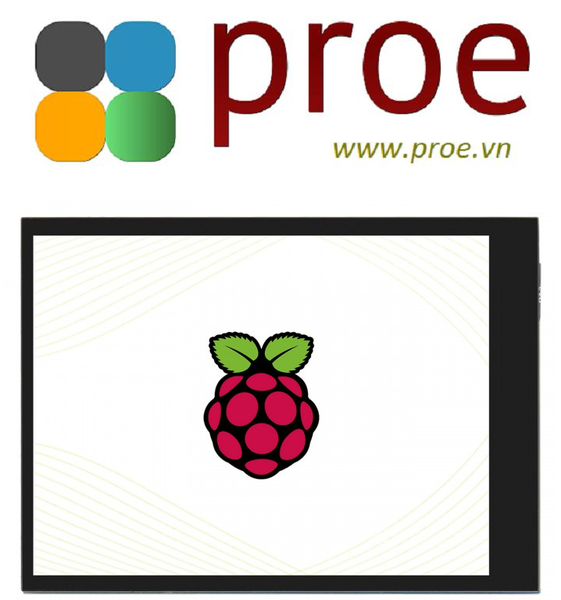

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) fully laminated screen, better display experience, dust-proof.

Appearance And Dimensions

Resources & Services

Wiki: 2.8inch_DPI_LCD
