13.3inch DSI LCD 29369

  • Mã sản phẩm: 29369
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
5.950.000₫

13.3inch DSI LCD

  1. 13.3inch DSI LCD x1
  2. 22P-Cable-100mm x1
  3. 3PIN cable ~70mm x1
  4. MIPI-DSI-Cable-12cm x1
  5. Screws pack x1

Wiki: www.waveshare.com/wiki/13.3inch_DSI_LCD

13.3inch High Resolution DSI Capacitive Touch Display, 1920 × 1080, IPS, Toughened Glass Panel, DSI Interface, 10-Point Touch, optional for full metal back panel
13.3″ DSI Capacitive Touch Display

1920 × 1080 High Resolution | Multi-touch | Full Color

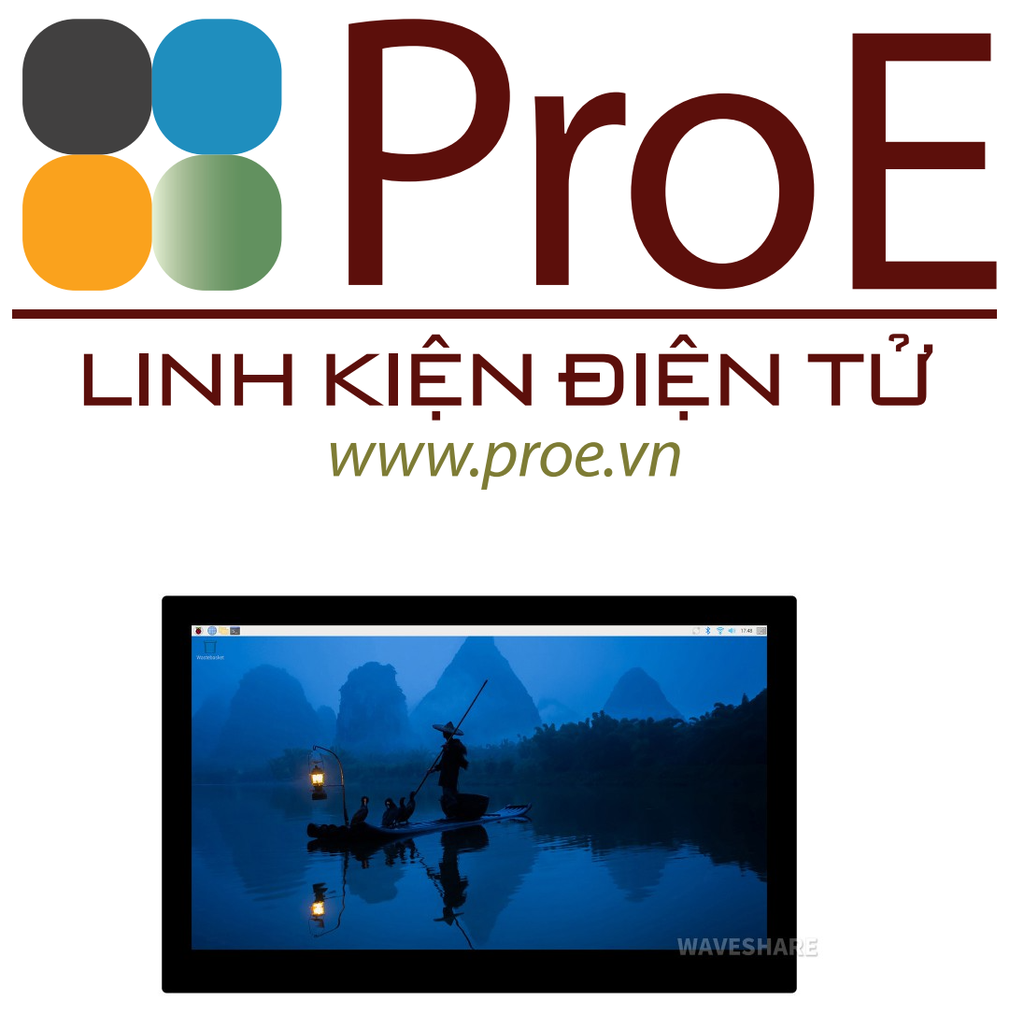

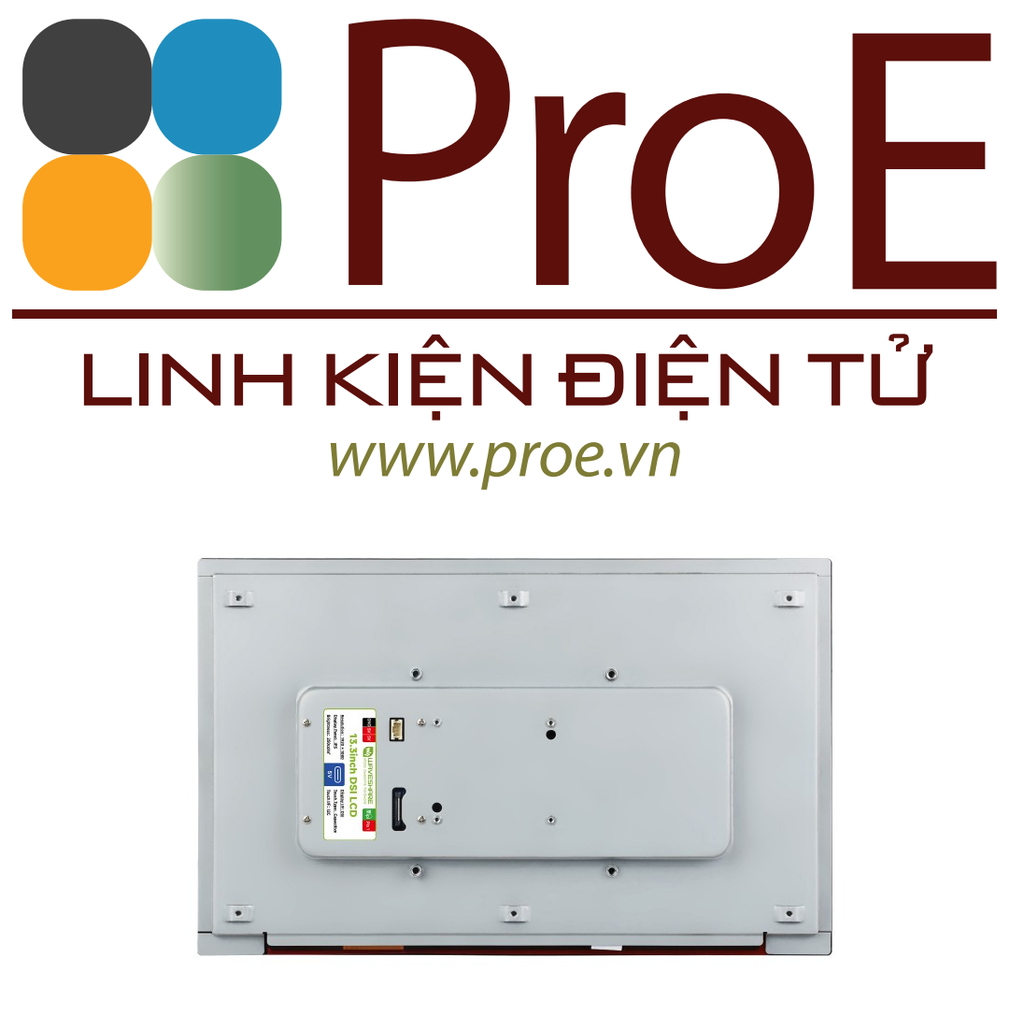

 13.3inch DSI capacitive touch display, front and back view

  • Size13.3″
  • Resolution1920×1080
  • Display InterfaceDSI
  • Display PanelIPS
  • Viewing Angle178°
  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch InterfaceI2C
  • Touch PanelToughened Glass
  • Enclosure (optional)Full Metal Back Panel



    Version Options
    13.3inch DSI capacitive touch display, front and back view

    13.3inch DSI LCD
    with full metal back panel


    13.3inch DSI capacitive touch display, front and back view

    13.3inch DSI LCD (B)
    without back panel

    Device & System Support


    Raspberry Pi
    Supports Raspberry Pi OS, 10-point touch, driver-free for new Raspberry Pi OS

    Connection Examples

    Working with Raspberry Pi 5

    13.3inch DSI LCD with full metal back panel

     13.3inch DSI capacitive touch display, working with Raspberry Pi 5

    Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

    13.3inch DSI LCD without back panel

     13.3inch DSI capacitive touch display, working with Raspberry Pi 5

    Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

    Working with Raspberry Pi 4B

    13.3inch DSI LCD with full metal back panel

     13.3inch DSI capacitive touch display, working with Raspberry Pi 4B

    Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

    13.3inch DSI LCD without back panel

     13.3inch DSI capacitive touch display, working with Raspberry Pi 5

    Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

    Working with Compute Module 4 IO Board

    13.3inch DSI LCD with full metal back panel


    13.3inch DSI capacitive touch display, working with Raspberry Pi 4B

    Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

    13.3inch DSI LCD without back panel


    13.3inch DSI capacitive touch display, working with Raspberry Pi 5

    Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

    for reference only, the Raspberry Pi boards are NOT included.

    Technology upgrade, Better image quality

    1920 × 1080 resolution, provides clear image and vivid color display effect

    13.3inch Capacitive Touch Display, supports better image quality

    IPS Display Panel

    Excellent Display Performance With 178° Wide Viewing Angle

    13.3inch DSI capacitive touch display, adopts IPS display panel

    10-Point Capacitive Touch
    13.3inch DSI capacitive touch display, supports 10-point capacitive touch
    1. up to 10-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel

    Adjustable Brightness Via Software


    Supports automatically showing or hiding the virtual keyboard
    13.3inch DSI capacitive touch display, supports automatically showing or hiding the virtual keyboard

    Interface Introduction

    13.3inch DSI LCD with full metal back panel

     13.3inch DSI capacitive touch display, interface introduction

    13.3inch DSI LCD without back panel

     13.3inch DSI capacitive touch display, interface introduction

    Dimensions

    13.3inch DSI LCD with full metal back panel

     13.3inch DSI capacitive touch display, outline dimensions

    13.3inch DSI LCD without back panel

     13.3inch DSI capacitive touch display, outline dimensions
    Xem thêm Thu gọn
