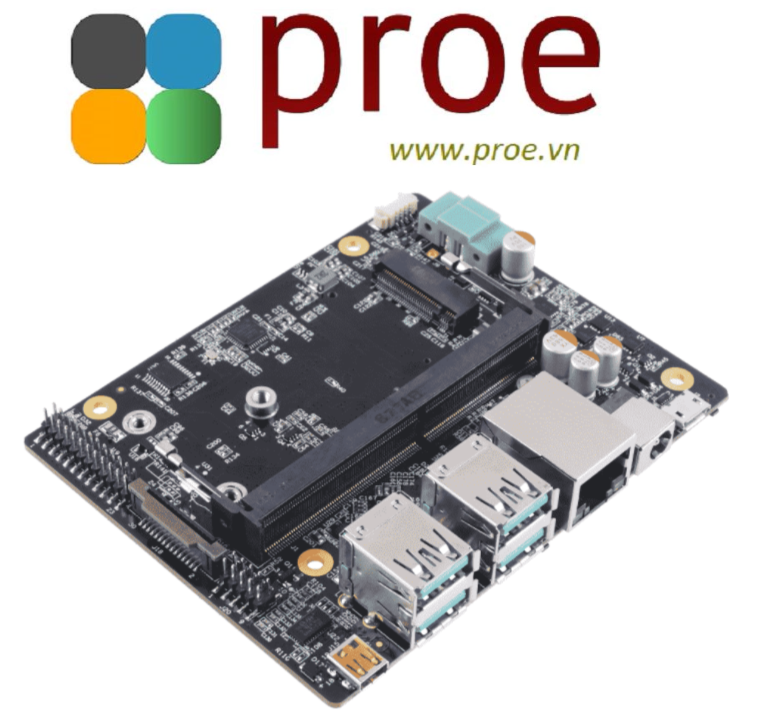

103110022 EX1 Carrier Board for Jetson Nano/Xavier NX/TX2 NX with compact function design and same size of NVIDIA Jetson Xavier NX carrier board (Pre-installed Wifi and supporting 4G & Nano-SIM card )

PRODUCT DETAILS

Note

• The carrier board is specially designed for working with Jetson Nano/ Xavier NX / TX2 NX modules and we will not include them inside.

• When using 4G module, remember to install corresponding software drive.

• When Nano module is connected, the mini PCIe could only work with USB protocol, not PCIe protocol. But for Xavier NX or TX2 NX, both protocols work well.

Features

• USB 2.0 Wifi module pre-installed

• 5V and 12V power jacks

• M.2 Key M Socket

• Micro HDMI

• Gigabit Ethernet: RJ45 Connector

• Mini PCIe Socket for 4G, TF, etc.

Description

EX1 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing Mini PCIe (4G,TF,etc), Micro HDMI, Gigabit Ethernet, USB3.0, USB2.0, Pre-installed USB 2.0 Wifi, M.2 key M, CSI camera, RS232, CAN, PIO, I2C, Fan and other rich peripheral interfaces. Particularly, with the help of 4G module and SIM card, it could realize long-distance and even global communication.

Basically, it works with an NVIDIA Jetson Nano /NVIDIA Xavier NX / NVIDIA Jetson TX2 NX module to achieve graphic AI applications. To be more specific, with the NVIDIA module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It is suitable for intelligent edge devices such as urban smart parking lot management, robots, drones, smart cameras, and portable medical equipment. Also, it is good for portrait tracking and suspicious object detection in special fields. After learning and training, it can be deployed to image terminal guidance, underwater facility inspection and rescue, etc. With the NVIDIA module and functional extension carrier board, people can quickly build efficient and high-performance video analysis applications, and realize the rapid development and deployment of high-performance video recognition.

Application

• Industrial Automation

• Robotics

• Learning

• Computer Vision

• Healthcare

• Drone

Specifications

EX1 Connector Summary:

Note

• If you want to enter recovery mode, follow the below instruction:

1. Connect the module to the board and the power,
2. Press ‘POW’ button once to power on,
3. Press and hold ’REC’ button and at the same time,
4. Press ‘RST’ button once to enter recovery mode. (Keep holding ‘REC’ for 2-3 seconds)

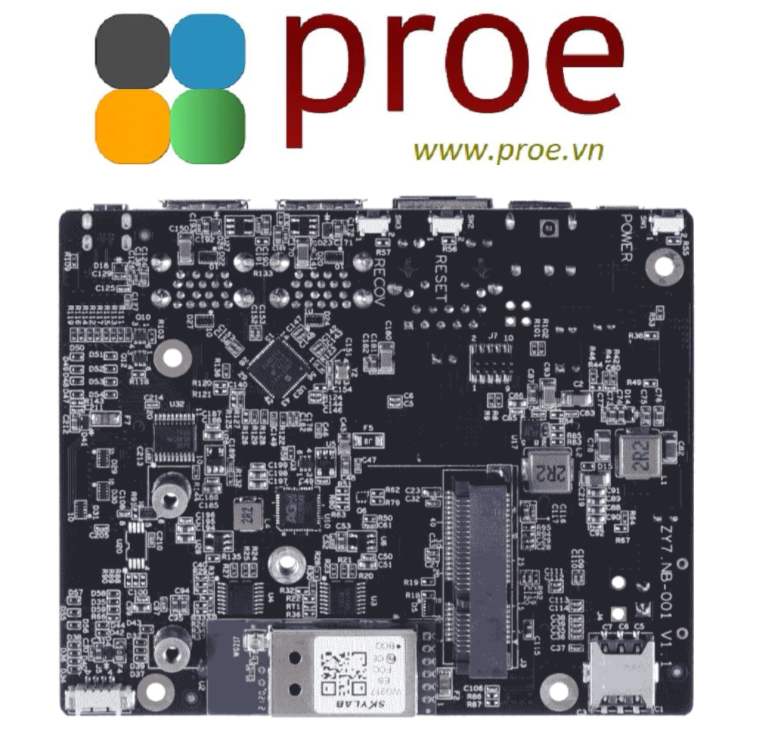

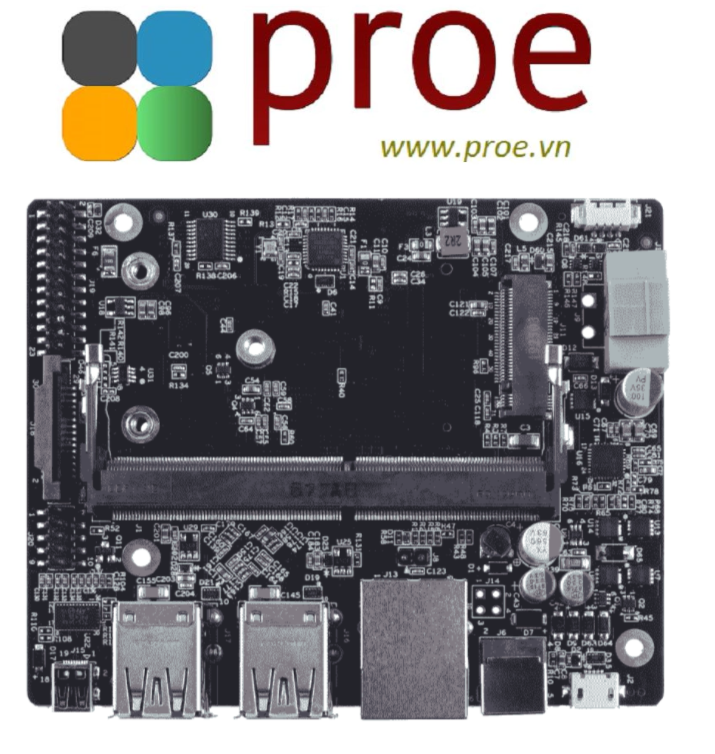

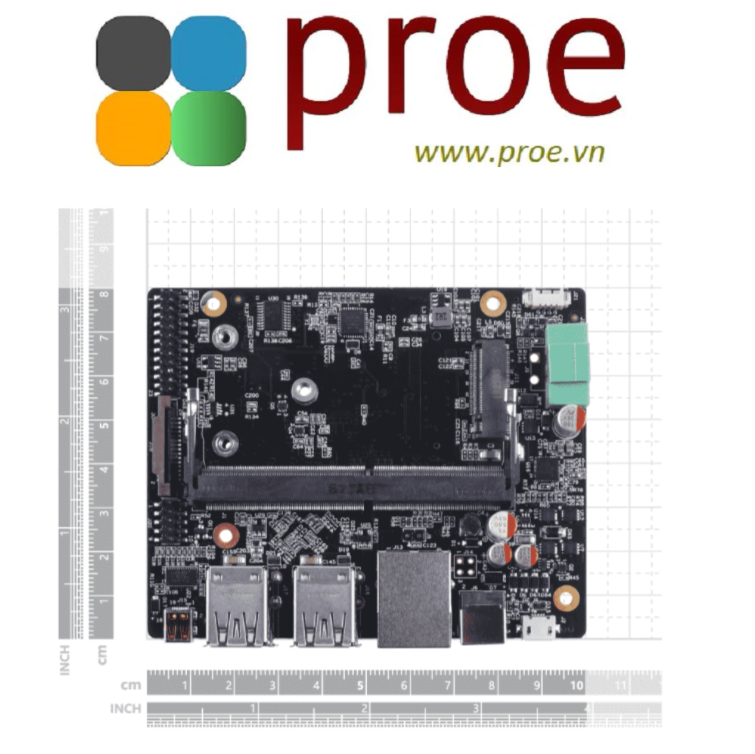

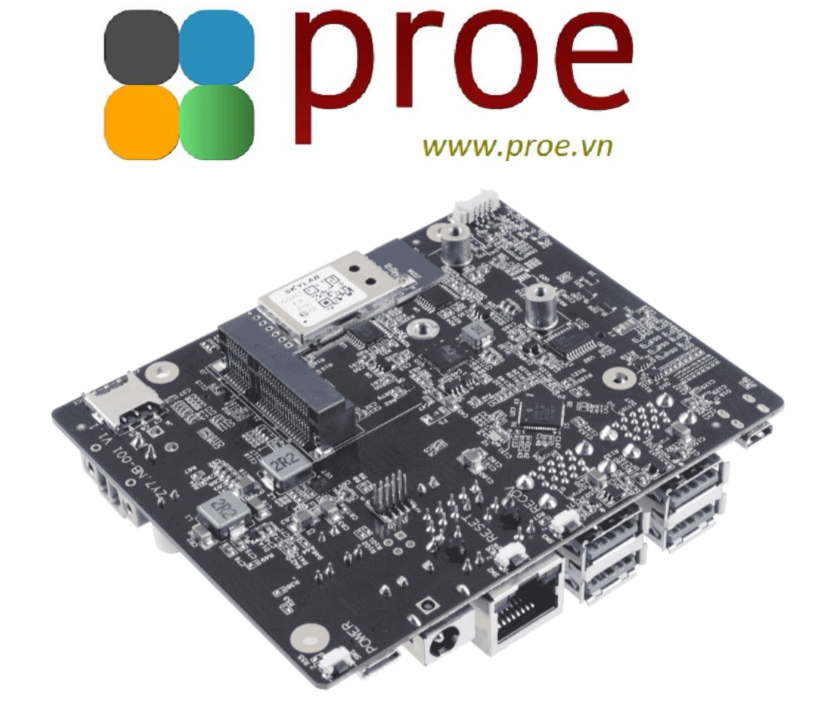

Hardware Overview

Part List

1 x EX1 Carrier Board

ECCN/HTS

LEARN AND DOCUMENTS

Documentations

EX1 Pin Description.pdf
