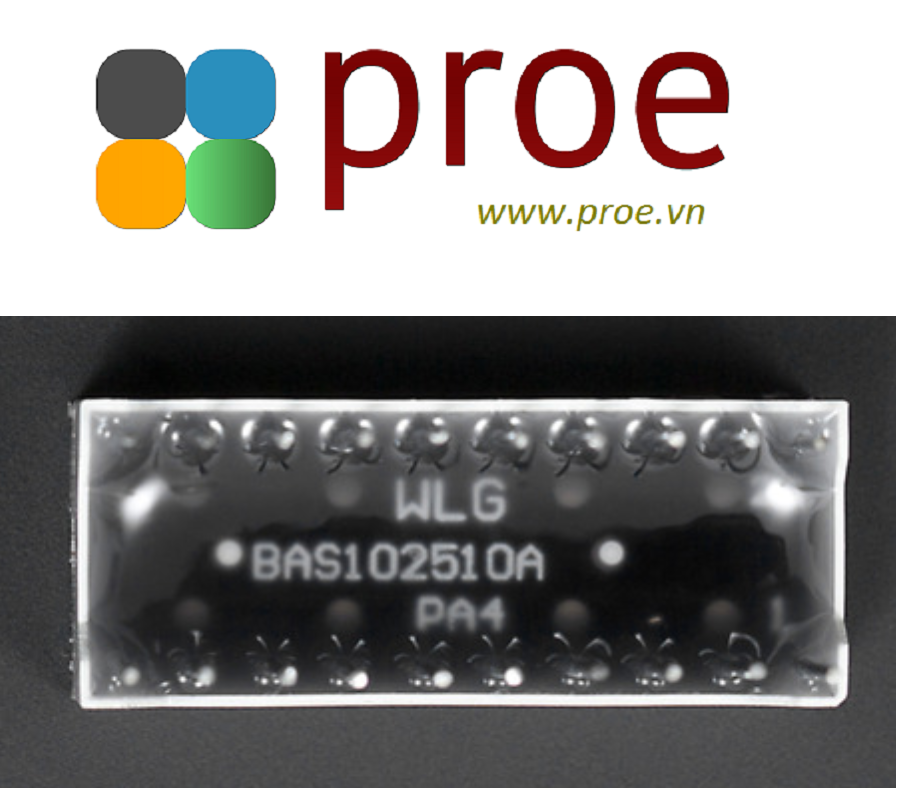

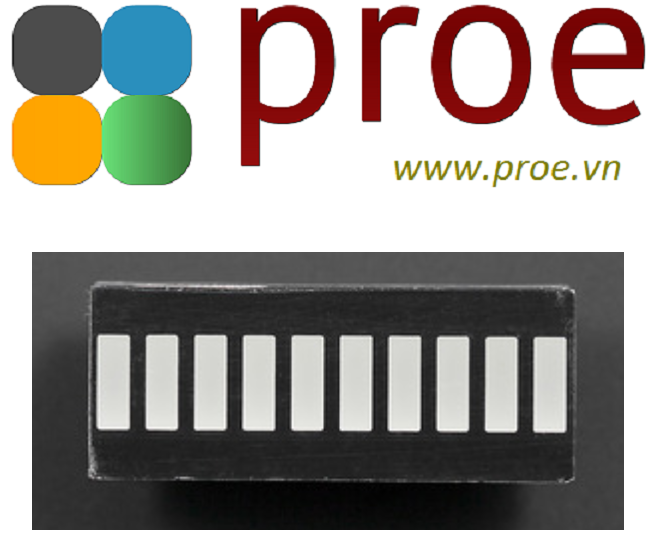

10 Segment LED Bar Graph - Red

NTRODUCTION

These 10 segment bar graph LEDs have many uses. With a compact footprint, and a simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual red LEDs housed together.

APPLICATIONS

• Audio equipment
• Instrument panels
• Digital readout display
• Signal strength display
• Power status display
• Art display

SPECIFICATION

• Forward Current (Per Segment): 25mA
• Max Reverse Voltage: 5v
• 10 segment bar
• Color: Super Bright Red
• Industrial standard size
• Low power consumption
• Categorized for luminous intensity

DOCUMENTS

• Wiki Doc
• Arduino Sample code
• Datasheet
• Arduino Project

SHIPPING LIST

• 10 segment led bar graph - Red x1
