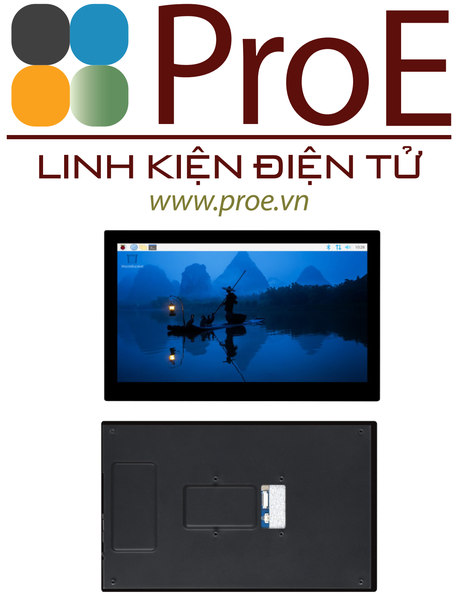

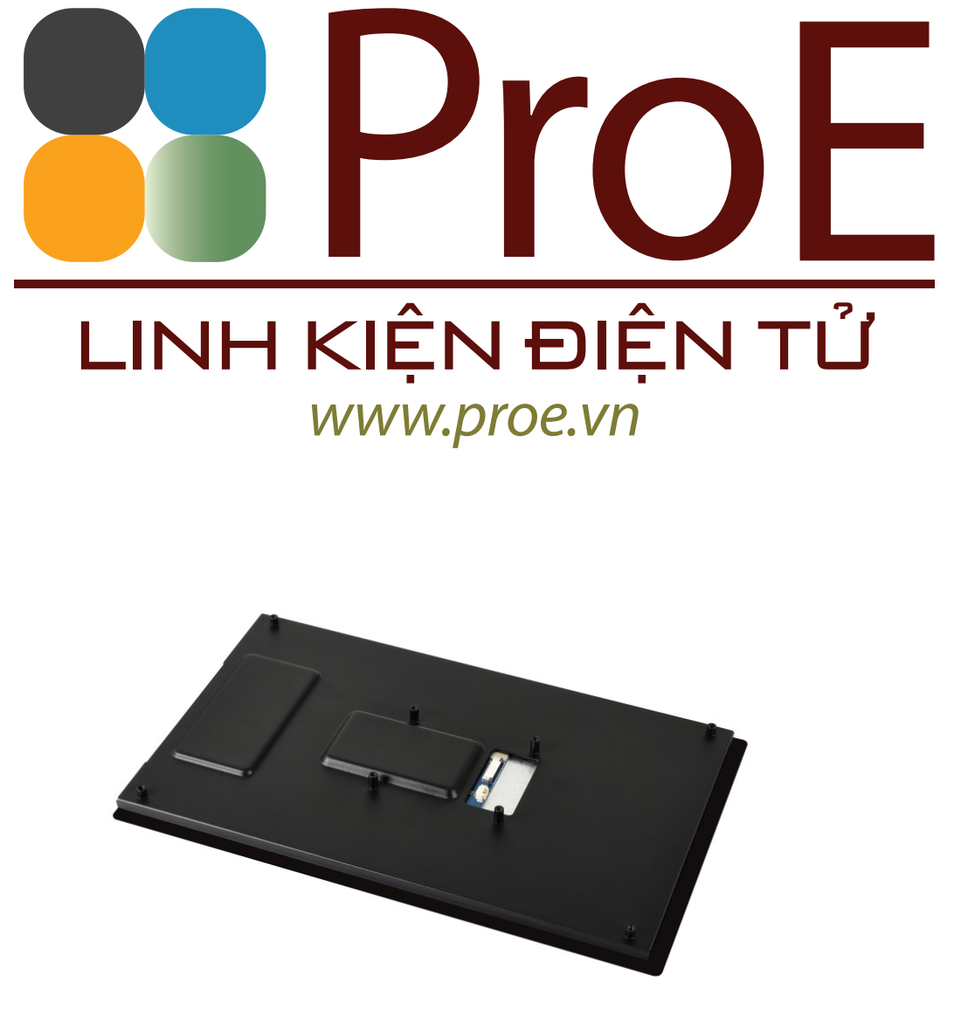

10.1-DSI-TOUCH-B

10.1inch DSI Capacitive Touch Display, Wide Color Gamut, 720 × 1280, IPS Panel, Supports 10-Point Touch, Toughened Glass Panel

10.1″ Wide Color Gamut DSI Touch Display

• Size10.1″
• Resolution720 × 1280
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PanelToughened Glass
• Touch PortI2C
• Brightness400cd/㎡

The display orientation is portrait by default, with 720 × 1280 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch

RK3576

Supports Buildroot / Debian / Ubuntu / Android and other systems, 10-point touch

RK3506

Supports Buildroot / Ubuntu and other systems, 10-point touch

ESP32-P4

Supports LVGL GUI programs, 10-point touch

connection examples

Connecting to Raspberry Pi 5

* Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

Connecting to Raspberry Pi 4B

* Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

Connecting to ESP32-P4-NANO

Connecting to Luckfox Omni3576

Connecting to Luckfox Lyra

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

Wide Color Gamut LED technology

Wider Color Gamut, More Pure Chroma

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

interface definition

Supports backlight adjustment via software

outline dimensions

Support touch screen customization

Resources & Services

Wiki: www.waveshare.com/wiki/10.1-DSI-TOUCH-B

Weight: 0.623 kg

1. 10.1-DSI-TOUCH-B ×1
2. MIPI-DSI-Cable-12cm x1
3. MX 1.25 2PIN to 2.54 3PIN cable x1
4. FFC 22PIN cable ~200mm (opposite sides) x2
5. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
6. Screws pack x1
