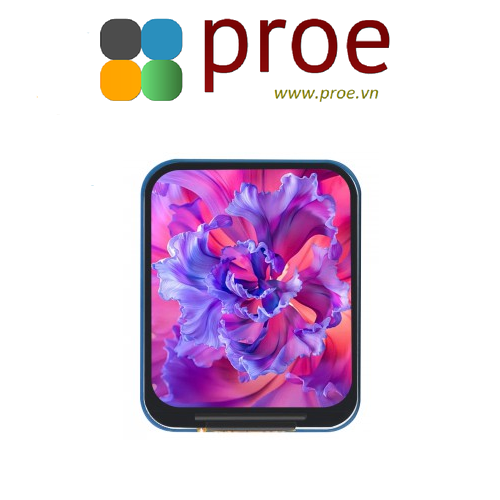

1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS, 262K Colors
- Mã sản phẩm: 1.69inch LCD Module
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
220.000₫
1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS, 262K Colors

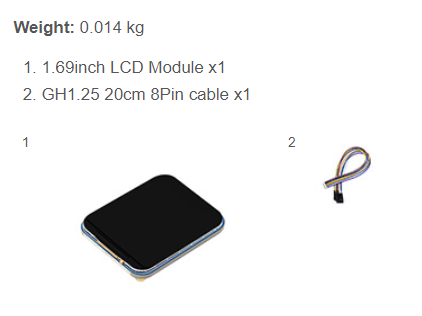

PACKAGE CONTENT
1.69inch LCD Display Module
Embedded ST7789V2 Driver Chip, Using SPI Interface
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Size
1.69"
Resolution
240×280
Display Color
262K
Interface
SPI
Display Panel
IPS
Driver
ST7789V2
Features At A Glance
240×280 resolution, 262K colors, clear and colorful displaying effect SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32 Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 240 × 280 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 27.97 × 32.63mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.11655 × 0.0.11655mm |
| DRIVER | ST7789V2 | MODULE SIZE | 31.50 × 39.00mm |
Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input
Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / Arduino / STM32
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Hardware Connection
Connecting with Raspberry Pi
Connecting with Arduino board
Connecting with STM32
Usage Example
Product Show
Outline Dimensions
